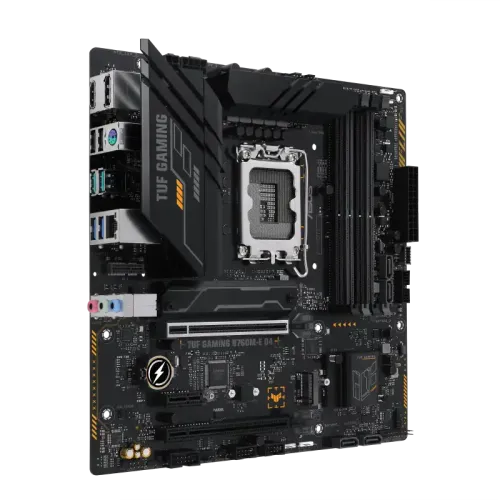

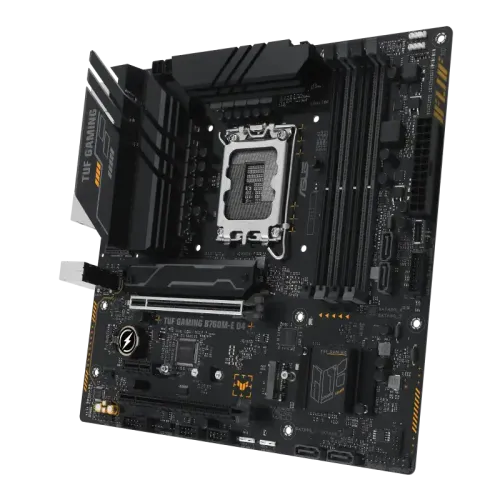

Asus TUF GAMING B760M-E D4 mATX Motherboard

Name: Asus TUF GAMING B760M-E D4 mATX Motherboard
Brand: Asus
Price: 25000 BDT
Availability: OutOfStock

Model: TUF GAMING B760M-E D4Item #: asus-tuf-gaming-b760m-e-d4-motherboard

৳25,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Chipset
5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II RAM type
mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Overview

The Asus TUF GAMING B760M-E D4 Motherboard combines all of the core characteristics of the newest Intel CPUs with game-ready features and proven durability. This motherboard exceeds expectations with rock-solid performance for marathon gaming, thanks to military-grade components, an enhanced power solution, and a sophisticated cooling system. TUF GAMING motherboards are also subjected to extensive durability testing to guarantee that they can withstand situations that might cause other motherboards to fail. This model features an embossed nameplate and geometric design elements to symbolize the reliability and stability that is synonymous with the TUF GAMING line. The 14th Gen Motherboard have versatile tools for tuning every area of your system, allowing expert performance modifications to match the way you play. The Power Saving feature has several options that allow you to simply control power use and maximize energy savings. You may enable a CPU power restriction, dim the Aura lighting, and change the fan profile to power-saving mode. You can also enable or disable Microsoft Windows' Power Saving strategy. The ASUS TUF GAMING B760M-E D4 is the ideal foundation for your next Intel battle rig, with upgraded power delivery and comprehensive cooling options to power the latest Intel CPUs, as well as support for DDR4 memory and PCIe 4.0 storage. 12+1 power stages combine high-side and low-side MOSFETs and drivers into a single package to deliver power, efficiency, and stable performance for all compatible Intel processors.

Buy Asus TUF GAMING B760M-E D4 mATX Motherboard from the best Motherboard Shop in BD

Specifications

Chipset: Intel B760 Chipset
RAM type: 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
Form factor: mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Memory — Type: DDR4
Memory — Slots: 4 x DIMM
Highlights — Model: TUF GAMING B760M-E D4
Graphics — Graphics: 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.); 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Expansion Slots — PCI: Intel 13th & 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot

Show all 26 specifications

Highlights — Features: 1 x Realtek 2.5Gb Ethernet
Memory — Maximum Memory: Max. 128GB
Basic Information — BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection,; Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Connector & Ports — Audio: 3 x Audio jacks
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - AURA Creator; - AURA Sync; - Fan Xpert 2+; - Power Saving; - Two-Way AI Noise Cancelation; AI Suite 3; - DIGI+ VRM; - PC Cleaner; TUF GAMING CPU-Z; DTS Audio Processing; Norton 360 for Gamers (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode;
Others — Special Features: ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - ProCool; - SafeDIMM; AURA Sync; - AURA RGB header; - Addressable Gen 2 headers

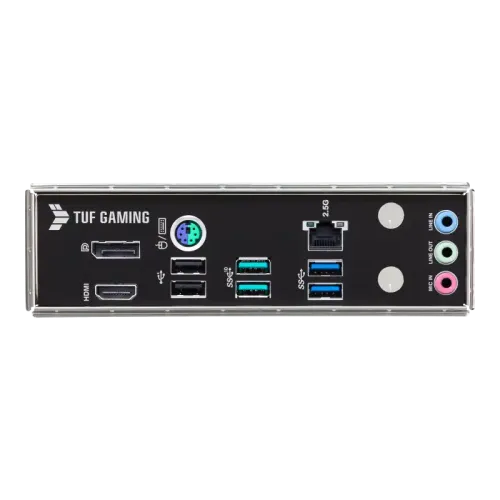

Connector & Ports — USB (s): Rear USB (Total 6 ports); 2 x USB 3.2 Gen 2 (10G) ports(2 x Type-A); 2 x USB 3.2 Gen1 (5G) ports(2 x Type-A)*; 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports*; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
Highlights — Graphics Output: 1 x DisplayPort, 1 x HDMI
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
Basic Information — Supported CPU: Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors*; Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
Connector & Ports — Internal I/O Ports: Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x AURA RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x S/PDIF Out header;
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Vertical M.2 slot only (Key E, CNVi & PCIe)*; * Wi-Fi module is sold separately.
