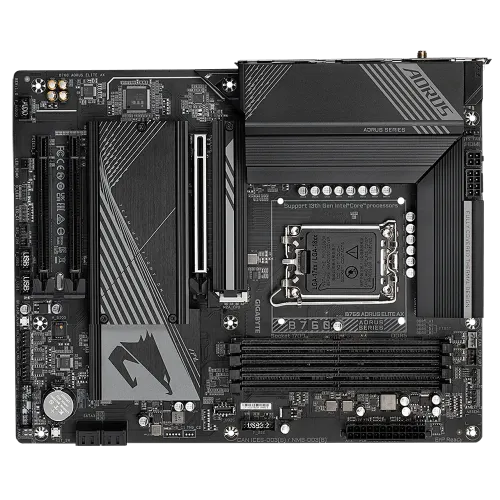

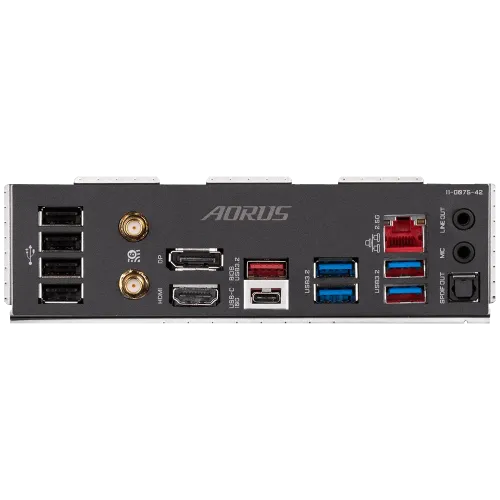

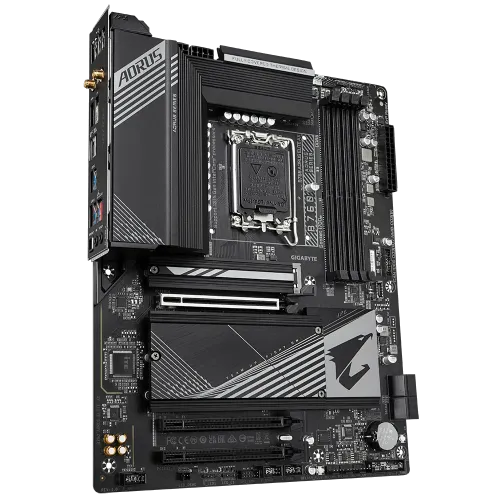

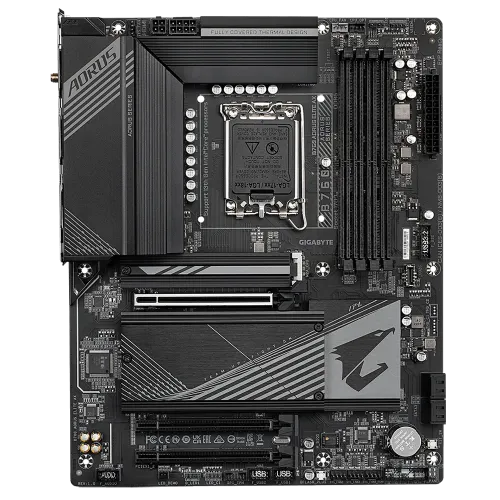

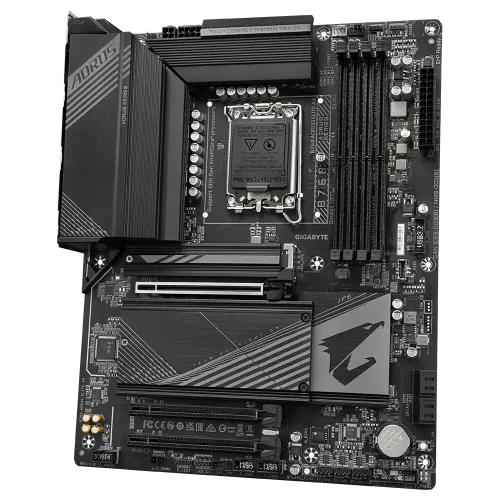

Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard

Name: Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard
Brand: GIGABYTE
Price: 25000 BDT
Availability: OutOfStock

Model: B760 AORUS ELITE AXItem #: gigabyte-b760-aorus-elite-ax-motherboard

৳25,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
ATX Form Factor; 30.5cm x 24.4cm

Overview

The GIGABYTE B760 AORUS ELITE AX Motherboard is designed for Intel Socket LGA 1700, providing support for 13th and 12th Gen Series Processors. With its Twin 12*+1+1 Phases Digital VRM Solution, the motherboard offers unparalleled performance and stability. The Dual Channel DDR5 with 4 SMD DIMMs and XMP 3.0 Memory Module support ensures efficient and reliable memory capabilities. The GIGABYTE B760 AORUS ELITE AX motherboard is equipped with 3 PCIe 4.0 x4 M.2 Connectors for next-generation storage compatibility, along with an Advanced Thermal Design and M.2 Thermal Guard to maintain VRM power stability and optimal M.2 SSD performance. Its EZ-Latch Plus features M.2 Connectors with Quick Release and Screwless Design for easy hardware installation. For networking, the motherboard offers both 2.5GbE LAN and Wi-Fi 6E 802.11ax, ensuring fast and reliable connectivity. With extended connectivity options such as Rear and Front USB-C® 10Gb/s, DP, and HDMI ports, the 14th Gen Motherboard caters to various connectivity needs. The Smart Fan 6 technology, featuring multiple temperature sensors and hybrid fan headers with FAN STOP, enhances cooling performance. Additionally, the Q-Flash Plus feature allows for BIOS updates without the need to install the CPU, memory, and graphics card, offering convenience and ease of use.

Specifications

Chipset: Intel B760 Express Chipset
RAM type: Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: ATX Form Factor; 30.5cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4
Highlights — Model: B760 AORUS ELITE AX
Graphics — Graphics: Integrated Graphics Processor-Intel HD Graphics support:; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3.; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3
Expansion Slots — PCI: CPU:; 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Show all 28 specifications

Highlights — Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax
Memory — Maximum Memory: up to 192 GB (48 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out;
Connector & Ports — Audio: 2 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
Connector & Ports — USB (s): Chipset:; 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header); 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; 2 x USB 3.2 Gen 1 ports available through the internal USB header; Chipset+USB 3.2 Gen 1 Hub:; 4 x USB 3.2 Gen 1 ports on the back panel; Chipset+2 USB 2.0 Hubs:; 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with CPU
Connector & Ports — Display Port (s): 1x DisplayPort
Connector & Ports — Supported Storage: CPU:; 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB); 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x reset button; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Intel Wi-Fi 6E AX211 (For PCB rev. 1.0); WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate; Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1); WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate;
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
