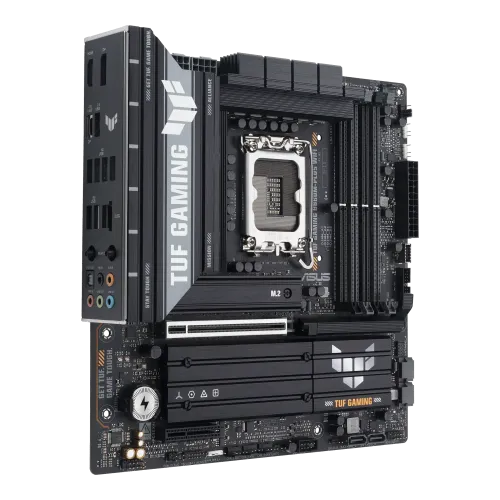

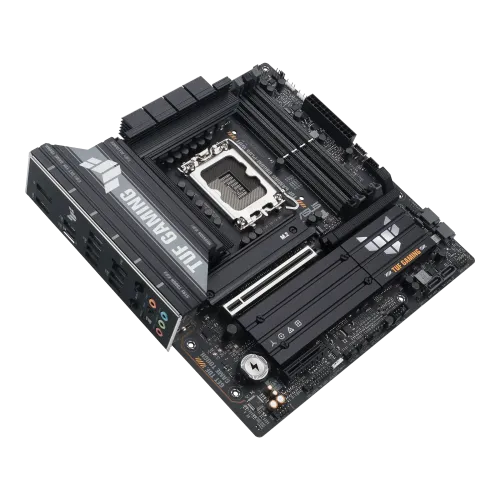

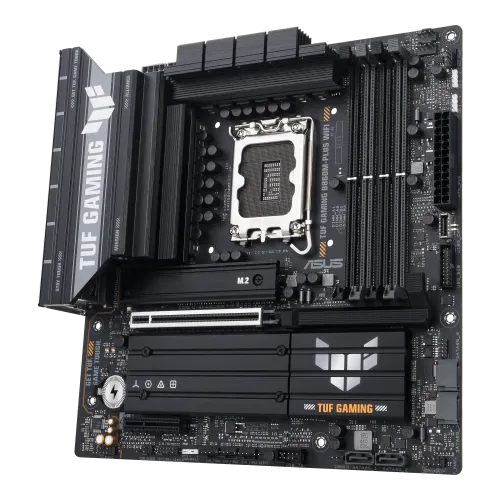

Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard

Name: Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard
Brand: Asus
Price: 33200 BDT
Availability: InStock

Model: TUF GAMING B860M-PLUS WIFIItem #: asus-tuf-gaming-b860m-plus-wifi-motherboard

৳33,200~~৳33,500~~Save 1%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

INTEL B860 Chipset
3 M.2 slots
4 x DIMM slots, max. 256GB, DDR5; Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual Channel Memory Architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII) RAM type
mATX Form Factor; 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Overview

Asus TUF GAMING B860M-PLUS WIFI LGA 1851 ATX Motherboard

The Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard is designed for gamers and PC enthusiasts who want exceptional performance and dependability. This Asus TUF GAMING B860M-PLUS WIFI motherboard, powered by the Intel B860 chipset, supports Intel Core Ultra Processors Series 2 on the LGA 1851 socket, resulting in a smooth and efficient performance for gaming and productivity. The Asus TUF GAMING B860M-PLUS WIFI Motherboard supports up to 256GB of DDR5 memory over four DIMM slots and can overclock memory speeds to 8800MT/s, delivering peak system performance for demanding tasks. For graphics, the Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard includes DisplayPort and HDMI ports, both supporting 4K at 60Hz, along with a USB 20Gbps Type-C port for high-quality video output. This Asus TUF GAMING B860M-PLUS WIFI motherboard also offers PCIe 5.0 x16 and PCIe 4.0 x4 slots, making it ideal for future-proof expansion with the latest graphics cards and peripherals. The Asus TUF GAMING B860M-PLUS WIFI Motherboard features 3 M of storage. Two slots with PCIe 5.0 x4 compatibility and four SATA 6Gb/s connections ensure quick and versatile storage solutions. The Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard has Wi-Fi 7 2x2 and Bluetooth v5.4, providing enhanced wireless connectivity for uninterrupted gaming and streaming. The Asus TUF GAMING B860M-PLUS WIFI motherboard provides unrivaled endurance with TUF LANGuard, ESD Guards, and overvoltage protection. The Asus TUF GAMING B860M-PLUS WIFI Motherboard, which has Aura Sync RGB lighting and an easy UEFI BIOS with CrashFree BIOS 3, is ideal for consumers looking for excellent performance in a small Micro-ATX form factor.

Specifications

Chipset: INTEL B860
M.2 slots: 3
RAM type: 4 x DIMM slots, max. 256GB, DDR5; Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual Channel Memory Architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII)
Form factor: mATX Form Factor; 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Memory — Type: DDR5
Memory — Slots: 4
Highlights — Model: TUF GAMING B860M-PLUS WIFI
Graphics — Graphics: 1 x DisplayPort; 1 x HDMI port ; 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output; Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; Supports max. 4K@60Hz as specified in DisplayPort 1.4.; Supports 4K@60Hz as specified in HDMI 2.1.; Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Show all 28 specifications

Expansion Slots — PCI: Intel® CoreTM Ultra Processors(Series 2)*; 1 x PCIe 5.0 x16 slot; Intel® B860 Chipset; 1 x PCIe 4.0 x4 slot
Highlights — Features: 3x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4
Memory — Maximum Memory: Maximum Memory Capacity 256GB
Basic Information — BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1x HDMI 2.1
Connector & Ports — RAID: SATA RAID 0/1/5/10
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback
Connector & Ports — Audio: 5 x Audio jacks
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - AURA Creator; - AURA Sync; - Fan Xpert 2+; - Power Saving; ASUS DriverHub; ASUS GlideX; TurboV Core; TUF GAMING CPU-Z; DTS Audio Processing; Norton 360 for Gamers (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey; NPU Boost
Others — Special Features: ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards ; - TUF LANGuard; - Overvoltage Protection; - SafeSlot ; - Stainless-Steel Back I/O; ASUS Q-Design ; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-Antenna; - Q-Dashboard; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); ASUS Thermal Solution; - M.2 heatsinks; - VRM heatsink design; ASUS EZ DIY; - CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeDIMM; AURA Sync; - Addressable Gen 2 headers
Highlights — Supported RAM: 4x DDR5, Max 256GB, 8800+MT/s (OC)
Connector & Ports — USB (s): Rear USB (Total 8 ports); 1 x USB 20Gbps port (1 x USB Type-C®); 2 x USB 10Gbps ports (2 x Type-A); 3 x USB 5Gbps ports (3 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 5 ports); 1 x USB USB 10Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; USB Type-C® power delivery output: max. 5V/3A
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort, 1x USB (20Gbps)
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
Basic Information — Supported CPU: Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Connector & Ports — Display Port (s): 1x DisplayPort 1.4a
Connector & Ports — Supported Storage: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® Core™ Ultra Processors(Series 2)*; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); Intel® B860 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports

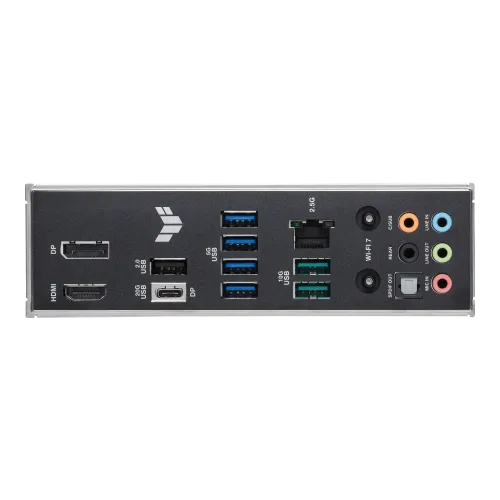

Connector & Ports — Internal I/O Ports: I/O Connectors Fan and Cooling related ; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related ; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; Storage related ; 3 x M.2 slots (Key M) ; 4 x SATA 6Gb/s ports; USB ; 1 x USB 10Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x Front panel audio header (F_AUDIO); 1 x 10-1 pin Front System Panel header; 1 x Thunderbolt™ (USB4®) header; ; Back Panel I/O Ports: ; ; 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode); 2 x USB 10Gbps port (2 x Type-A); 4 x USB 5Gbps ports (4 x Type-A); 1 x USB 2.0 port (1 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port
Warranty Information — Manufacturing Warranty: 3 Year warranty
Connector & Ports — Wireless Communication module: Wi-Fi 7; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band; Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.; Bluetooth® v5.4; *Wi-Fi features may vary depending on the operating system; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

Compare with similar products

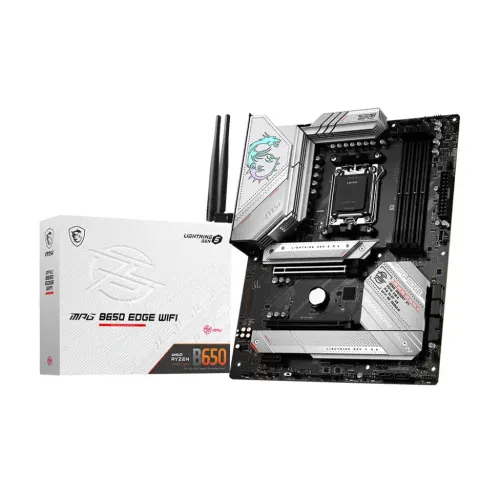

	This itemAsus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard	MSIMSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard	GIGABYTEGIGABYTE Z790 GAMING X AX ATX Motherboard	MSIMSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard
Price	৳33,200	৳33,000	৳33,000	৳33,200
Availability	In stock	In stock	Out of stock	In stock
Brand	Asus	MSI	GIGABYTE	MSI
M.2 slots	3	3	—	—
RAM type	4 x DIMM slots, max. 256GB, DDR5; Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual Channel Memory Architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII)	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	Memory Support DDR5 6600+(OC)/ 6400(OC)/ ; 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max. speed up to 6600+ MHz; • 1DPC 2R Max. speed up to 6000+ MHz; • 2DPC 1R Max. speed up to 6400+ MHz; • 2DPC 2R Max. speed up to 4000+ MHz; ; Support Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO
Form factor	mATX Form Factor; 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )	ATX; 243.84mmx304.8mm	ATX Form Factor; 30.5cm x 24.4cm	ATX; 243.84mmx304.8mm
Chipset	INTEL B860	AMD B850	Intel Z790 Express Chipset	AMD B650
