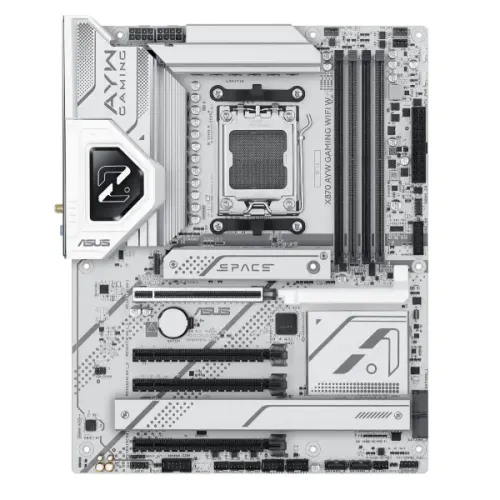

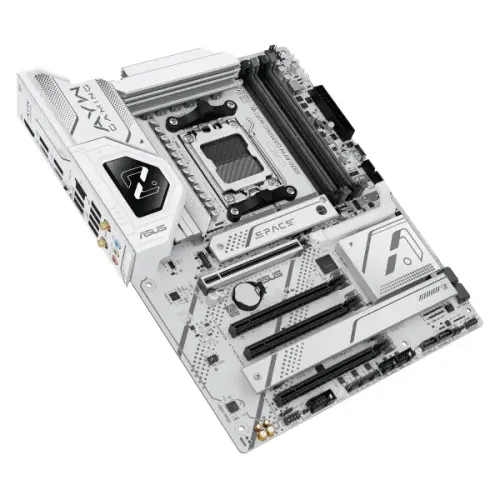

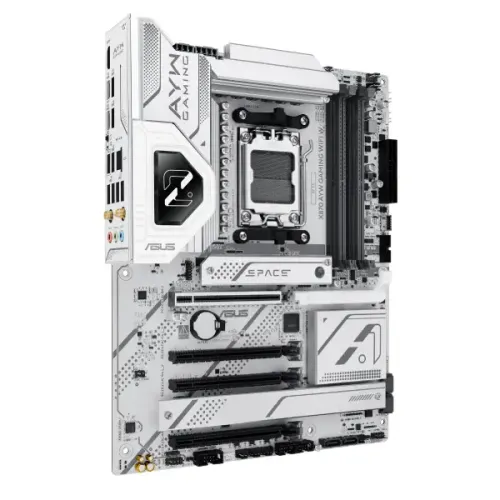

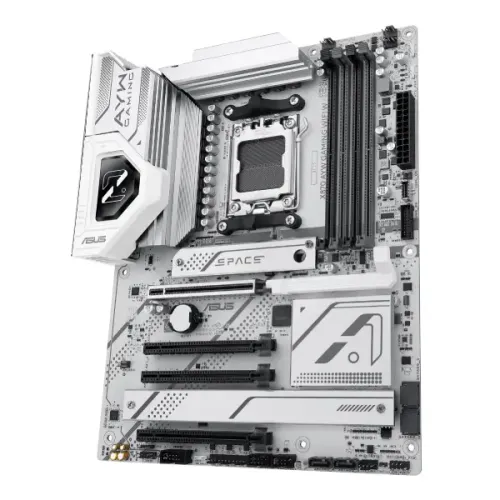

Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard

Name: Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Brand: Asus
Price: 45800 BDT
Availability: InStock

Model: X870 AYW GAMING WIFI WItem #: asus-x870-ayw-gaming-wifi-w-motherboard

৳45,800~~৳46,500~~Save 2%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870 Chipset
9000 M.2 slots
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP) RAM type
ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Overview

The Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard is a powerhouse platform engineered for high-end gaming and content creation. Built on the latest AMD X870 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket, delivering top-tier performance and future-ready features. This Asus X870 AYW GAMING WIFI W Motherboard supports up to 256GB of DDR5 RAM across four DIMM slots, with overclocking capabilities reaching 8000+ MT/s, along with ECC/Non-ECC support, dual-channel architecture, AMD EXPO, and ASUS AEMP profiles for enhanced memory tuning. For graphics, the Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard provides an HDMI 2.1 port and two USB4 Type-C ports supporting up to 4K@60Hz output, depending on CPU specifications. Expansion options include a PCIe 5.0 x16 slot for Ryzen 9000/7000 CPUs, additional PCIe 4.0 and 3.0 slots, and three M.2 slots (PCIe 5.0 & 4.0), along with four SATA 6Gb/s ports. RAID configurations are supported via AMD RAIDXpert2, including RAID 0/1/5/10 for Ryzen 9000 processors. This Asus X870 AYW GAMING WIFI W motherboard offers comprehensive connectivity, including 2 x USB4 (40Gbps), 10 rear USB ports, 7 front USB ports (with a USB 20Gbps Type-C supporting 30W PD fast-charging), and Realtek 2.5Gb Ethernet. Wireless features include Wi-Fi 6 with 2.4/5GHz support and Bluetooth 5.2. Audiophiles will appreciate the premium Realtek 7.1 Surround Sound High Definition Audio CODEC, which supports 24-bit/192kHz playback, audio shielding, and premium capacitors. Internally, the Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard features multiple fan headers, addressable RGB Gen 2 headers, SPI TPM, S/PDIF out, and front audio connectors. ASUS-exclusive features like Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-LEDs), 5X Protection III (DIGI+ VRM, SafeSlot, LANGuard), and pre-mounted I/O shield enhance durability and ease of installation. The motherboard supports advanced cooling via VRM and M.2 heatsinks, while Fan Xpert 4 offers AI-powered thermal control. With Aura Sync RGB, BIOS Flashback, and bundled software like Armoury Crate, Aura Creator, ASUS DriverHub, and more, the Asus X870 AYW GAMING WIFI W Motherboard is the ultimate choice for gamers and PC enthusiasts seeking performance, reliability, and customization.

Specifications

Chipset: AMD X870 Chipset
M.2 slots: 9000
RAM type: Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP)
Form factor: ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: X870 AYW GAMING WIFI W
Graphics — Graphics: 1 x HDMI port; 2 x USB4® (40Gbps) ports support USB Type-C® display outputs; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports 4K@60Hz as specified in HDMI 2.1. ; *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.; *** VGA resolution support depends on processors' or graphic cards' resolution.

Show all 27 specifications

Expansion Slots — PCI: AMD Ryzen 9000 & 7000 Series Desktop Processors; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD X870 Chipset; 2 x PCIe 4.0 x16 slots (support x1 mode); 1 x PCIe 3.0 x16 slot (supports x1 mode)
Highlights — Features: Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound
Memory — Maximum Memory: 256GB
Basic Information — BIOS: 256 Mb Flash ROM, UEFI AMI BIOSc
Connector & Ports — HDMI: 1x HDMI 2.1
Connector & Ports — RAID: AMD RAIDXpert2 Technology; Ryzen 9000 Series Processors: RAID 0/1/5/10; Ryzen 8000 Series Processors: RAID 0/1; Ryzen 7000 Series Processors: RAID 0/1/10
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Connector & Ports — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 4 (with AI Cooling II); - Power Saving; ASUS DriverHub; ASUS GlideX; TurboV Core; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-Dashboard; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsinks; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - ProCool; - Pre-mounted I/O shield; - SafeSlot; Aura Sync; - Addressable RGB Gen 2 headers

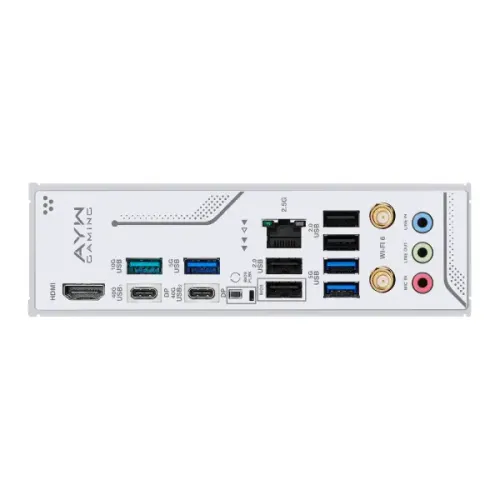

Connector & Ports — USB (s): Rear USB (Total 10 ports); 2 x USB4 (40Gbps) ports (2 x USB Type-C); 1 x USB 10Gbps port (1 x Type-A); 3 x USB 5Gbps ports (3 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Highlights — Graphics Output: 1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet
Basic Information — Supported CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Connector & Ports — Supported Storage: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode); AMD X870 Chipset; M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; * 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required.; * PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.; ** Specifications vary by CPU types.
Connector & Ports — Internal I/O Ports: Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Wi-Fi 6; 1x1 Wi-Fi 6 (802.11ax); Supports 2.4/5GHz frequency band; Bluetooth v5.2
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1 pin)

Compare with similar products

	This itemAsus X870 AYW GAMING WIFI W AM5 ATX Motherboard	MSIMSI MAG X870 TOMAHAWK WIFI AM5 Motherboard	AsusAsus ROG STRIX B650E-F GAMING WIFI DDR5 AM5 ATX Motherboard	AsusAsus ROG STRIX B850-F GAMING WIFI AM5 ATX Motherboard
Price	৳45,800	৳45,600	৳45,700	৳46,000
Availability	In stock	Out of stock	Out of stock	Out of stock
Brand	Asus	MSI	Asus	Asus
M.2 slots	9000	—	—	2
RAM type	Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP)	Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*	6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO); OptiMem II	2 x DIMM slots, max. 128GB, DDR5; Supports up to 8400+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)
Form factor	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	ATX; 304.8mmx243.84mm	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	Mini-ITX Form Factor; 6.7 inch x 6.7 inch (17 cm x 17 cm)
Chipset	AMD X870 Chipset	AMD X870	AMD B650	AMD B850
