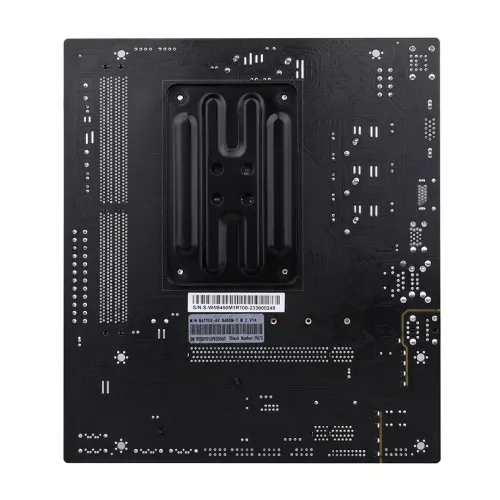

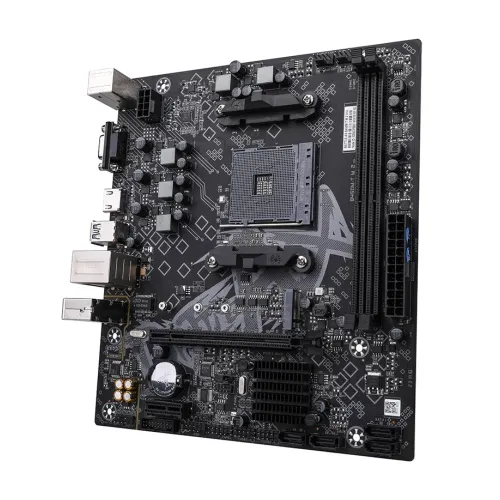

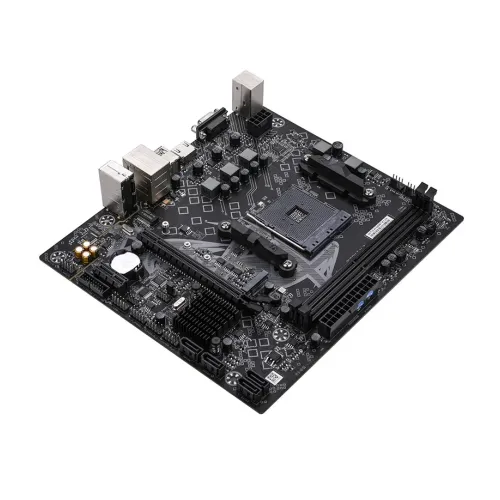

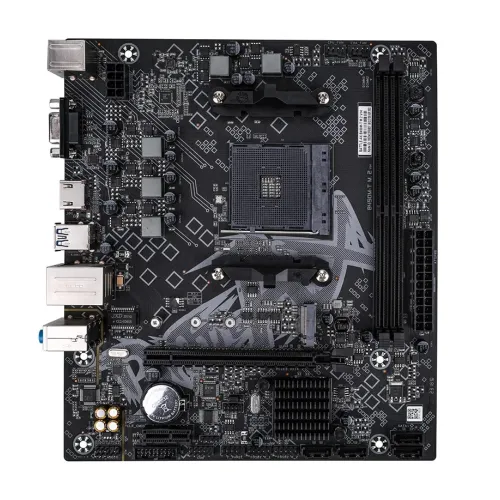

Colorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard
Model: BATTLE-AX B450M-T M.2 V14Item #: colorful-battle-ax-b450m-t-m-2-v14-motherboard
৳7,100
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B450 Chipset
- 1 M.2 slots
- Supports DDR4-3600 (OC)/3200 (OC)/3000 (OC)/2933 (OC)/2800 (OC)/2666/2400/2133 MHz memory; Supports Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology RAM type
- M-ATX; 220mmx195 mm Form factor
Overview
The Colorful BATTLE-AX B450M-T M.2 V14 AM4 Motherboard is based on the AMD B450 chipset. It supports Ryzen series CPUs via the AM4 socket, making it an excellent choice for gaming, productivity, and everyday computing. This Colorful BATTLE-AX B450M-T M.2 V14 mATX motherboard features two DDR4 memory slots that support up to 64GB of memory and speeds ranging from 2133 MHz to an impressive 3600 MHz (OC). It also supports XMP profiles and dual-channel memory technologies, allowing customers more flexibility and performance control. The colorful BATTLE-AX B450M-T M.2 V14 Motherboard has one M.2 slot for PCIe 3.0 x4 NVMe SSDs and four SATA 6Gb/s ports, providing many fast storage options for current configurations. This Colorful Motherboard's rear I/O layout is designed for convenience, with four USB 2.0 ports, two USB 3.2 Gen 1 Type-A ports, HDMI 2.0 with up to 4K 60Hz output, VGA, a Gigabit Ethernet port, PS/2 support, and three audio jacks powered by the Realtek ALC897 codec with 5.1-channel audio. Users will find many extension and connectivity options inside, as well as a colorful BATTLE-AX B450M-T M.2 V14 Motherboard with CPU and system fan pins, USB headers, a COM port pin, front panel audio, debug lights, and a clear CMOS jumper. The motherboard also has a PCIe 3.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for extra devices. The Colorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard, with its 128M UEFI BIOS that supports different languages, provides easy tuning and dependable power management. Its features, including wake-on-LAN, USB wake-up, and system monitoring, make it a reliable choice for both home and office builds. This Colorful Motherboard's mATX design, which measures 220mm x 195mm, makes it ideal for tiny yet powerful computers.
Specifications
- Chipset
- AMD B450
- M.2 slots
- 1
- RAM type
- Supports DDR4-3600 (OC)/3200 (OC)/3000 (OC)/2933 (OC)/2800 (OC)/2666/2400/2133 MHz memory; Supports Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology
- Form factor
- M-ATX; 220mmx195 mm
- Memory — Type
- DDR4
- Memory — Slots
- 2 x DIMM;
- Highlights — Model
- BATTLE-AX B450M-T M.2 V14
- Expansion Slots — PCI
- 1 PCIe 3.0 x16 slot; 1 PCIe 3.0 x1 slot
Show all 24 specificationsShow fewer
- Highlights — Features
- 1x M.2 slot, 1x RTL8111H Gigabit Ethernet Card
- Memory — Maximum Memory
- Up to 64GB of memory (a single socket can support up to 32 GB of memory)
- Basic Information — BIOS
- 128M UEFI, support multiple languages
- Connector & Ports — HDMI
- 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
- Basic Information — Audio
- Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels
- Connector & Ports — Audio
- Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
- Others — Special Features
- Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot; Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
- Highlights — Supported RAM
- 2x DDR4 Up to 3600(OC) Max. 64GB
- Connector & Ports — USB (s)
- 4×USB 2.0 interfaces; 2×USB 3.2 Gen 1 Type-A interfaces
- Connector & Ports — VGA (s)
- 1×VGA interface
- Highlights — Graphics Output
- 1x HDMI 2.0, 1x VGA
- Connector & Ports — LAN Port (s)
- 1×Gigabit network interface; RTL8111H Gigabit Ethernet Card
- Basic Information — Supported CPU
- Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard
- Connector & Ports — Supported Storage
- 1x M.2 slot and 4 SATA 6Gb/s hard drive interfaces; M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel)
- Connector & Ports — Internal I/O Ports

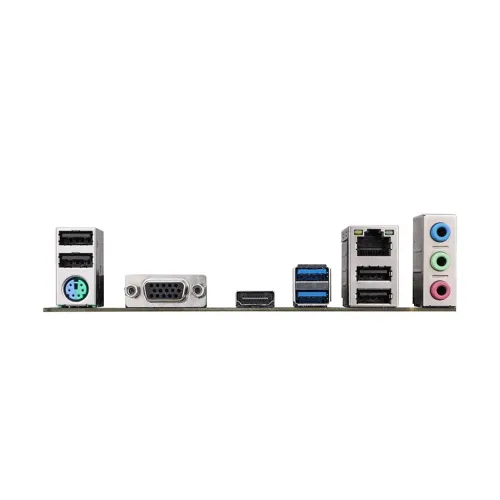

- Rear I/O:; -4×USB 2.0 interfaces; -2×USB 3.2 Gen 1 Type-A interfaces; -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution; -1×VGA interface; -1×PS/2 interface; -1×Gigabit network interface; -3×Audio interfaces (audio input/output/microphone); On board :; -1×CPU fan pin; -1×System fan pin; -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces; -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces; -1×Front audio pin; -1×Front panel pin; -1×Speaker pin; -1×COM port pin; -1×Clear CMOS jumper; -1×Debug light pin
- Warranty Information — Manufacturing Warranty
- 03 years
Compare with similar products
 This itemColorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard |  XENTHRAXENTHRA XN-H311M-VH-PRO Intel 9th Gen mATX Motherboard |  ASRockASRock A520M-HVS AMD AM4 Micro ATX Motherboard |  XENTHRAXENTHRA XN-B450M-VH-PRO AMD AM4 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳7,100 | ৳6,550 | ৳6,800 | ৳7,200 |
| Availability | Out of stock | In stock | In stock | In stock |
| Brand | Colorful | XENTHRA | ASRock | XENTHRA |
| M.2 slots | 1 | 1 | — | 1 |
| RAM type | Supports DDR4-3600 (OC)/3200 (OC)/3000 (OC)/2933 (OC)/2800 (OC)/2666/2400/2133 MHz memory; Supports Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology | Up to DDR4 2666 MHz | Dual Channel DDR4 Memory Technology; AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; Supports Extreme Memory Profile (XMP) memory modules; 15μ Gold Contact in DIMM Slots; | Up to DDR4 3200 MHz |
| Form factor | M-ATX; 220mmx195 mm | Micro-ATX (180 mm x 216 mm) | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm; Solid Capacitor design | Micro-ATX (180 mm x 216 mm) |
| Chipset | AMD B450 | Intel H110 Express Chipset | AMD A520 | AMD B450 Chipset |
