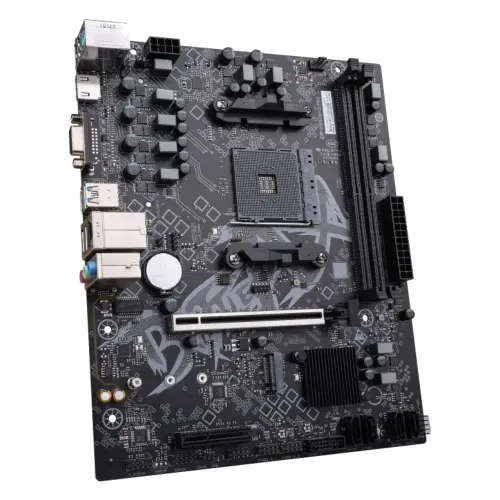

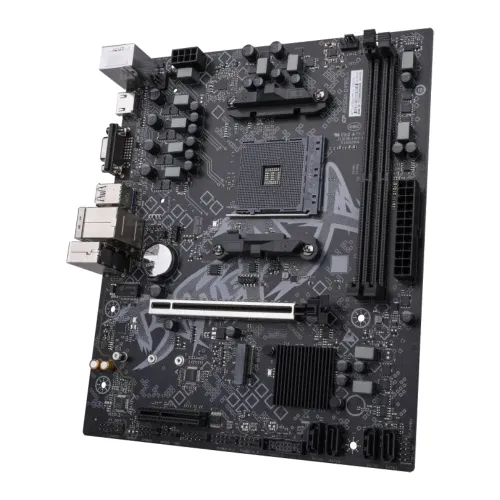

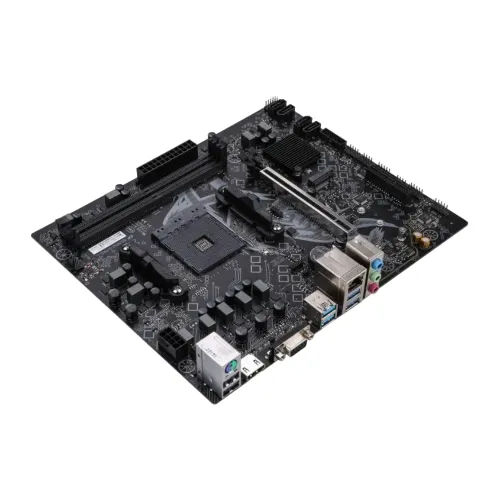

Colorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard
Model: BATTLE-AX B550M-D PRO V14Item #: colorful-battle-ax-b550m-d-pro-v14-motherboard
৳10,000৳11,500Save 13%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B550M Chipset
- Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory; Support Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology RAM type
- M-ATX; 197mm x 240mm Form factor
Overview
The Colorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard is a reliable Colorful Motherboard designed for AMD Ryzen processors with the AM4 socket, offering a strong balance of performance, connectivity, and durability for gaming and productivity builds. Built on the AMD B550 chipset, this Colorful AMD motherboard supports DDR4 memory up to 64GB with speeds reaching 3600MHz (OC), ensuring smooth multitasking and responsive system performance. As a compact micro-ATX board, the Colorful 550 motherboard fits easily into smaller cases while still providing robust expansion options, including a PCIe 4.0 x4 M.2 slot for high-speed SSDs, multiple SATA ports, and support for modern GPUs. Networking is reliable with a Realtek 2.5G LAN card, while the rear I/O offers HDMI 1.4 and VGA outputs along with four USB 3.2 Gen 1 Type-A ports for fast data transfer. The Colorful BATTLE-AX B550M-D PRO V14 Motherboard also integrates six major protection technologies and undergoes over 200 strict testing processes to guarantee stability and long-term reliability, while its upgraded PCB atomization process enhances durability. With its combination of DDR4 support, PCIe 4.0 storage expansion, 2.5G LAN connectivity, HDMI and VGA display options, and compact mATX design, this Colorful 850 motherboard delivers excellent value for gamers, creators, and PC enthusiasts seeking a dependable foundation for their AMD system.
Specifications
- Chipset
- AMD B550M
- RAM type
- Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory; Support Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology
- Form factor
- M-ATX; 197mm x 240mm
- Memory — Type
- Dual Channel DDR4 Memory Technology
- Memory — Slots
- 2 x DIMM;
- Highlights — Model
- BATTLE-AX B550M-D PRO V14
- Expansion Slots — PCI
- 1×PCIe 4.0 x16 slot; 1×PCIe 3.0 x4 slot
- Highlights — Features
- 1×2.5G LAN (RTL8125 2.5Gbit LAN)
Show all 19 specificationsShow fewer
- Memory — Maximum Memory
- 64GB of memory (a single socket can support up to 32 GB of memory)
- Basic Information — BIOS
- 128M UEFI, support multiple languages
- Connector & Ports — HDMI
- 1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution
- Basic Information — Audio
- 5.1-Channel High Definition audio CODEC
- Connector & Ports — VGA (s)
- 1×VGA interface
- Highlights — Graphics Output
- 1 x HDMI, 1×VGA
- Connector & Ports — LAN Port (s)
- RTL8125 2.5Gbit LAN
- Basic Information — Supported CPU
- Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard
- Connector & Ports — Supported Storage
- 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices; - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel)
- Connector & Ports — Internal I/O Ports

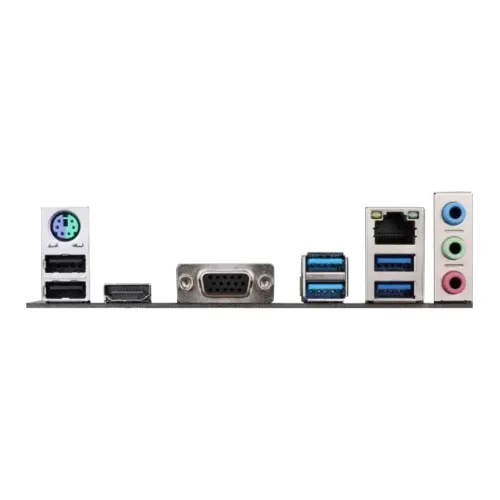

- Rear I/O :; -2×USB 2.0 interfaces; -4×USB 3.2 Gen 1 Type-A interfaces; -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution; -1×VGA interface; -1×PS/2 interface; -1×2.5G network interface; -3×Audio interfaces (audio input/audio output/microphone); On board:; -1×CPU fan pin; -1×System fan pin; -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces; -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces; -1×12V 4-pin RGB pin; -1×Front audio pin; -1×Front panel pin; -1×Speaker pin; -1×Clear CMOS jumper; -1×COM port pin; -1×BIOS burner pin; -1×Debug light pin; -1×USB live control jumper
- Warranty Information — Manufacturing Warranty
- 03 years
Compare with similar products
 This itemColorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard |  GIGABYTEGigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard |  MSIMSI PRO A620M-E AMD AM5 mATX Motherboard |  GIGABYTEGigabyte B550M S2H AM4 AMD Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳10,000 | ৳10,000 | ৳10,000 | ৳10,000 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | Colorful | GIGABYTE | MSI | GIGABYTE |
| RAM type | Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory; Support Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology | Dual channel memory architecture; Support for DDR4 2933/2667/2400/2133 MT/s memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6000+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO | 3rd Gen AMD Ryzen Processors:; Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules; New Generation AMD Ryzen with Radeon Graphics processors:; Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | M-ATX; 197mm x 240mm | Micro ATX Form Factor; 24.4cm x 21.5cm; | mATX; 211mmx243.84mm | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset | AMD B550M | AMD B450 | AMD A620 | AMD B550 |
| M.2 slots | — | 1 | — | 1 |
