Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard

Name: Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard
Brand: GIGABYTE
Price: 10000 BDT
Availability: InStock

Model: B450M DS3H V3Item #: gigabyte-b450m-ds3h-v3-motherboard

৳10,000~~৳10,500~~Save 5%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B450 Chipset
1 M.2 slots
Dual channel memory architecture; Support for DDR4 2933/2667/2400/2133 MT/s memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 21.5cm;

Overview

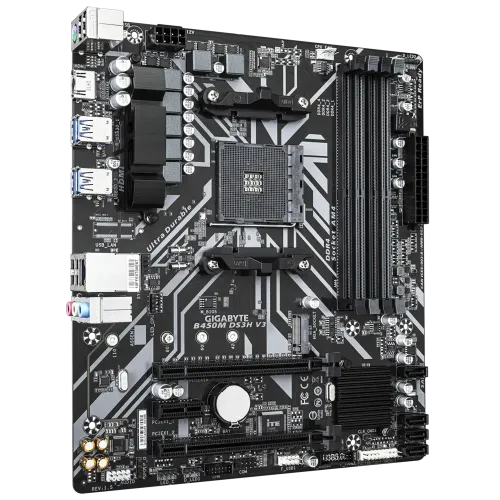

The Gigabyte B450M DS3H V3 is a compact yet powerful Micro ATX motherboard engineered for AMD AM4 socket processors, making it a versatile foundation for gaming rigs, productivity setups, and budget-friendly builds. With robust support for a wide range of AMD Ryzen CPUs including the latest Ryzen 5000 Series, 5000G, 4000G, and earlier generations with Radeon Vega Graphics and Athlon processors this Gigabyte motherboard ensures future-ready compatibility and performance scalability. Powered by the reliable AMD B450 chipset, it features four DDR4 DIMM slots supporting up to 128GB of system memory, dual-channel architecture, and XMP profiles for enhanced memory tuning. Whether you're running DDR4 2933 or stepping down to 2133 MT/s, the Gigabyte B450M DS3H V3 motherboard handles both ECC and non-ECC unbuffered modules with ease, offering flexibility for creators and multitaskers alike. Graphics output is handled via an integrated HDMI 2.1 port with support for 4K resolution at 60Hz and HDCP 2.2, making it ideal for media streaming, casual gaming, or multi-monitor productivity. Audio is powered by Realtek HD codec, delivering immersive 7.1-channel sound with S/PDIF Out support and customizable jack functionality through bundled software. Networking is seamless thanks to the Realtek Gigabit LAN chip, ensuring stable and fast internet connectivity for online gaming, streaming, or remote work. Expansion options include one PCIe 3.0 x16 slot for high-performance GPUs, a secondary PCIe x16 slot running at x1, and a PCIe x1 slot for additional cards. Storage is future-proofed with a high-speed M.2 connector supporting both SATA and PCIe NVMe SSDs (up to 22110 form factor), alongside four SATA 6Gb/s ports with RAID 0, 1, and 10 support for data redundancy and speed. USB connectivity is generous, with four USB 3.1 Gen 1 ports on the rear I/O, two more via internal headers, and six USB 2.0 ports for legacy peripherals. The Gigabyte B450M DS3H V3 AMD AM4 also includes RGB Fusion support with multiple LED headers standard and addressable allowing builders to customize lighting effects and sync with other RGB components. Smart Fan control, temperature and voltage monitoring, and fail warnings ensure thermal stability and system longevity. BIOS features include a 128Mbit AMI UEFI BIOS with support for Q-Flash and Xpress Install, making updates and setup intuitive even for first-time builders. Bundled with Norton Internet Security and LAN bandwidth management software, the B450M DS3H V3 is optimized for secure, high-speed performance. It supports Windows 11, 10, and even Windows 7 (with Pinnacle Ridge or Summit Ridge CPUs), making it a flexible choice for users with legacy systems or modern OS needs. Measuring 24.4cm x 21.5cm, this Gigabyte B450M DS3H V3 Micro ATX motherboard fits comfortably in most mid-tower and compact cases, offering a perfect blend of affordability, reliability, and feature-rich design for DIY PC enthusiasts, gamers, and professionals alike.

Buy Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard from the best Motherboard Shop in BD

Specifications

Chipset: AMD B450
M.2 slots: 1
RAM type: Dual channel memory architecture; Support for DDR4 2933/2667/2400/2133 MT/s memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 21.5cm;
Memory — Type: DDR4
Memory — Slots: 4 x DIMM
Highlights — Model: B450M DS3H V3
Graphics — Graphics: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Show all 28 specifications

Expansion Slots — PCI: 1 x PCI Express x16 slot, running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; (The PCIEX16 slot conforms to PCI Express 3.0 standard.); 1 x PCI Express x16 slot, running at x4 (PCIEX4); 1 x PCI Express x1 slot; (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Highlights — Features: 1 x M.2 Slot, Realtek GbE LAN
Memory — Maximum Memory: 128 GB (32 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: Support for RAID 0, RAID 1, and RAID 10
Basic Information — Audio: Realtek Audio codec; High Definition Audio; 2/4/5.1/7.1-channel; To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.; Support for S/PDIF Out
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for APP Center; * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; @BIOS; EasyTune; Fast Boot; ON/OFF Charge; RGB Fusion; Smart Backup; System Information Viewer; Support for Q-Flash; Support for Xpress Install
Highlights — Supported RAM: 4 x DDR4, up to 128GB, 2933MT/s

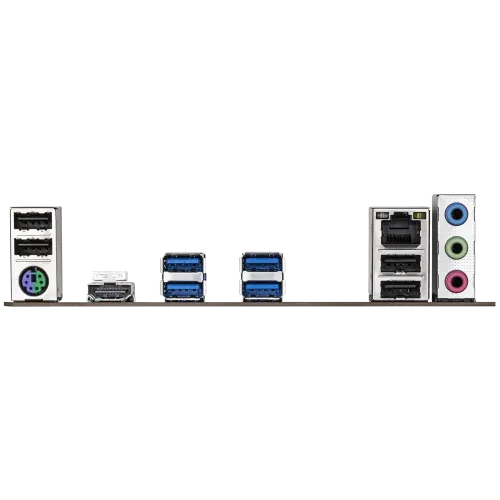

Connector & Ports — USB (s): Chipset:; 2 x USB 3.1 Gen 1 ports available through the internal USB header; 6 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers); CPU:; 4 x USB 3.1 Gen 1 ports on the back panel
Graphics — Max Shared Memory: 16 GB
Highlights — Graphics Output: 1 x HDMI port, Onboard 16GB
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (10/100/1000 Mbit)
Basic Information — Supported CPU: AMD Socket AM4, support for: AMD Ryzen 5000 Series/ AMD Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ 3rd Generation AMD Ryzen/ 2nd Generation AMD Ryzen/ 1st Generation AMD Ryzen/ 2nd Generation Ryzen with Radeon Vega Graphics/ 1st Generation Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Connector & Ports — Supported Storage: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support); * Actual support may vary by CPU.; * Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU.; 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x CPU cooler LED strip/RGB LED strip header; 1 x RGB LED strip header; 2 x addressable LED strip headers; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.1 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x serial port header; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)

Compare with similar products

	This itemGigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard	MSIMSI PRO A620M-E AMD AM5 mATX Motherboard	ColorfulColorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard	GIGABYTEGigabyte B550M S2H AM4 AMD Micro ATX Motherboard
Price	৳10,000	৳10,000	৳10,000	৳10,000
Availability	In stock	In stock	In stock	Out of stock
Brand	GIGABYTE	MSI	Colorful	GIGABYTE
M.2 slots	1	—	—	1
RAM type	Dual channel memory architecture; Support for DDR4 2933/2667/2400/2133 MT/s memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6000+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO	Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory; Support Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology	3rd Gen AMD Ryzen Processors:; Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules; New Generation AMD Ryzen with Radeon Graphics processors:; Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	Micro ATX Form Factor; 24.4cm x 21.5cm;	mATX; 211mmx243.84mm	M-ATX; 197mm x 240mm	Micro ATX Form Factor; 24.4cm x 24.4cm
Chipset	AMD B450	AMD A620	AMD B550M	AMD B550
