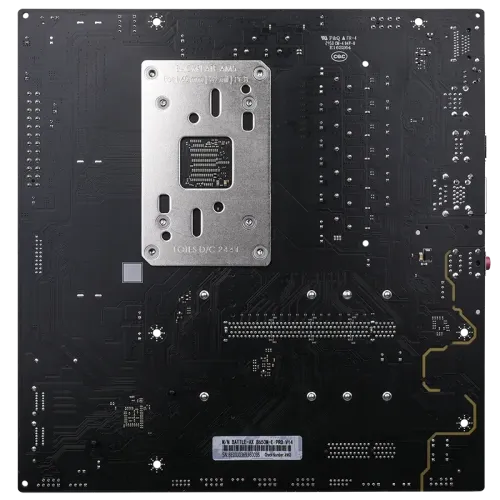

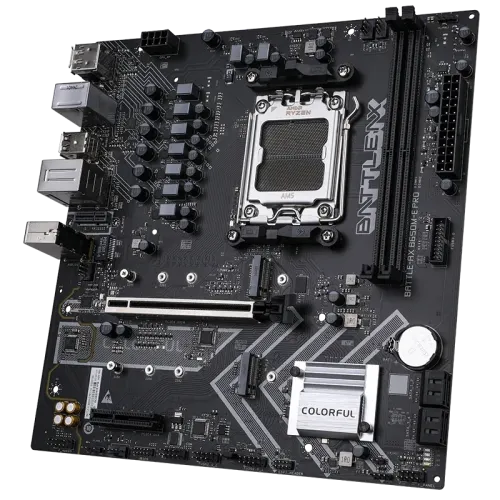

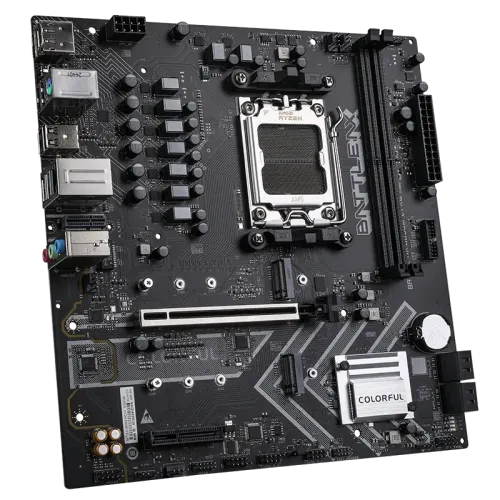

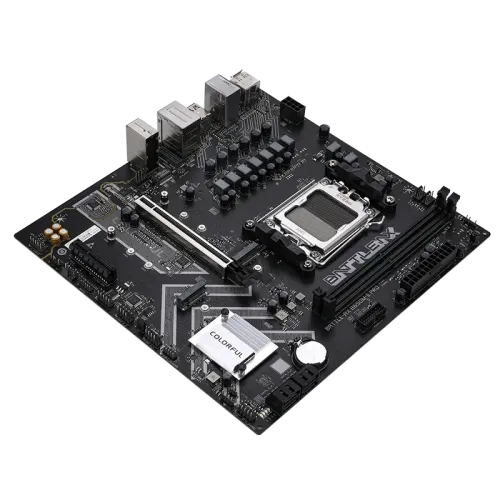

Colorful BATTLE-AX B650M-E PRO V14 AM5 mATX Motherboard
Model: BATTLE-AX B650M-E PRO V14Item #: colorful-battle-ax-b650m-e-pro-v14-motherboard
৳11,900
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B650 Chipset
- 2 M.2 slots
- Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory; Support Extreme Memory Profile (XMP) memory technology; Support EXtended Profiles for Overclocking (EXPO) memory technology; Supports dual channel memory technology RAM type
- M-ATX; 244mm x 235 mm Form factor
Overview
The colorful BATTLE-AX B650M-E PRO V14 AM5 mATX motherboard supports AMD Ryzen 7000, 8000, and 9000 processors via the AM5 socket. It gives a solid base for gaming, productivity, and creative endeavors. Memory support is impressive, with two DDR5 slots capable of handling up to 96GB of total capacity, or 48GB each slot, and speeds up to DDR5-7600 (OC). Dual-channel design, Extreme Memory Profile (XMP), and Extended Profiles for Overclocking (EXPO) enable users to achieve consistent overclocking for faster multitasking and smoother gameplay. The colorful BATTLE-AX B650M-E PRO V14 AM5 mATX motherboard provides exceptional storage versatility, with two M.2 slots and four SATA 6Gb/s ports that enable RAID 0, RAID 1, and RAID 10 configurations. The M.2\_1 slot connects directly to the CPU via PCIe 4.0 x4, while the M.2\_2 slot runs through the chipset, providing builders with various options for SSD installations. Rear I/O connectivity includes four USB 2.0 ports, two USB 3.2 Gen 1 Type-A ports, HDMI 2.0 and DP 1.2 for 4K monitors, a PS/2 connector, Gigabit LAN, three audio jacks, and a BIOS update button. Onboard headers enhance communication even further. The colorful BATTLE-AX B650M-E PRO V14 motherboard includes USB pins, several fan headers, ARGB lighting compatibility, and diagnostic features such as a POST card pin and clear CMOS jumper. There are two expansion slots: one for graphics cards (PCIe 4.0 x16) and one for add-on cards (PCIe 4.0 x4). The board is powered by a 256M UEFI BIOS that supports multiple languages, allowing for easy configuration. Power management options include wake-on-LAN, USB wake-up, and scheduled startup. The colorful BATTLE-AX B650M-E PRO V14 AM5 mATX motherboard features monitoring of CPU and system fan speeds, temperatures, and voltages for precise management. The RTL8111K Gigabit Ethernet controller handles networking, and the Realtek ALC897 codec supports up to 5.1 channels of audio. This mATX motherboard, measuring 244mm x 235mm, strikes the right combination between performance and expandability, making the Colorful BATTLE-AX B650M-E PRO V14 motherboard an excellent choice for current PC designs.
Specifications
- Chipset
- AMD B650
- M.2 slots
- 2
- RAM type
- Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory; Support Extreme Memory Profile (XMP) memory technology; Support EXtended Profiles for Overclocking (EXPO) memory technology; Supports dual channel memory technology
- Form factor
- M-ATX; 244mm x 235 mm
- Memory — Type
- DDR5
- Memory — Slots
- 2 x DIMM;
- Highlights — Model
- BATTLE-AX B650M-E PRO V14
- Expansion Slots — PCI
- 1 PCIe 4.0 x16 slot; 1 PCIe 4.0 x4 slot
Show all 25 specificationsShow fewer
- Highlights — Features
- 2x M.2 slot, RTL8111K Gigabit Ethernet Card
- Memory — Maximum Memory
- up to 96 GB of memory (a single socket can support up to 48 GB of memory)
- Basic Information — BIOS
- 256M UEFI, support multiple languages
- Connector & Ports — HDMI
- 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
- Connector & Ports — RAID
- supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices
- Basic Information — Audio
- Realtek ALC897 high fidelity decoding chip, supporting 5.1 channels
- Connector & Ports — Audio
- Realtek ALC897 high fidelity decoding chip, supporting 5.1 channels
- Others — Special Features
- Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot; Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
- Highlights — Supported RAM
- 2x DDR5 Up to 7600(OC) Max. 96GB
- Connector & Ports — USB (s)
- 4×USB 2.0 interfaces; 2×USB 3.2 Gen 1 5Gbps Type-A interfaces
- Highlights — Graphics Output
- 1x HDMI 2.0, 1x DisplayPort 1.2
- Connector & Ports — LAN Port (s)
- 1×Gigabit network interface; RTL8111K Gigabit Ethernet Card
- Basic Information — Supported CPU
- Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
- Connector & Ports — Display Port (s)
- 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
- Connector & Ports — Supported Storage
- 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices; - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel); - M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)
- Connector & Ports — Internal I/O Ports

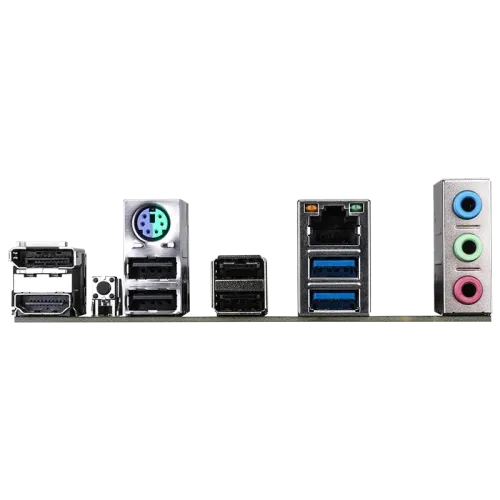

- Rear I/O:; -4×USB 2.0 interfaces; -2×USB 3.2 Gen 1 5Gbps Type-A interfaces; -1×DP 1.2 interface, supporting up to 4K 60Hz resolution; -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution; -1×PS/2 interface; -1×Gigabit network interface; -1×BIOS update button; -3×Audio interfaces (audio input/output/microphone); On board :; -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces; -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A interfaces; -1×CPU fan pin; -2×System fan pins; -1×Water cooling pump pin; -2×5V 3-pin ARGB pins; -1×Front audio pin; -1×Front panel pin; -1×COM port pin; -1×Speaker pin; -1×Clear CMOS jumper; -1×BIOS burner pin; -1×POST card pin
- Warranty Information — Manufacturing Warranty
- 03 years
Compare with similar products
 This itemColorful BATTLE-AX B650M-E PRO V14 AM5 mATX Motherboard |  AsusAsus PRIME A620M-K AM5 mATX Motherboard |  AsusAsus TUF Gaming A520M-Plus Micro ATX AM4 Motherboard |  GIGABYTEGIGABYTE H610M S2H DDR5 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳11,900 | ৳11,850 | ৳11,900 | ৳11,900 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | Colorful | Asus | Asus | GIGABYTE |
| M.2 slots | 2 | — | 1 | — |
| RAM type | Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory; Support Extreme Memory Profile (XMP) memory technology; Support EXtended Profiles for Overclocking (EXPO) memory technology; Supports dual channel memory technology | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO) | 3rd Gen AMD Ryzen Processors; 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory; 3rd Gen AMD Ryzen with Radeon Graphics Processors; 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory; ECC Memory (ECC mode) support varies by CPU | 13th Generation Intel Core i9/i7 processors:; Support for DDR5 5600/5200/4800/4400 MT/s memory modules; 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:; Support for DDR5 4800/4400 MT/s memory modules; 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; support for Extreme Memory Profile (XMP) memory modules |
| Form factor | M-ATX; 244mm x 235 mm | micro-ATX Form Factor; 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm) | mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Chipset | AMD B650 | AMD A620 Chipset | AMD A520 | Intel H610 Express Chipset |
