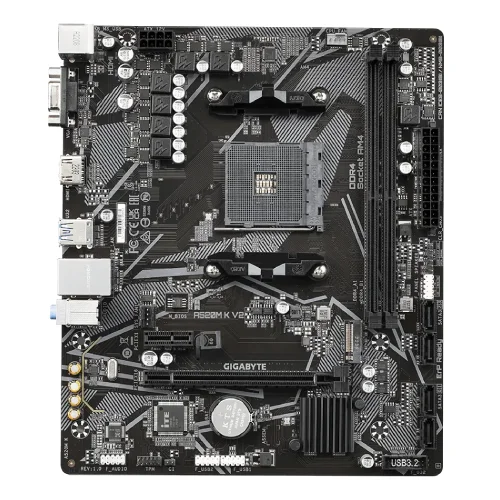

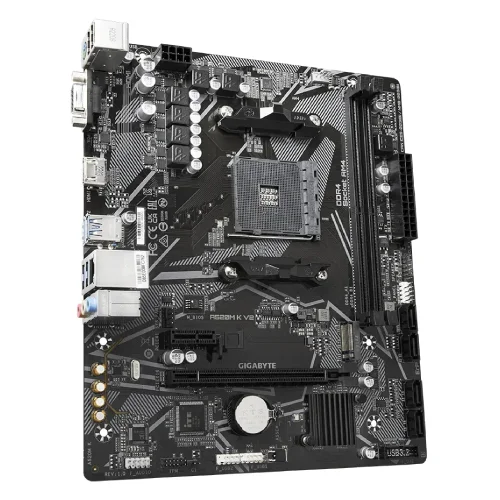

GIGABYTE A520M K V2 AM4 Micro ATX Motherboard
Model: A520M K V2Item #: gigabyte-a520m-k-v2-motherboard
৳8,500৳9,300Save 9%
In stockverified
Quantity
1
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD A520 Chipset
- 1 M.2 slots
- Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
- Micro ATX Form Factor; 23.3cm x 19.8cm
Overview
The Gigabyte A520M K V2 AM4 Micro ATX Motherboard is a powerful and feature-rich Gigabyte motherboard developed exclusively for AMD systems, offering great stability and performance in a small package. This Gigabyte Motherboard uses the efficient A520 chipset to handle a wide range of AMD Ryzen CPUs on the AM4 socket, ensuring seamless multitasking and dependable computing without the need for severe overclocking. This Gigabyte Micro ATX motherboard is ideal for small to mid-sized builds, with an intelligently designed layout that maximizes workspace while providing a plethora of connectivity options, such as multiple USB ports, versatile PCIe slots, and advanced storage configurations with M.2 support for lightning fast NVMe drives. The Gigabyte A520M K V2 Motherboard, designed with Gigabyte's commitment to quality, includes a finely tuned power delivery system and an intuitive, user-friendly BIOS, which, when paired with its efficient thermal design, enable stable operation under sustained workloads. This makes it an excellent foundation for home offices, low-cost gaming rigs, and entry-level content creation systems, solidifying its position as a smart and dependable choice in the competitive Gigabyte Micro ATX motherboard market.
Buy GIGABYTE A520M K V2 AM4 Micro ATX Motherboard from the best Motherboard Shop in BD
Specifications
- Chipset
- AMD A520
- M.2 slots
- 1
- RAM type
- Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
- Form factor
- Micro ATX Form Factor; 23.3cm x 19.8cm
- Memory — Type
- DDR4
- Memory — Slots
- 2 x DIMM
- Highlights — Model
- A520M K V2
- Graphics — Graphics
- Integrated Graphics Processor:; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; Support for HDMI 2.0 version and HDCP 2.2.
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16; Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- Highlights — Features
- 1 x M.2 Slot, Realtek GbE LAN
- Memory — Maximum Memory
- 64 GB (32 GB single DIMM capacity)
- Basic Information — BIOS
- 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI port
- Connector & Ports — RAID
- Support for RAID 0, RAID 1, and RAID 10
- Basic Information — Audio
- Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for APP Center; * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; @BIOS; EasyTune; Smart Backup; System Information Viewer; Support for Q-Flash; Support for Xpress Install
- Highlights — Supported RAM
- 2 x DDR4, up to 64GB, 5100(O.C.)
- Connector & Ports — USB (s)
- CPU:; 4 x USB 3.2 Gen 1 ports on the back panel; Chipset:; 2 x USB 3.2 Gen 1 ports available through the internal USB header; 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- Graphics — Max Shared Memory
- 16 GB
- Highlights — Graphics Output
- 1 x HDMI, 1x D-Sub
- Connector & Ports — LAN Port (s)
- Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
- Basic Information — Supported CPU
- AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Connector & Ports — Supported Storage
- CPU:; 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support); Chipset:; 4 x SATA 6Gb/s connectors
- Connector & Ports — Internal I/O Ports
- 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x speaker header; 1 x Clear CMOS jumper; 1 x chassis intrusion header
- Warranty Information — Manufacturing Warranty
- 03-Year Warranty
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Compare with similar products
 This itemGIGABYTE A520M K V2 AM4 Micro ATX Motherboard |  MSIMSI H310M PRO-VDH Intel 9th Gen Motherboard |  AsusAsus PRIME A520M-R AM4 micro ATX Motherboard |  GIGABYTEGIGABYTE B450M K AMD AM4 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳8,500 | ৳8,400 | ৳8,700 | ৳8,800 |
| Availability | In stock | In stock | In stock | In stock |
| Brand | GIGABYTE | MSI | Asus | GIGABYTE |
| M.2 slots | 1 | — | 1 | — |
| RAM type | Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC); Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC); Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) | DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory*; Dual channel memory architecture; * ECC memory (ECC mode) support varies by CPU | Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | Micro ATX Form Factor; 23.3cm x 19.8cm | m-ATX Form Factor | micro-ATX Form Factor; 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm ) | Micro ATX Form Factor; 24.4cm x 19.5cm |
| Chipset | AMD A520 | Intel H310 Chipset | A520 | AMD B450 |
