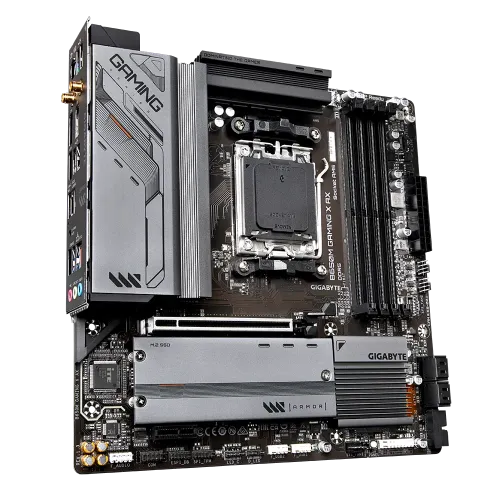

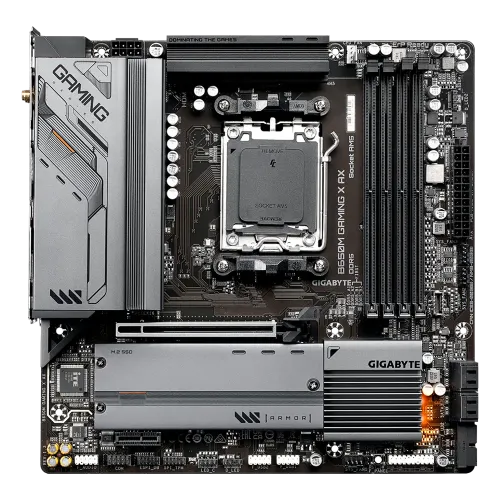

GIGABYTE B650M GAMING X AX DDR5 AM5 Motherboard

Name: GIGABYTE B650M GAMING X AX DDR5 AM5 Motherboard
Brand: GIGABYTE
Price: 25200 BDT
Availability: OutOfStock

Model: B650M GAMING X AXItem #: gigabyte-b650m-gaming-x-ax-motherboard

৳25,200

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme; Memory Profile (XMP) memory module RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE B650M GAMING X AX Motherboard is a powerhouse designed to cater to the demands of gaming enthusiasts and professionals seeking top-tier performance and reliability. It seamlessly supports the latest Ryzen 8000/7000 Series Processors with its Socket AM5, making it a future-proof cornerstone for any high-performance gaming setup. The motherboard distinguishes itself with support for up to 192GB of DDR5 RAM across four slots, capable of reaching speeds up to 8000MHz when overclocked. This vast and speedy memory support is further enhanced by compatibility with AMD EXPO and Intel XMP, ensuring easy and stable overclocking for peak performance. Strong visual output is offered by two Display Ports and one HDMI connector, offering a variety of high-definition connectivity choices for immersive gaming or multiple monitor configurations. The motherboard's core technology is a Direct 6+2+1 Phases Digital VRM Solution, which has been painstakingly designed to provide reliable and effective power distribution to crucial system components under a range of load scenarios. The dual-channel DDR5 architecture perfectly complements the high-performance CPUs it supports by increasing system speed and bandwidth. including two PCIe 4.0 x4 M.2 connections for super-fast storage, which drastically cuts down on game load times and guarantees quick data access. Additionally, GIGABYTE has given thermal management a lot of thought. To maintain ideal temperatures and avoid performance throttling during demanding gaming sessions or high workload activities, the company has included an M.2 Thermal Guard coupled with an innovative thermal design. The EZ-Latch design on the PCIe x16 slot and M.2 connections, which enables rapid and tool-free component installation or upgrades, is proof that ease of use is a top priority. With both 2.5GbE LAN and Wi-Fi 6E 802.11ax available, the networking capabilities are state-of-the-art, guaranteeing dependable and fast internet connections whether connected cable or wirelessly. A variety of connectors, such as two Display connectors, two USB-C 10Gb/s, and HDMI, enable extended connectivity and can support a large number of external devices and peripherals. With its FAN STOP feature for silent operation under low loads, Smart Fan 6 technology intelligently handles cooling by utilizing numerous temperature sensors and hybrid fan headers to maximize cooling efficiency and noise levels. Moreover, BIOS upgrades are made easier by the motherboard's Q-Flash Plus function, which streamlines the upgrading and troubleshooting procedure by removing the need to install the CPU, RAM, or graphics card. For those who want nothing less than the finest, the GIGABYTE B650M GAMING X AX Motherboard delivers an amazing combination of performance, expandability, and cutting-edge features. It seems like the perfect option for creating an ultra-high-end gaming PC that defies convention.

Specifications

Chipset: AMD B650
RAM type: 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme; Memory Profile (XMP) memory module
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 DIMMs
Highlights — Model: B650M GAMING X AX
Graphics — Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version; ; ; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports; ; ; (Graphics specifications may vary depending on CPU support.); Support for up to 3 displays at the same time
Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD.; Chipset:; - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Show all 28 specifications

Highlights — Features: Realtek 2.5GbE LAN & Realtek Wi-Fi 6E RTL8852CE
Memory — Maximum Memory: 192GB
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Connector & Ports — Audio: 3 x Audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR5, up to 192GB, 8000(OC)
Connector & Ports — USB (s): CPU:; - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support; - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; ; CPU + USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back pane; ; Chipset:; - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header; - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 2x Display Port, 1 x HDMI
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Connector & Ports — Display Port (s): 2 x DisplayPorts
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:; - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:; - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs; 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 1 x addressable LED strip header (D_LED1); 1 x addressable LED strip header (D_LED2); 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors; 4 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 2 x SMA antenna connectors (2T2R); 2 x DisplayPorts; 1 x HDMI port; 1 x USB 3.2 Gen 2 Type-A port (red); 1 x USB Type-C® port, with USB 3.2 Gen 2 support; 1 x Q-Flash Plus button; 1 x RJ-45 port; 2 x USB 3.2 Gen 1 ports; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Realtek Wi-Fi 6E RTL8852CE; - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGIGABYTE B650M GAMING X AX DDR5 AM5 Motherboard	ASRockASRock B850M Pro-A WiFi AM5 DDR5 mATX Motherboard	GIGABYTEGIGABYTE B760 AORUS ELITE AX DDR4 ATX Motherboard	GIGABYTEGigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard
Price	৳25,200	৳25,000	৳25,000	৳25,300
Availability	Out of stock	Out of stock	Out of stock	In stock
Brand	GIGABYTE	ASRock	GIGABYTE	GIGABYTE
RAM type	8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme; Memory Profile (XMP) memory module	- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules	Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	Micro ATX Form Factor; 24.4cm x 24.4cm	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm	ATX Form Factor; 30.5cm x 24.4cm;	Micro ATX Form Factor; 24.4cm x 22.5cm
Chipset	AMD B650	AMD B850	Intel B760 Express Chipset	Intel B860 Chipset
M.2 slots	—	1	1	1
