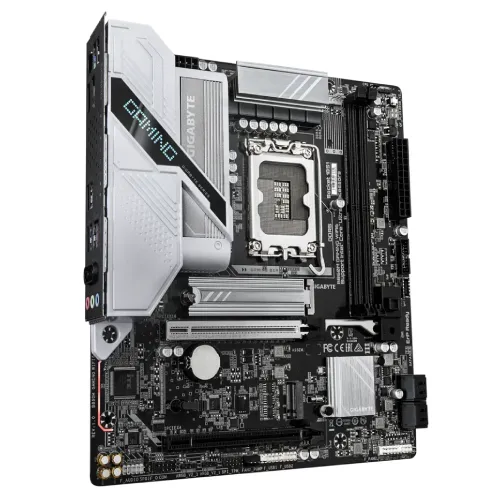

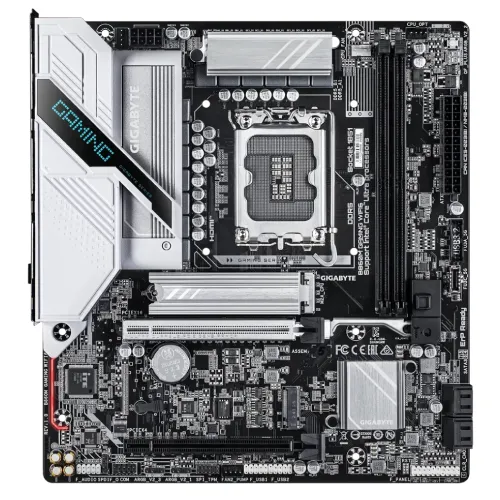

Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard

Name: Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard
Brand: GIGABYTE
Price: 25300 BDT
Availability: InStock

Model: B860M GAMING WIFI6Item #: gigabyte-b860m-gaming-wifi6-motherboard

৳25,300~~৳25,500~~Save 1%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B860 Chipset
1 M.2 slots
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 22.5cm

Overview

The Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard is a top choice for gamers and PC enthusiasts, offering cutting-edge features and smooth performance. This Gigabyte motherboard is designed to support Intel Core Ultra processors via the LGA 1851 socket and is powered by the Intel B860 Express Chipset for outstanding performance. The Gigabyte B860M Motherboard supports DDR5 memory up to 128 GB and speeds of up to 9066 MT/s (overclocked), ensuring fast multitasking and gaming experiences. The Gigabyte B860M GAMING WIFI6 Motherboard has two M.2 slots, one of which supports PCIe 5.0 x4 for ultra-fast storage options, and another that provides unrivaled graphics performance. The Gigabyte Wifi Motherboard excels at communication, with built-in Wi-Fi 6 and 2.5GbE LAN, meeting both wireless and wired networking requirements. Advanced thermal solutions such as VRM Thermal Armor and M.2 Thermal Guard keep temperatures under control during intensive tasks. Its appeal is further enhanced by user-friendly features such as AI Perfdrive for optimum BIOS settings and PCIe EZ-Latch Plus for easy installation. With support for HDMI 2.1 and DisplayPort 2.1, the Gigabyte B860M GAMING WIFI6 motherboard provides outstanding images, making it an excellent choice for developing a high-performance gaming system.

Specifications

Chipset: Intel B860 Chipset
M.2 slots: 1
RAM type: Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 22.5cm
Memory — Type: DDR5
Memory — Slots: 2 x DIMM
Highlights — Model: B860M GAMING WIFI6
Graphics — Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ; ; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.; ; (Graphics specifications may vary depending on CPU support.)

Show all 29 specifications

Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; ; ; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Highlights — Features: 2x M.2, Intel Wi-Fi6 , Bluetooth 5.3
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 1 x front panel audio header; 3 x audio jacks
Others — Bundled Software: Norton® Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; ; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Highlights — Supported RAM: 2x DDR5, Max 128GB,Supports Up to 9066(O.C)
Connector & Ports — USB (s): Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); - 3 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps);
Basic Information — Supported CPU: Intel Core Ultra Processors(Series 2)
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); - 4 x SATA 6Gb/s connectors

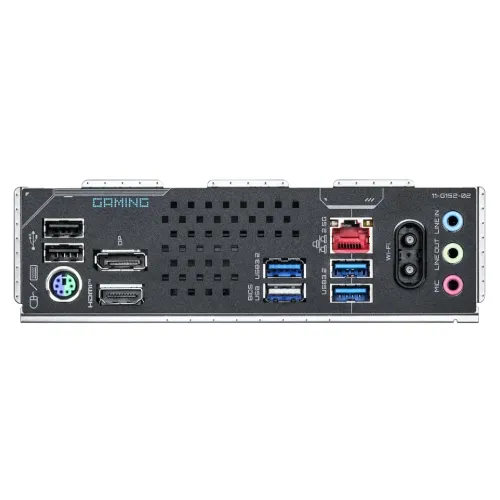

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 1 x system fan header; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors; 1 x PS/2 keyboard/mouse port; 1 x HDMI port (Note); 1 x DisplayPort (Note); 3 x USB 3.2 Gen 1 ports; 3 x USB 2.0/1.1 ports; 2 x antenna connectors (2T2R); 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 Year Warranty
Connector & Ports — Wireless Communication module: Realtek® Wi-Fi 6 RTL8851BE; - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 80MHz wireless standard
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard	GIGABYTEGIGABYTE B650M GAMING X AX DDR5 AM5 Motherboard	ASRockASRock B850M Pro RS WiFi AM5 mATX Motherboard	MSIMSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
Price	৳25,300	৳25,200	৳25,500	৳25,500
Availability	In stock	Out of stock	In stock	In stock
Brand	GIGABYTE	GIGABYTE	ASRock	MSI
M.2 slots	1	—	1	3
RAM type	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme; Memory Profile (XMP) memory module	- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); - Max. capacity of system memory: 256GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile
Form factor	Micro ATX Form Factor; 24.4cm x 22.5cm	Micro ATX Form Factor; 24.4cm x 24.4cm	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm	mATX; 243.84mmx243.84mm
Chipset	Intel B860 Chipset	AMD B650	AMD B850	INTEL B760
