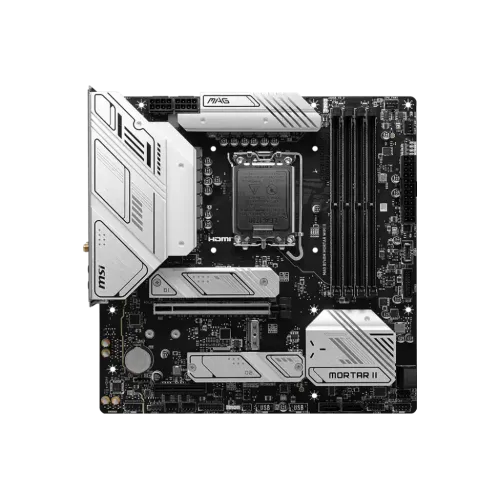

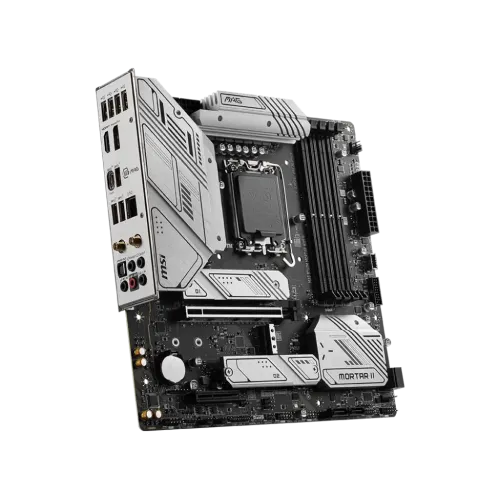

MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard

Name: MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
Brand: MSI
Price: 25500 BDT
Availability: InStock

Model: MAG B760M MORTAR WIFI IIItem #: msi-mag-b760m-mortar-wifi-ii-motherboard

৳25,500~~৳26,200~~Save 3%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

INTEL B760 Chipset
3 M.2 slots
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile RAM type
mATX; 243.84mmx243.84mm Form factor

Overview

The MSI MAG B760M MORTAR WIFI II Motherboard is a top-tier solution for gaming and content production aficionados, supporting Intel Core 14th, 13th, and 12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors built for the LGA 1700 socket. With DDR5 compatibility, this motherboard embraces memory technology's future, allowing for remarkable memory rates of up to 7800+(OC) MHz, assuring a fluid multitasking experience and improved system responsiveness. The improved 12+1+1 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost all work together to create a stable and overclocking-friendly environment. The motherboard also has a PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2 x2 for customers who want high data transfer speeds and compatibility with the newest gaming accessories. The premium thermal solution with the expanded heatsink design and M.2 Shield Frozr offers top performance and dependability when it comes to maintaining appropriate temperatures during strenuous gaming sessions or resource-intensive work. The addition of Audio Boost technology improves the user experience even further by offering studio-grade sound quality for gaming, music, and multimedia applications. The motherboard's high-quality construction is obvious in its 6-layer PCB, which is manufactured from 2oz thicker copper and server-grade level material. This improves not only the system's resilience and stability but also its overall lifetime. In conclusion, the MSI MAG B760M MORTAR WIFI II Motherboard smoothly integrates cutting-edge technology with an emphasis on performance, dependability, and user-friendly features, making it an excellent choice for individuals looking for a high-performance motherboard for their gaming or video production system.

Buy MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard Shop in BD

Specifications

Chipset: INTEL B760
M.2 slots: 3
RAM type: Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile
Form factor: mATX; 243.84mmx243.84mm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: MAG B760M MORTAR WIFI II
Graphics — Graphics: Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*; Support DP 1.4, maximum resolution of 8K 60Hz*

Show all 26 specifications

Expansion Slots — PCI: 1x PCI-E x16 slot; Supports x16/x4; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
Highlights — Features: Realtek 2.5Gbps LAN, Wi-Fi 6E
Memory — Maximum Memory: 192GB
Connector & Ports — HDMI: 1x HDMI 2.1
Connector & Ports — RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Basic Information — Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
Others — Special Features: LED FEATURE: 4x EZ Debug LED
Highlights — Supported RAM: 4x DDR5, 7800+MHz (OC), Max 192GB
Connector & Ports — USB (s): 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 3.2 Gen1 Type A (Front); 3x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Realtek 2.5Gbps LAN
Basic Information — Supported CPU: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
Connector & Ports — Display Port (s): 1x DisplayPort 1.4
Connector & Ports — Supported Storage: 3x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices; 4x SATA 6G
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports; 1x USB4 card connector (JTBT_U4_1, supports RTD3)
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3, FIPS, FISMA
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)

Compare with similar products

	This itemMSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard	ASRockASRock B850M Pro RS WiFi AM5 mATX Motherboard	GIGABYTEGIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard	AsusAsus TUF GAMING B760-PLUS WIFI D4 ATX Motherboard
Price	৳25,500	৳25,500	৳25,500	৳25,500
Availability	In stock	In stock	In stock	Out of stock
Brand	MSI	ASRock	GIGABYTE	Asus
M.2 slots	3	1	—	3
RAM type	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile	- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); - Max. capacity of system memory: 256GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules	7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)	ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
Form factor	mATX; 243.84mmx243.84mm	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm	ATX Form Factor; 30.5cm x 24.4cm	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Chipset	INTEL B760	AMD B850	AMD B650	Intel B760 Chipset
