XENTHRA XN-H81M-VH 4th Gen mATX Motherboard
1600 / 1333 / 1066 MHz · Micro-ATX (180 mm x 216 mm) · Intel B85 Express Chipset
৳4,200৳4,500Save 7%
In stock
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Shop all Asus products
Asus TUF GAMING B760-PLUS WIFI D4 ATX Motherboard
Model: TUF GAMING B760-PLUS WIFI D4Item #: asus-tuf-gaming-b760-plus-wifi-d4-motherboard
৳25,500
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B760 Chipset
- 3 M.2 slots
- ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II RAM type
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Overview
The Asus TUF GAMING B760-PLUS WIFI D4 is a high-performance ATX motherboard designed for gaming enthusiasts and PC builders who demand top-tier features and durability. This motherboard is built to support both the 14th, 13th and 14th generation Intel Core processors, as well as Pentium Gold and Celeron processors, with its Intel LGA 1700 socket. The Asus TUF GAMING B760-PLUS WIFI D4 is its enhanced power solution, which includes 12+1 DrMOS power stages, a six-layer PCB, 8+4 ProCool sockets, military-grade TUF components, and Digi+ VRM. This ensures maximum durability and stability, even under heavy loads and overclocking. Comprehensive cooling is also a priority with this motherboard, as it features extended VRM heatsinks, M.2 heatsinks, PCH heatsinks, hybrid fan headers, and Fan Smart 4 technology to keep temperatures in check and maintain optimal performance during extended gaming sessions. The Asus TUF GAMING B760-PLUS WIFI D4 also offers the latest connectivity options, including a PCIe 5.0 slot, PCIe 4.0 M.2 slots for ultra-fast storage, USB 3.2 Gen 2x2 Type-C for lightning-fast data transfers, and a front panel header for USB 3.2 Gen 2 Type-C and Thunderbolt (USB4) for versatile connectivity options. Designed for online gaming, this motherboard features Intel WiFi 6 and Realtek 2.5Gb Ethernet for lag-free and reliable internet connectivity, as well as TUF LANGuard for enhanced network protection against power surges and lightning strikes. This 14th Gen Motherboard has bi-directional AI noise cancellation, which reduces background noise from the microphone and audio output for crystal-clear communication during gaming or video conferencing.
Buy Asus TUF GAMING B760-PLUS WIFI D4 ATX Motherboard from the best Motherboard Shop in BD
Specifications
- Chipset
- Intel B760 Chipset
- M.2 slots
- 3
- RAM type
- ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
- Form factor
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Memory — Type
- DDR4
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- TUF GAMING B760-PLUS WIFI D4
- Graphics — Graphics
- 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4); 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- Intel 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel B760 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode); 2 x PCIe 3.0 x1 slots; PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
- Highlights — Features
- 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6
- Memory — Maximum Memory
- Max. 128GB
- Basic Information — BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI port
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio cover
- Connector & Ports — Audio
- 5 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 4; - Power Saving; - Two-Way AI Noise Cancellation; AI Suite 3; - DIGI+ VRM; - PC Cleaner; TUF GAMING CPU-Z; DTS Audio Processing; MyASUS; Norton 360 for Gamers; WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeSlot Core+; - SafeDIMM; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers
- Connector & Ports — USB (s)

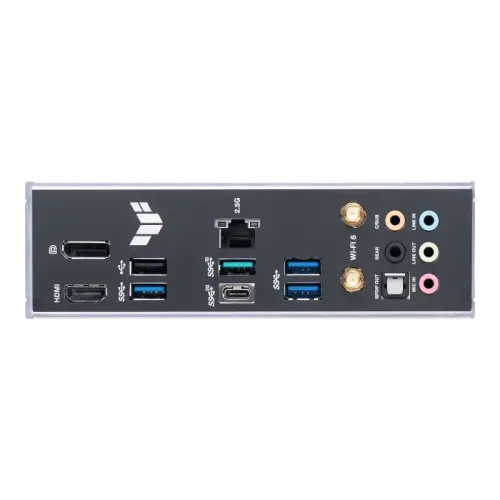

- Rear USB (Total 6 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 1 x USB 3.2 Gen 2 port (1 x Type-A); 3 x USB 3.2 Gen 1 ports (3 x Type-A); 1 x USB 2.0 port (1 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Highlights — Graphics Output
- 1 x DisplayPort, 2 x HDMI
- Connector & Ports — LAN Port (s)
- 1 x Intel 2.5Gb Ethernet; TUF LANGuard
- Basic Information — Supported CPU
- Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt (USB4) header; ; Back Panel I/O Ports; 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 1 x USB 3.2 Gen 2 port (1 x Type-A); 3 x USB 3.2 Gen 1 ports (3 x Type-A); 1 x USB 2.0 port (1 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port
- Warranty Information — Manufacturing Warranty
- 3 years warranty
- Connector & Ports — Wireless Communication module
- Wi-Fi 6; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.2
Compare with similar products
 This itemAsus TUF GAMING B760-PLUS WIFI D4 ATX Motherboard |  ASRockASRock B850M Pro RS WiFi AM5 mATX Motherboard |  MSIMSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard |  GIGABYTEGIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard | |
|---|---|---|---|---|
| Price | ৳25,500 | ৳25,500 | ৳25,500 | ৳25,500 |
| Availability | Out of stock | In stock | In stock | In stock |
| Brand | Asus | ASRock | MSI | GIGABYTE |
| M.2 slots | 3 | 1 | 3 | — |
| RAM type | ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II | - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); - Max. capacity of system memory: 256GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Form factor | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm | mATX; 243.84mmx243.84mm | ATX Form Factor; 30.5cm x 24.4cm |
| Chipset | Intel B760 Chipset | AMD B850 | INTEL B760 | AMD B650 |
