XENTHRA XN-H81M-VH 4th Gen mATX Motherboard
1600 / 1333 / 1066 MHz · Micro-ATX (180 mm x 216 mm) · Intel B85 Express Chipset
৳4,200৳4,500Save 7%
In stock
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Shop all GIGABYTE products
GIGABYTE B650M H AM5 Micro-ATX Motherboard
Model: B650M HItem #: gigabyte-b650m-h-motherboard
৳13,900৳14,300Save 3%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B650 Chipset
- 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules RAM type
- Micro ATX Form Factor; 23.0cm x 22.5cm
Overview

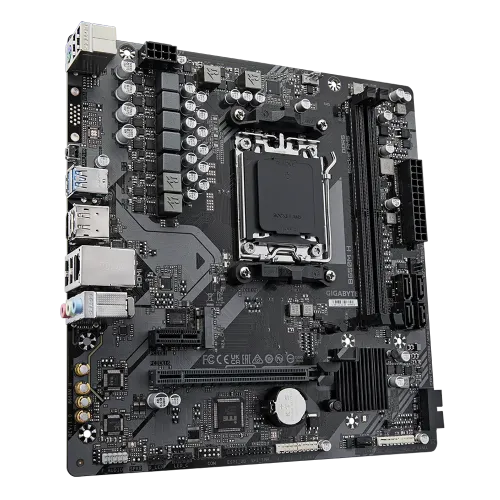

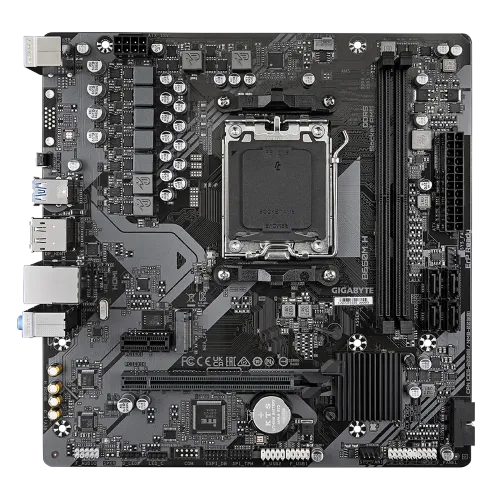

The GIGABYTE B650M H AM5 Micro-ATX Motherboard is a compact and feature-rich platform designed to support AMD's latest Ryzen 7000, 8000, and 9000 series processors, utilizing the AM5 socket. This motherboard offers a robust power delivery system with a 5+2+2 phases digital VRM solution, ensuring stable and efficient performance, especially under demanding conditions. It supports Dual Channel DDR5 memory through 2 SMD DIMMs, compatible with both AMD EXPO and Intel XMP memory modules, allowing users to easily overclock and optimize their system's memory performance. The B650M H provides a PCIe 4.0 x4 M.2 connector, offering high-speed storage capabilities that significantly enhance system responsiveness. The EZ-Latch feature on the PCIe x16 slot simplifies the installation and removal of graphics cards with a quick-release design, making hardware upgrades and maintenance straightforward. Equipped with Gigabit Ethernet LAN, the motherboard ensures reliable and fast network connectivity, ideal for gaming and data-intensive tasks. The motherboard also includes versatile connectivity options with DisplayPort and HDMI outputs, supporting various display setups and multi-monitor configurations. Its Smart Fan 6 technology provides multiple temperature sensors and hybrid fan headers, including the capability to stop fans completely when not needed, ensuring optimal cooling and minimal noise. Additionally, the Q-Flash Plus feature allows for easy BIOS updates without the need to install a CPU, memory, or graphics card, simplifying system maintenance and upgrades. The GIGABYTE B650M H AM5 Micro-ATX motherboard offers a well-rounded package for users seeking a reliable and efficient system build, whether for gaming or professional use.
Specifications
- Chipset
- AMD B650
- RAM type
- 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
- Form factor
- Micro ATX Form Factor; 23.0cm x 22.5cm
- Memory — Type
- DDR5
- Memory — Slots
- 2 x DIMM
- Highlights — Model
- B650M H
- Graphics — Graphics
- supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.
- Expansion Slots — PCI
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
Show all 26 specificationsShow fewer
- Highlights — Features
- 1 x DisplayPort, 1 x HDMI
- Memory — Maximum Memory
- supporting up to 96 GB (48 GB single DIMM capacity) of system memory
- Basic Information — BIOS
- 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — RAID
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Connector & Ports — Audio
- 3 x audio jacks
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus;
- Connector & Ports — USB (s)
- CPU:; - 2 x USB 3.2 Gen 1 ports on the back panel; - 1 x USB 2.0/1.1 port on the back panel; Chipset:; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
- Highlights — Graphics Output
- 2 x DisplayPort, 1 x HDMI port
- Connector & Ports — LAN Port (s)
- Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Basic Information — Supported CPU
- AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:; - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors
- Connector & Ports — Internal I/O Ports

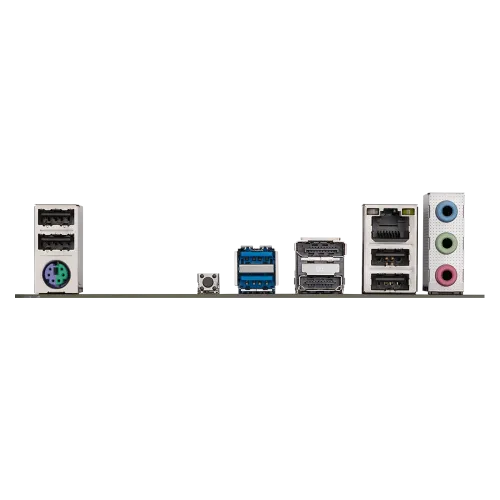

- 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Clear CMOS jumper; ; Back Panel Connectors; 4 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x Q-Flash Plus button; 2 x USB 3.2 Gen 1 ports; 1 x DisplayPort
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Compare with similar products
 This itemGIGABYTE B650M H AM5 Micro-ATX Motherboard |  AsusAsus PRIME B650M-F AM5 mATX Motherboard |  MSIMSI PRO B760M-G DDR4 mATX Motherboard |  GIGABYTEGIGABYTE B550M DS3H AC R2 mATX AMD Motherboard | |
|---|---|---|---|---|
| Price | ৳13,900 | ৳13,800 | ৳13,800 | ৳13,900 |
| Availability | In stock | In stock | Out of stock | Out of stock |
| Brand | GIGABYTE | Asus | MSI | GIGABYTE |
| RAM type | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO) | Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 4600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP) | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | Micro ATX Form Factor; 23.0cm x 22.5cm | micro-ATX Form Factor; 8.9 inch x 8.6 inch (22.6 cm x 21.8 cm) | mATX; 220mmx243.84mm | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset | AMD B650 | AMD B650 Chipset | INTEL B760 | AMD B550 |
| M.2 slots | — | — | — | 1 |
Warranty & returns
Manufacturer warranty
Covered by the manufacturer's official Bangladesh warranty where one applies. The warranty term for this product, when the source lists one, appears in the specifications above.
Dead on arrival
Report a dead-on-arrival unit within 3 days of delivery and we replace it.
Returns
Return an unopened, unused product in its original packaging within 3 days of delivery. Delivery charges are not refundable.
