GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
Model: B650M S2HItem #: gigabyte-b650m-s2h-motherboard
৳14,000৳14,500Save 3%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B650 Chipset
- Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules RAM type
- Micro ATX Form Factor; 23.0cm x 22.5cm
Overview

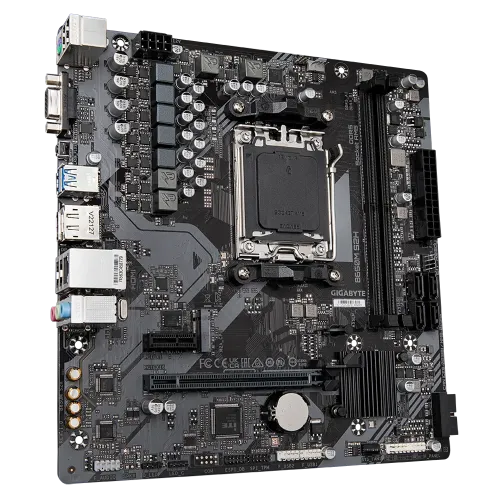

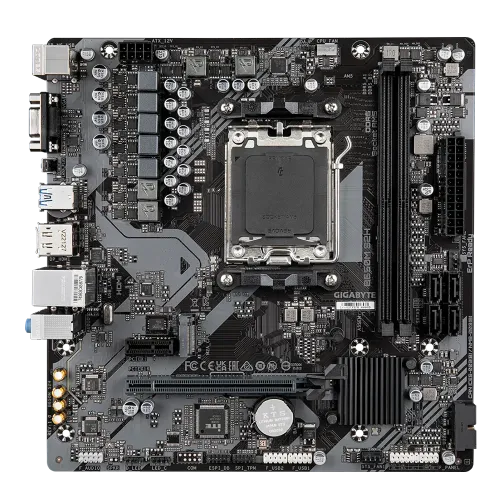

The GIGABYTE B650M S2H Motherboard is a high-performance motherboard designed to meet today's computing demands, with a slew of advanced capabilities and technologies to support AMD Ryzen 7000 Series Processors and provide exceptional performance for a smooth computing experience. This motherboard is completely compatible with AMD Ryzen 8000 & 7000 Series Processors, allowing you to take advantage of the newest CPU technology for your computing requirements. The GIGABYTE B650M S2H Motherboard has a 5+2+2 Phases Digital VRM Solution, which aids in the effective distribution of power to your CPU, improving stability and performance during heavy workloads like gaming and content production. This motherboard, which has two SMD DIMMs, supports AMD EXPO and Intel XMP memory modules, allowing you to optimize the memory performance of your system. DDR5 memory has quicker data transfer rates than its predecessors, allowing for smoother multitasking and speedier program loading. This motherboard supports high-speed storage options, with a PCIe 4.0 x4 M.2 Connector, making it suitable for installing super-fast SSDs that make use of the PCIe 4.0 interface, offering lightning-fast data access. The PCIe x16 slot on the motherboard has a quick-release design, which makes it easy to install and remove graphics cards without the use of tools or excessive force, providing convenient and efficient maintenance. It has a GbE LAN (Gigabit Ethernet) connector for fast and consistent internet access, which is essential for online gaming, streaming, and other data-intensive operations. With multiple display outputs, including DP, HDMI, and D-Sub, this motherboard supports various display options, making it versatile for different setups and multi-monitor configurations. The Smart Fan 6 technology includes multiple temperature sensors and hybrid fan headers with a FAN STOP feature. This allows for precise and efficient cooling, adjusting fan speeds based on the temperature to maintain an optimal balance between performance and noise. This convenient feature enables you to update the motherboard's BIOS without needing to install the CPU, memory, or graphics card, simplifying the process of keeping your system up to date with the latest firmware.
Specifications
- Chipset
- AMD B650
- RAM type
- Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
- Form factor
- Micro ATX Form Factor; 23.0cm x 22.5cm
- Memory — Type
- DDR5
- Memory — Slots
- 2 x DIMM
- Highlights — Model
- B650M S2H
- Graphics — Graphics
- Integrated Graphics Processor:; - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
- Expansion Slots — PCI
- CPU:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset:; - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Show all 27 specificationsShow fewer
- Highlights — Features
- Realtek GbE LAN chip
- Memory — Maximum Memory
- up to 96 GB (48 GB single DIMM capacity)
- Basic Information — BIOS
- 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — RAID
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Connector & Ports — Audio
- 3 x audio jacks
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus;
- Connector & Ports — USB (s)
- CPU:; - 2 x USB 3.2 Gen 1 ports on the back panel; - 1 x USB 2.0/1.1 port on the back panel; Chipset:; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
- Highlights — Graphics Output
- 1 x DisplayPort, 1 x HDMI, 1 x D-Sub
- Connector & Ports — D-Sub (s)
- 1 x D-Sub port
- Connector & Ports — LAN Port (s)
- Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps);
- Basic Information — Supported CPU
- AMD Socket AM5, support for:; AMD Ryzen™ 8000 & 7000 Series Processors
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- CPU:; - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support); Chipset:; - 4 x SATA 6Gb/s connectors;
- Connector & Ports — Internal I/O Ports

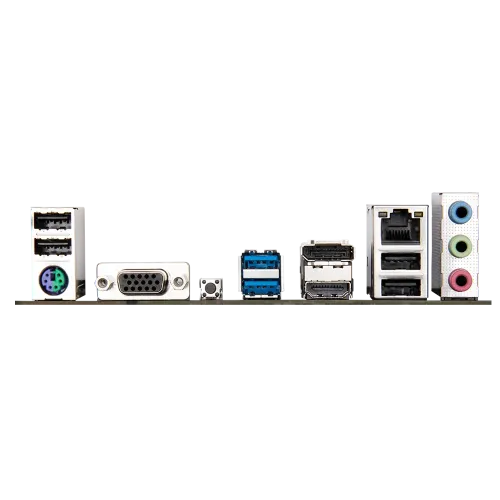

- Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only); 1 x Clear CMOS jumper; ; Back Panel Connectors; 4 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x Q-Flash Plus button; 2 x USB 3.2 Gen 1 ports; 1 x RJ-45 port
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Compare with similar products

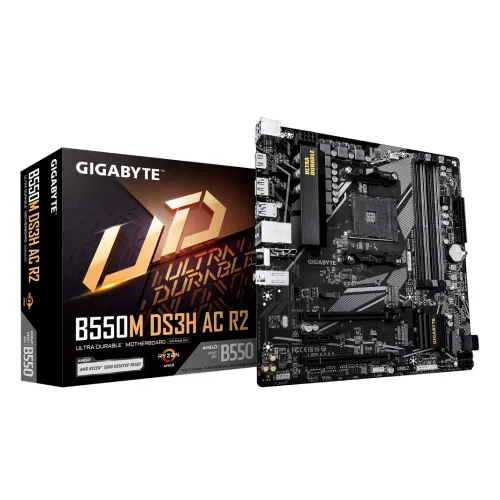

 This itemGIGABYTE B650M S2H AM5 Micro-ATX Motherboard |  GIGABYTEGIGABYTE B650M H AM5 Micro-ATX Motherboard |  GIGABYTEGIGABYTE B550M DS3H AC R2 mATX AMD Motherboard |  MSIMSI PRO B550M-P AMD AM4 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳14,000 | ৳13,900 | ৳13,900 | ৳14,100 |
| Availability | In stock | In stock | Out of stock | In stock |
| Brand | GIGABYTE | GIGABYTE | GIGABYTE | MSI |
| RAM type | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4400+ MT/s; • 1DPC 2R Max speed up to 3733+ MT/s; • 2DPC 1R Max speed up to 3866+ MT/s; • 2DPC 2R Max speed up to 3466+ MT/s; Supports JEDEC Speed; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Memory Overclocking by A-XMP OC mode |
| Form factor | Micro ATX Form Factor; 23.0cm x 22.5cm | Micro ATX Form Factor; 23.0cm x 22.5cm | Micro ATX Form Factor; 24.4cm x 24.4cm | mATX; 243.84mmx243.84mm |
| Chipset | AMD B650 | AMD B650 | AMD B550 | AMD B550 |
| M.2 slots | — | — | 1 | 2 |
