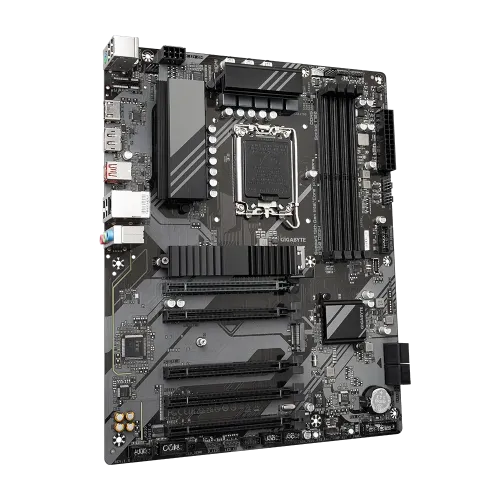

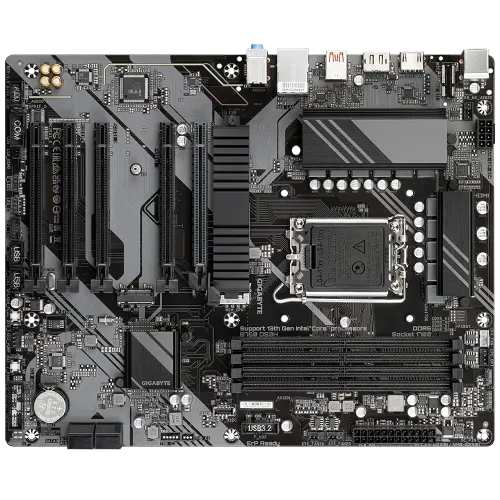

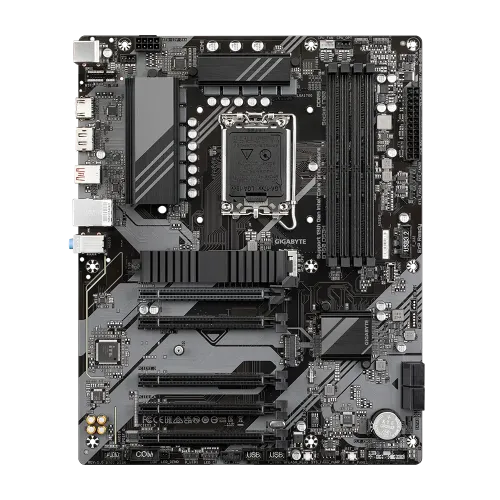

GIGABYTE B760 DS3H ATX Motherboard

Name: GIGABYTE B760 DS3H ATX Motherboard
Brand: GIGABYTE
Price: 18200 BDT
Availability: OutOfStock

Model: B760 DS3HItem #: gigabyte-b760-ds3h-motherboard

৳18,200

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
ATX Form Factor; 30.5cm x 24.4cm;

Overview

The GIGABYTE B760 DS3H is an ATX motherboard designed for Intel Socket LGA 1700, providing support for both 14th, 13th, and 12th-Gen Series Processors. Its unparalleled performance is ensured by a Hybrid 6+2+1 Phases Digital VRM Solution, while the Dual Channel DDR5 with 4 DIMMs offers XMP Memory Module support for enhanced memory capabilities. The 14th Gen Motherboard also features next-generation storage with 2 PCIe 4.0 x4 M.2 Connectors, equipped with an M.2 Thermal Guard to maintain optimal M.2 SSD performance. GIGABYTE B760 DS3H offers convenient features like an EZ-Latch PCIe 4.0 x16 Slot with Quick Release Design, Fast 2.5GbE LAN for reliable network connectivity, and extended connectivity options with Rear USB-C 10Gb/s, DP, and HDMI ports. The Smart Fan 6 technology ensures efficient cooling with multiple temperature sensors and hybrid fan headers with FAN STOP, while the Q-Flash Plus feature allows for BIOS updates without the need to install the CPU, memory, and graphics card.

Specifications

Chipset: Intel B760 Express Chipset
RAM type: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: ATX Form Factor; 30.5cm x 24.4cm;
Memory — Type: DDR5
Memory — Slots: 4
Highlights — Model: B760 DS3H
Graphics — Graphics: Integrated Graphics Processor-Intel HD Graphics support:; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3.; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3
Expansion Slots — PCI: CPU:; 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1; (PCIEX1_1, PCIEX1_3~PCIEX1_5)

Show all 27 specifications

Highlights — Features: GbE LAN
Memory — Maximum Memory: up to 192 GB (48 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)

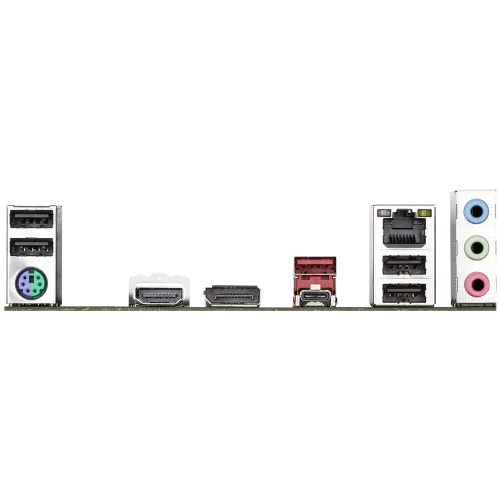

Connector & Ports — USB (s): Chipset:; 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support; 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header; 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; 2 x USB 3.2 Gen 1 ports available through the internal USB header; 4 x USB 2.0/1.1 ports on the back panel; Chipset+2 USB 2.0 Hubs:; 4 x USB 2.0/1.1 ports available through the internal USB headers;
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with the CPU
Connector & Ports — Display Port (s): 1x DisplayPort
Connector & Ports — Supported Storage: CPU:; 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x Q-Flash Plus button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumpe
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
