MSI PRO B860M-E LGA 1851 mATX Motherboard

Name: MSI PRO B860M-E LGA 1851 mATX Motherboard
Brand: MSI
Price: 18200 BDT
Availability: InStock

Model: PRO B860M-EItem #: msi-pro-b860m-e-motherboard

৳18,200~~৳18,900~~Save 4%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

INTEL B860 Chipset
2 M.2 slots
Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9066+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM RAM type
mATX; 220mmx243.84mm Form factor

Overview

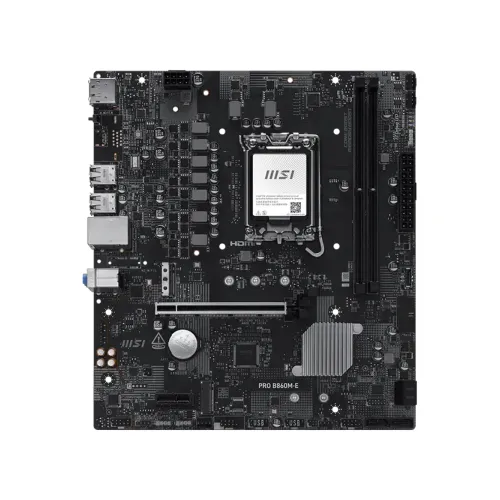

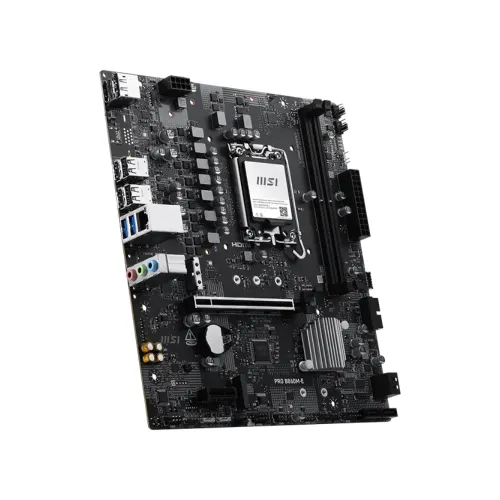

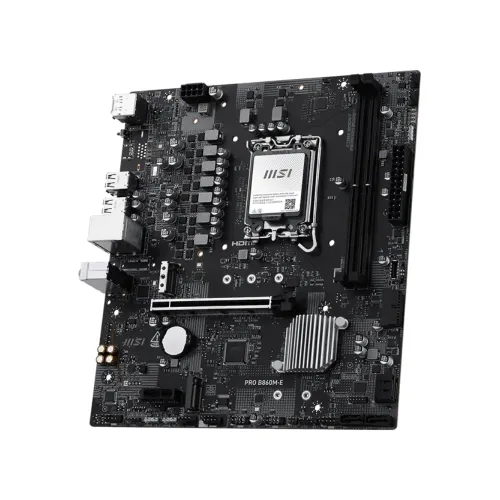

The MSI PRO B860M-E LGA 1851 mATX Motherboard comes with advanced Intel B860 chipset . This Motherboard supports Intel Core Ultra Processors Series 2 through the advanced LGA 1851 socket. This MSI mATX Motherboard supports dual-channel DDR5 memory with two UDIMM slots and maximum memory capacity support up to 128GB. MSI DDR5 Motherboard technology supports DDR5 overclocking speeds from 9066 MT/s to 6400 MT/s and JEDEC speeds from 6400 MT/s to 4800 MT/s.

The MSI PRO B860M-E Motherboard supports Intel XMP 3.0, memory overclocking, non-ECC unbuffered memory, dual-controller dual-channel mode, and modern CUDIMM memory compatibility. This MSI LGA 1851 Motherboard achieves maximum overclocking speeds up to 9066+ MT/s for 1DPC 1R memory and 7200+ MT/s for 1DPC 2R memory. MSI PRO B860M-E LGA 1851 mATX Motherboard includes HDMI 2.1 and DisplayPort 1.4 outputs supporting smooth 4K 60Hz visual performance for professional and multimedia applications.

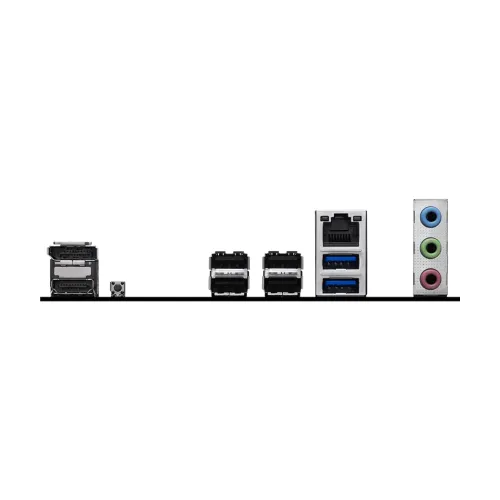

The motherboard provides one PCIe 5.0 x16 slot from the CPU and one PCIe 4.0 x1 slot from the chipset for expansion flexibility. MSI PRO B860M-E Motherboard offers two M.2 slots supporting PCIe 5.0 x4 and PCIe 4.0 x4 SSD storage alongside four SATA 6G ports. MSI Motherboard connectivity includes Realtek 8126 5Gbps LAN, USB 10Gbps Type-C, multiple USB 5Gbps Type-A ports, and convenient front USB connectivity.

Realtek ALC897 7.1-channel high-definition audio provides immersive sound quality for gaming, entertainment, and productivity workflows with reliable audio clarity. MSI PRO B860M-E mATX Motherboard also features EZ Debug LEDs, TPM 2.0 support, RGB connectors, efficient cooling headers, and Windows 11 compatibility within a compact 220mm x 243.84mm design.

Specifications

Chipset: INTEL B860
M.2 slots: 2
RAM type: Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9066+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM
Form factor: mATX; 220mmx243.84mm
Memory — Type: DDR5
Memory — Slots: 2x UDIMM
Highlights — Model: PRO B860M-E
Graphics — Graphics: 1x HDMI 2.1; 1x DisplayPort 1.4

Show all 25 specifications

Compare with similar products

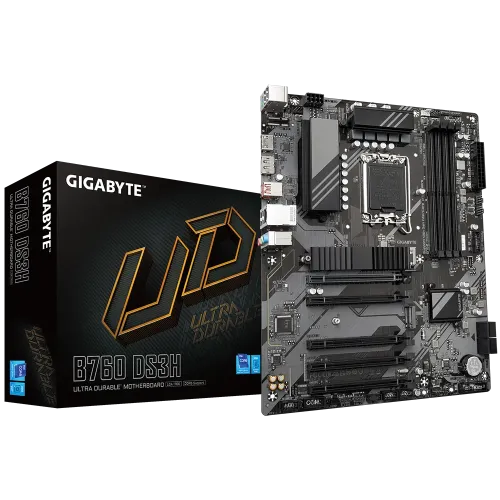

	This itemMSI PRO B860M-E LGA 1851 mATX Motherboard	ASRockASRock B650M PG Lightning AM5 Micro ATX Motherboard	GIGABYTEGIGABYTE B760M GAMING DDR4 Micro ATX Motherboard	GIGABYTEGIGABYTE B760 DS3H ATX Motherboard
Price	৳18,200	৳18,000	৳18,100	৳18,200
Availability	In stock	Out of stock	Out of stock	Out of stock
Brand	MSI	ASRock	GIGABYTE	GIGABYTE
M.2 slots	2	—	—	—
RAM type	Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9066+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM	- Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC); - Max. capacity of system memory: 256GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	mATX; 220mmx243.84mm	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm	Micro ATX Form Factor; 24.4cm x 22.5cm	ATX Form Factor; 30.5cm x 24.4cm;
Chipset	INTEL B860	AMD B650	Intel B760 Express Chipset	Intel B760 Express Chipset
