GIGABYTE B760M AORUS ELITE AX DDR4 14th & 13th Gen mATX Motherboard

Name: GIGABYTE B760M AORUS ELITE AX DDR4 14th & 13th Gen mATX Motherboard
Brand: GIGABYTE
Price: 23000 BDT
Availability: OutOfStock

Model: B760M AORUS ELITE AX DDR4Item #: gigabyte-b760m-aorus-elite-ax-ddr4-motherboard

৳23,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
1 M.2 slots
Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

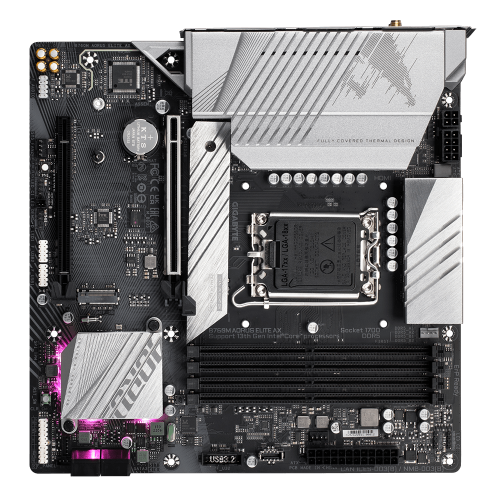

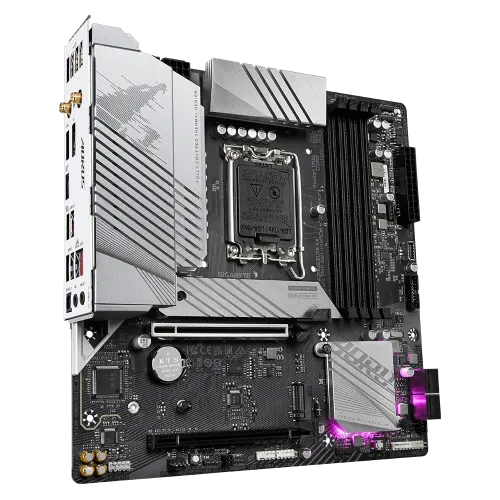

The GIGABYTE B760M AORUS ELITE AX DDR4 Motherboard is a Micro ATX motherboard that supports Intel Socket LGA 1700 and 14th, 13th and 12th Generation Intel Series Processors. It offers a Twin 12*+1+1 Phases Digital VRM Solution for exceptional performance. The motherboard supports dual-channel DDR4 memory and 4 DIMMs with XMP Memory Module. It also has next-generation storage, including two PCIe 4.0 x4 M.2 connectors. VRM power stability and M.2 SSD performance are ensured by Advanced Thermal Design and M.2 Thermal Guard. The M.2 connections' EZ-Latch Plus design allows for rapid release and screwless installation. 2.5GbE LAN with Intel Wi-Fi 6E 802.11ax deliver fast networks. The motherboard also has front USB-C 10Gb/s, back USB-C 20Gb/s, DP, and HDMI connections. Smart Fan 6 comes with numerous temperature sensors as well as hybrid fan headers with fan stops. The Q-Flash Plus enables simple BIOS changes without the need for a new CPU, RAM, or graphics card.

Buy GIGABYTE B760M AORUS ELITE AX DDR4 14th & 13th Gen mATX Motherboard from the best Motherboard Shop in BD

Specifications

Chipset: Intel B760 Express Chipset
M.2 slots: 1
RAM type: Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR4
Memory — Slots: 4
Highlights — Model: B760M AORUS ELITE AX DDR4
Graphics — Graphics: Integrated Graphics Processor-Intel HD Graphics support:; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Show all 28 specifications

Expansion Slots — PCI: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16); 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Highlights — Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
Connector & Ports — Audio: 1 x front panel audio header; 2 x audio jacks
Others — Special Features: 2 x addressable LED strip headers; 2 x RGB LED strip headers; iTE I/O Controller Chip; Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR4, Max 128GB 5333(OC)

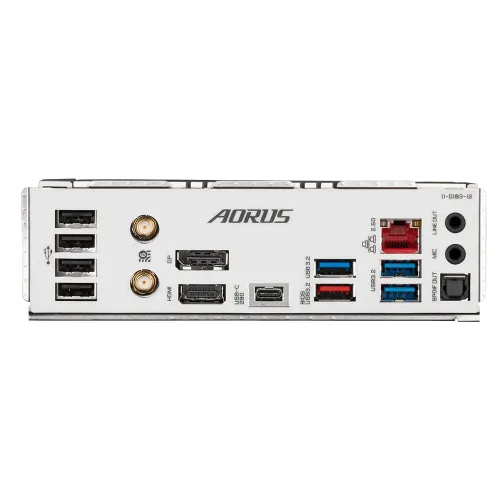

Connector & Ports — USB (s): 1 x USB Type-C port, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 2 Type-A port (red); 4 x USB 3.2 Gen 1 port; 4 x USB 2.0/1.1 ports
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps); 1 x RJ-45 port
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core,; Pentium Gold and Celeron Processors; L3 cache varies with the CPU
Connector & Ports — Display Port (s): 1x DisplayPort
Connector & Ports — Supported Storage: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB); 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x reset button; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Intel Wi-Fi 6E AX211; WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate;
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
