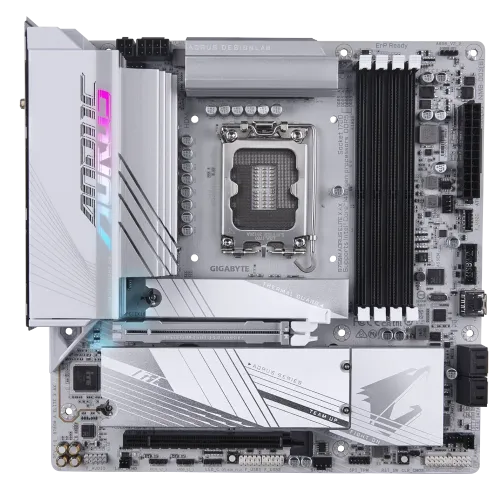

GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard

Name: GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard
Brand: GIGABYTE
Price: 25800 BDT
Availability: OutOfStock

Model: B760M AORUS ELITE X AXItem #: gigabyte-b760m-aorus-elite-x-ax-motherboard

৳25,800

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
1 M.2 slots
8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in; non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard is the pinnacle of performance and versatility, with its LGA1700 socket catering to 14th, 13th, and 12th generation Intel processors. Its robust construction ensures smooth compatibility with the newest computing powerhouses. It holds up to 128GB of DDR5 RAM, clocked at an incredible 7600MHz (OC) for unequaled memory bandwidth, in four slots. With one HDMI and one DisplayPort connection, this motherboard provides flexible connectivity options for clear displays and lifelike graphics. Thanks to technologies like the Realtek 2.5GbE LAN chip and Intel Wi-Fi 6E AX211, it delivers lightning-fast networking capabilities required for online gaming and multimedia streaming. With a digital twin 14+1+1 phases VRM solution and dual-channel DDR5 support, this motherboard ensures stable power delivery and memory performance. Its PCIe UD Slot X provides increased strength for graphics cards, and its EZ-Latch Click and EZ-Latch Plus features make it easy to install and remove PCIe slots and M.2 heatsinks. While the UC BIOS offers a simple user interface with Quick Access features, the Sensor Panel Link streamlines the setup process for in-chassis panels. With features like extended connectivity options, fast networking capabilities, efficient thermal management solutions, ultra-fast storage options, and dependable audio output, the GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard is designed for enthusiasts and professionals who demand the best possible performance, dependability, and flexibility from their computing experience.

Buy GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard from the best Motherboard Shop in BD

Specifications

Chipset: Intel B760 Express Chipset
M.2 slots: 1
RAM type: 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in; non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4
Highlights — Model: B760M AORUS ELITE X AX
Graphics — Graphics: Integrated Graphics Processor-Intel HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.; ; ; - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz; * Support for HDMI 1.4.; ; ; - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3

Show all 28 specifications

Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); ; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Highlights — Features: Realtek 2.5GbE LAN chip, Realtek Wi-Fi 6E RTL8852CE
Memory — Maximum Memory: 192GB
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 2x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 1 x front panel audio header; 2 x audio jacks
Others — Special Features: 2 x addressable LED strip headers; 2 x RGB LED strip headers; iTE I/O Controller Chip; Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR5, Max 128GB 8266(OC)
Connector & Ports — USB (s): Chipset:; - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support; - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the; internal USB header; - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; - 1 x USB 3.2 Gen 1 ports on the back panel; - 4 x USB 2.0/1.1 ports available through the internal USB headers; Chipset+USB 3.2 Gen 1 Hub:; - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back panel
Highlights — Graphics Output: 2x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,; Pentium Gold and Celeron Processors; L3 cache varies with the CPU
Connector & Ports — Display Port (s): 1x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); - 4 x SATA 6Gb/s connectors

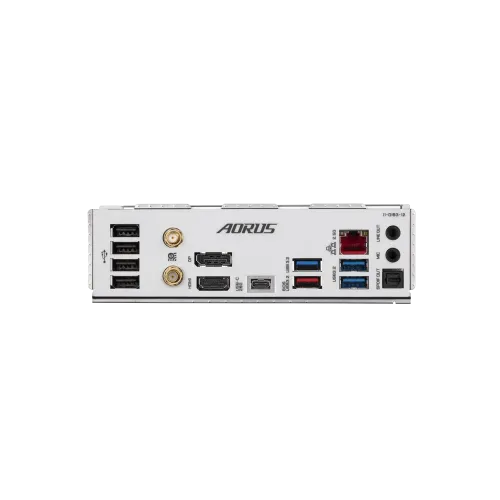

Connector & Ports — Internal I/O Ports: internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt add-in card connectors; 1 x HDMI port; 1 x Q-Flash Plus button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors; 2 x SMA antenna connectors (2T2R); 1 x USB Type-C port, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 2 Type-A port (red); 3 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x HDMI port; 1 x DisplayPort; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 2 x audio jacks
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0/1.2); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; Intel Wi-Fi 6E AX211 (For PCB rev. 1.1/1.3); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard;
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard	AsusMSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard	ASRockASRock B850M STEEL LEGEND WIFI AM5 DDR5 mATX Motherboard	MSIMSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
Price	৳25,800	৳25,900	৳26,000	৳26,000
Availability	Out of stock	Out of stock	In stock	Out of stock
Brand	GIGABYTE	Asus	ASRock	MSI
M.2 slots	1	3	1	—
RAM type	8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in; non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 8800+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; ; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM	Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules	Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile
Form factor	Micro ATX Form Factor; 24.4cm x 24.4cm	mATX Form Factor; 243.84mmx243.84mm	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; 2oz Copper PCB	ATX; 243.84mmx304.8mm
Chipset	Intel B760 Express Chipset	INTEL B860	AMD B850	INTEL B760
