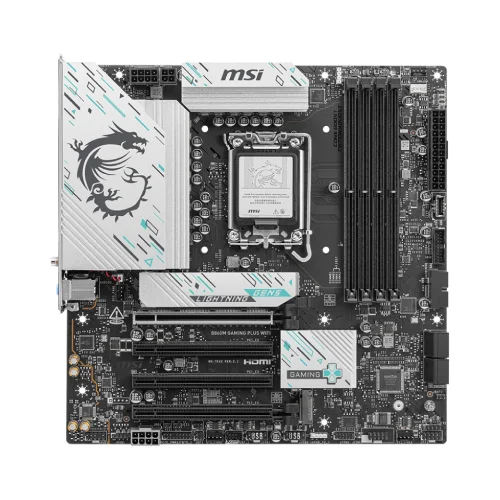

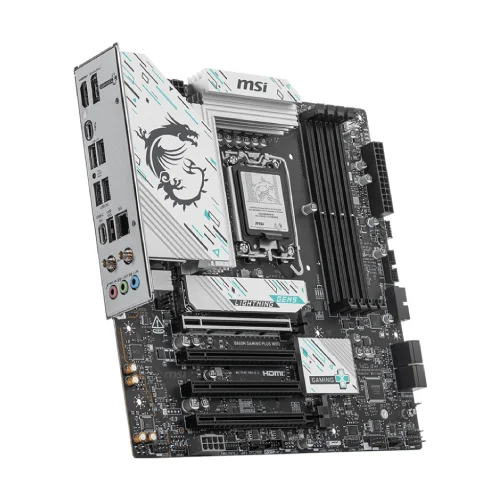

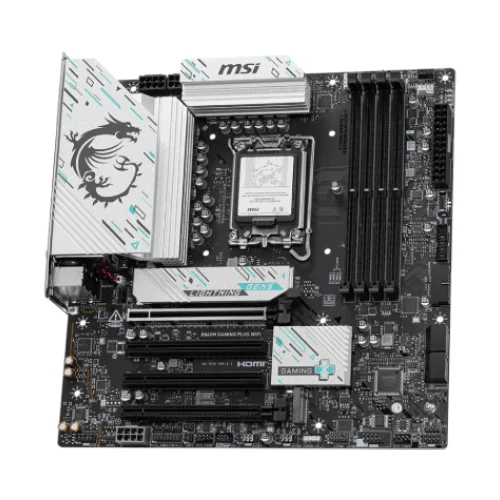

MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard

Name: MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard
Brand: Asus
Price: 25900 BDT
Availability: OutOfStock

Model: B860M GAMING PLUS WIFIItem #: msi-b860m-gaming-plus-wifi-matx-motherboard

৳25,900

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

INTEL B860 Chipset
3 M.2 slots
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 8800+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; ; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM RAM type
mATX Form Factor; 243.84mmx243.84mm

Overview

MSI B860M GAMING PLUS WIFI LGA 1851 ATX Motherboard

Introducing the MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard, an exclusive MSI motherboard designed for discerning gamers and professionals that require unsurpassed performance, reliable connection, and comprehensive customization options all in a compact chassis. As a premium MSI Intel Motherboard, it is built on the Intel B860 chipset and supports Intel Core Ultra Processors via the LGA 1851 socket, providing users with top-tier processing power and DDR5 memory speeds of up to 8600+ MT/s across four UDIMM slots for seamless multitasking and dynamic overclocking. This MSI 860 motherboard provides versatile storage options with multiple M.2 slots, including a flagship PCIe 5.0 x4 slot for cutting-edge NVMe SSDs, as well as additional PCIe 4.0 slots and SATA 6Gb/s connectors, making it adaptable to a wide range of storage requirements while also fitting perfectly into space-constrained builds. This flagship grade MSI WiFi Motherboard boasts next-generation Intel Wi-Fi 7 technology and a high-speed Realtek LAN connection (up to 5Gbps), ensuring reliable and fast networking for home and professional installations. With a strong 12+1+1+1 phase VRM that includes MSI's patented Core Boost technology and superior cooling solutions like the exclusive EZ M.2 Shield Frozr II, this board keeps operating temperatures stable even during the most intense gaming sessions and workloads.The MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard is a future-proof solution that redefines modern computing by delivering a harmonious blend of power, efficiency, and next-generation connectivity in a streamlined, space-saving form factor. This MSI motherboards multimedia performance is further enhanced by a dedicated Thunderbolt 4 port via USB Type-C, as well as multiple display outputs such as HDMI 2.1 and DisplayPort 1.4.Demanding game sessions and workloads.

Specifications

Chipset: INTEL B860
M.2 slots: 3
RAM type: Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 8800+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; ; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM
Form factor: mATX Form Factor; 243.84mmx243.84mm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: B860M GAMING PLUS WIFI
Graphics — Graphics: 1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz*; 1x Type-C DisplayPort; Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Show all 25 specifications

Expansion Slots — PCI: 4x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset); PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Highlights — Features: 3x M.2, Intel Killer E5000 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
Memory — Maximum Memory: Maximum Memory Capacity 256GB
Connector & Ports — HDMI: 1x HDMI 2.1
Connector & Ports — RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Basic Information — Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Connector & Ports — Audio: 1x Front Audio (JAUD)
Highlights — Supported RAM: 4x DDR5, Max 256GB, 8800+ MT/s (OC)

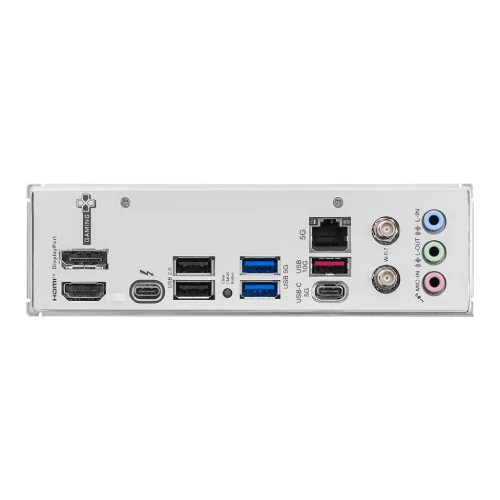

Connector & Ports — USB (s): 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 1x USB 5Gbps Type C (Rear); 4x USB 5Gbps Type A (Front); 1x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C (Thunderbolt 4)
Connector & Ports — LAN Port (s): Intel Killer E5000 5Gbps LAN
Basic Information — Supported CPU: Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Connector & Ports — Display Port (s): 1x DisplayPort 1.4a
Connector & Ports — Supported Storage: 3x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices; 4x SATA 6G
Connector & Ports — Internal I/O Ports: 1x Thunderbolt5 card connector(JTBT5, support RTD3); 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 3x System Fan; 1x EZ Conn-header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
Warranty Information — Manufacturing Warranty: 3 Year warranty
Connector & Ports — Wireless Communication module: Intel Killer BE1750x Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth 5.4**, MLO, 4KQAM

Compare with similar products

	This itemMSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard	GIGABYTEGIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard	ASRockASRock B850M STEEL LEGEND WIFI AM5 DDR5 mATX Motherboard	MSIMSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard
Price	৳25,900	৳25,800	৳26,000	৳26,000
Availability	Out of stock	Out of stock	In stock	Out of stock
Brand	Asus	GIGABYTE	ASRock	MSI
M.2 slots	3	1	1	—
RAM type	Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 8800+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; ; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM	8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in; non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules	Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile
Form factor	mATX Form Factor; 243.84mmx243.84mm	Micro ATX Form Factor; 24.4cm x 24.4cm	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; 2oz Copper PCB	ATX; 243.84mmx304.8mm
Chipset	INTEL B860	Intel B760 Express Chipset	AMD B850	INTEL B760
