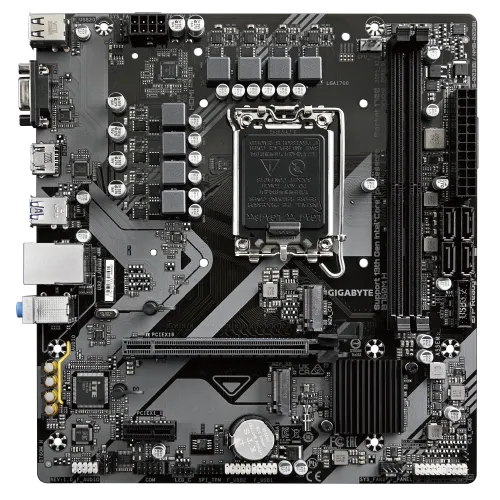

GIGABYTE B760M H DDR5 Micro ATX Motherboard

Name: GIGABYTE B760M H DDR5 Micro ATX Motherboard
Brand: GIGABYTE
Price: 14100 BDT
Availability: OutOfStock

Model: B760M H DDR5Item #: gigabyte-b760m-h-ddr5-motherboard

৳14,100

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 23.0cm x 21.5cm

Overview

The GIGABYTE B760M H DDR5 Micro ATX motherboard is a versatile and feature-rich platform designed for enthusiasts and mainstream users alike. It supports 14th, 13th, and 12th Gen Intel processors via the LGA1700 socket, providing a future-proof foundation for various computing needs. With support for up to 128GB of DDR5 RAM across two DIMM slots, this motherboard can handle memory speeds up to 8000 MHz when overclocked, ensuring smooth multitasking and high performance. The motherboard includes both HDMI and D-Sub ports for flexible graphics output options, catering to different display setups. Equipped with a Realtek GbE LAN chip, the GIGABYTE B760M H ensures reliable network connectivity with speeds up to 1 Gbps. The power delivery system features a Hybrid 6+1+1 Phases Digital VRM Solution, providing stable power to the CPU and other critical components. For storage, the motherboard offers two PCIe 4.0 x4 M.2 connectors, enabling fast data transfer rates for SSDs. The EZ-Latch PCIe 4.0x16 Slot with a quick-release design simplifies hardware upgrades and installations. Cooling is efficiently managed with the Smart Fan 6 system, which includes multiple temperature sensors and hybrid fan headers, along with a fan stop feature for quieter operation. Overall, the GIGABYTE B760M H DDR5 Micro ATX motherboard delivers a compelling blend of performance, connectivity, and advanced features, making it an excellent choice for gamers, content creators, and power users looking for a reliable and powerful base for their PC builds.

Specifications

Chipset: Intel B760 Express Chipset
RAM type: Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 23.0cm x 21.5cm
Memory — Type: DDR5
Memory — Slots: 2
Highlights — Model: B760M H DDR5
Graphics — Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports.
Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; * The PCIEX16 slot can only support a graphics card or an NVMe SSD.; ; ; Chipset:; - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Show all 27 specifications

Highlights — Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Memory — Maximum Memory: Sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash
Highlights — Supported RAM: 2 x DDR5, Max 128GB 8000(O.C.)
Connector & Ports — USB (s): Chipset:; - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header); - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Highlights — Graphics Output: 1x HDMI, 1 x D-Sub
Connector & Ports — D-Sub (s): 1 x D-Sub port
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with the CPU
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); - 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x Clear CMOS jumper; ; Back Panel Connectors; 2 x USB 2.0/1.1 ports; 1 x D-Sub port; 1 x HDMI port; 4 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
