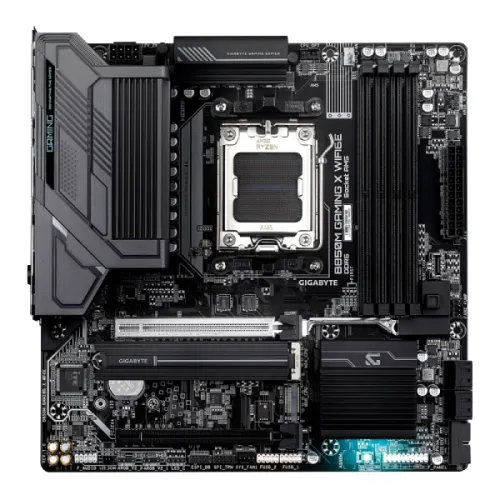

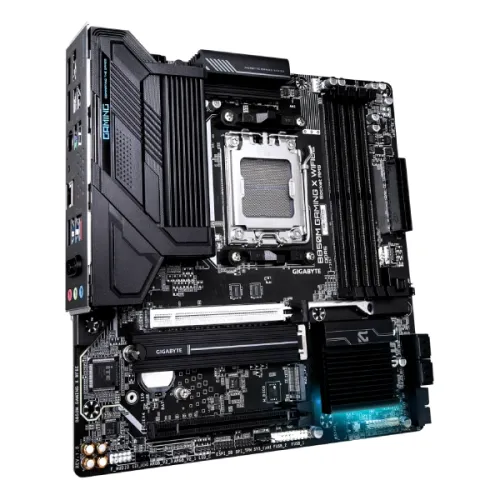

GIGABYTE B850M GAMING X WIFI6E AMD AM5 DDR5 Micro ATX Motherboard

Name: GIGABYTE B850M GAMING X WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
Brand: GIGABYTE
Price: 30300 BDT
Availability: InStock

Model: B850M GAMING X WIFI6EItem #: gigabyte-b850m-gaming-x-wifi6e-motherboard

৳30,300~~৳31,000~~Save 2%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
1 M.2 slots
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE B850M GAMING X WIFI6E motherboard supports AMD Ryzen 9000, 8000, and 7000 processors with the AM5 socket. With four DDR5 DIMM slots, it can accommodate up to 256GB of RAM at rates of up to 8200 MT/s when overclocked, delivering outstanding memory bandwidth for demanding workloads. Users can use AMD EXPO and XMP profiles to optimize system memory for greater stability and speed. The GIGABYTE B850M GAMING X WIFI6E AM5 Micro ATX Motherboard has PCIe 5.0 and 4.0 expansion slots, making it excellent for high-performance GPUs and NVMe SSDs. Storage options include two M.2 slots for PCIe 5.0 and PCIe 4.0 SSDs, as well as four SATA 6Gb/s connections with RAID 0, 1, 5, and 10 support for improved data redundancy and performance. HDMI 2.1 and DisplayPort 1.4 are supported by the integrated graphics, enabling for up to three displays with high refresh rates. The GIGABYTE B850M GAMING X WIFI6E Motherboard's Realtek 2.5GbE LAN and Wi-Fi 6E with Bluetooth 5.3 enable fast networking for flawless online gaming and streaming. Multiple USB 3.2 Gen 2 and USB Type-C connections enable quick data transfers and peripheral connectivity. A Realtek audio codec powers high-definition audio, which supports 7.1-channel surround sound. GIGABYTE B850M GAMING X WIFI6E AMD AM5 DDR5 Micro ATX Motherboard also includes sophisticated cooling solutions, various RGB headers, and support for GIGABYTE Control Center, which allows for simple system customization.

Specifications

Chipset: AMD B650
M.2 slots: 1
RAM type: Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 DIMMs
Highlights — Model: B850M GAMING X WIFI6E
Graphics — Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3, and HDR.; ** Support for native HDMI 2.1 TMDS compatible ports.; - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; (Graphics specifications may vary depending on CPU support.); Support for up to triple-display at the same time

Show all 29 specifications

Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Highlights — Features: 2x M.2 Slot, Realtek 2.5GbE LAN, Realtek Wi-Fi 6E RTL8852CE
Memory — Maximum Memory: Up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; * RAID 5 is only available on AMD Ryzen 9000 Series Processors.; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton® Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Highlights — Supported RAM: 4x DDR5, up to 256GB, 8200(OC)
Connector & Ports — USB (s): CPU:; - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support; - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; CPU+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back panel; Chipset:; - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header; - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 2x Display Port, 1 x HDMI
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for:; AMD Ryzen 9000 Series Processors; AMD Ryzen 8000 Series Processors; AMD Ryzen 7000 Series Processors
Connector & Ports — Display Port (s): 2 x DisplayPorts
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; ; 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs; 4 x SATA 6Gb/s connectors

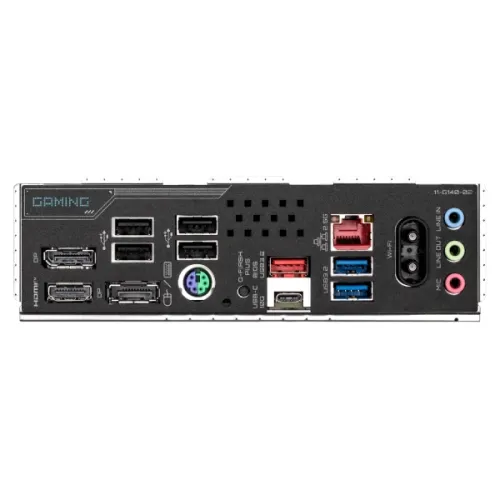

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 1 x system fan header; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 4 x SATA 6Gb/s connectors; 2 x M.2 Socket 3 connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors; 1 x HDMI port (Note); 2 x DisplayPorts (Note); 1 x Q-Flash Plus button; 1 x PS/2 keyboard/mouse port; 1 x USB 3.2 Gen 2 Type-A ports (red); 1 x USB Type-C® port, with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 2 x antenna connectors (2T2R); 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Realtek Wi-Fi 6E RTL8852CE; - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; (Actual data rate may vary depending on environment and equipment.)
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
