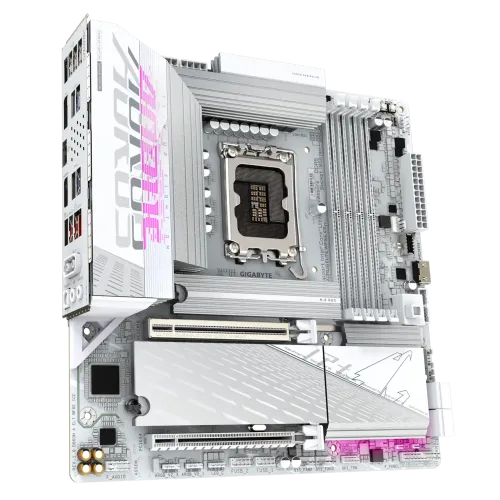

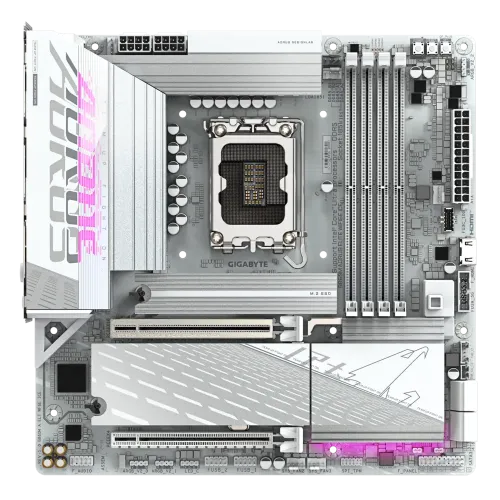

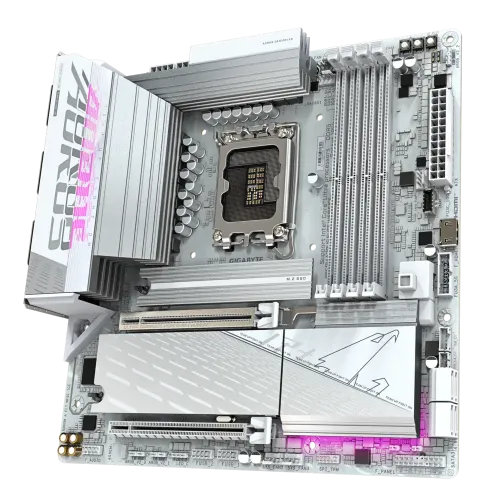

GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard

Name: GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard
Brand: GIGABYTE
Price: 33900 BDT
Availability: InStock

Model: B860M AORUS ELITE WIFI6E ICEItem #: gigabyte-b860m-aorus-elite-wifi6e-ice-motherboard

৳33,900~~৳34,500~~Save 2%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B860 Express Chipset
1 M.2 slots
Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE BB860M AORUS ELITE WIFI6E ICE Micro ATX Motherboard is a powerhouse designed to maximize performance for Intel Core Ultra Processors, featuring the LGA1851 socket and Intel B860 Express Chipset. This powerful GIGABYTE Motherboard supports up to 256 GB of DDR5 memory, reaching speeds up to 9200 MT/s OC, with dual-channel architecture and XMP memory profile support. The GIGABYTE B860M AORUS ELITE WIFI6E ICE Motherboard delivers stunning visuals with USB4 Type-C, DisplayPort 2.1, and HDMI 2.1 outputs, enabling up to quad-display at 4K resolutions. For connectivity, it boasts Intel Wi-Fi 6E, Realtek 2.5GbE LAN, and Bluetooth 5.3, ensuring lightning-fast networking. Expansion is seamless with PCIe 5.0 x16 for graphics cards or NVMe SSDs, alongside two PCIe 4.0 slots for added flexibility. Storage options are diverse, offering three M.2 connectors for PCIe 5.0 and 4.0 SSDs plus four SATA 6Gb/s ports with RAID support. This GIGABYTE B860M AORUS ELITE WIFI6E ICE Micro ATX also excels in USB connectivity, featuring USB4, USB 3.2 Gen 2, and USB 3.2 Gen 1 ports for high-speed peripherals. Immerse yourself in superior audio with Realtek 7.1-channel HD Audio and S/PDIF Out. Additional features include customizable RGB lighting, advanced cooling support, Q-Flash Plus for easy BIOS updates, and Windows 11 compatibility. With its sleek Micro ATX form factor, measuring 24.4 cm x 24.4 cm, the GIGABYTE B860M AORUS ELITE WIFI6E ICE Micro ATX Motherboard is the perfect blend of power and versatility for gamers and creators alike.

Specifications

Chipset: Intel B860 Express Chipset
M.2 slots: 1
RAM type: Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: B860M AORUS ELITE WIFI6E ICE
Graphics — Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.; ; ; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.; ; ; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ; ; - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz; * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.); ; ; Support for up to quad-display at the same time

Show all 29 specifications

Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); ; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Highlights — Features: 3x M.2, Wi-Fi 6E, Bluetooth 5.3
Memory — Maximum Memory: Up to 256 GB (64 GB single DIMM capacity)
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 2 x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 1 x front panel audio header; 2 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Highlights — Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Connector & Ports — USB (s): CPU:; - 1 x USB4 USB Type-C port on the back panel; Chipset:; - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; Chipset+USB 3.2 Gen 1 Hub:; - 4 x USB 3.2 Gen 1 ports on the back panel; Chipset+2 USB 2.0 Hubs:; - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Highlights — Graphics Output: 2x HDMI, 1x DisplayPort, 1 x USB4 USB Type-C port
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: Intel Core Ultra Processors; L3 cache
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB); - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB); - 4 x SATA 6Gb/s connectors

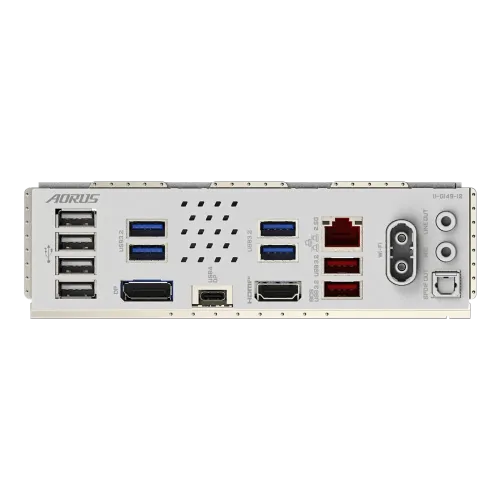

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt™ add-in card connectors; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x HDMI port*; 1 x power button; 1 x reset button; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors:; 4 x USB 2.0/1.1 ports; 4 x USB 3.2 Gen 1 ports; 1 x DisplayPort*; 1 x USB4® USB Type-C® port (DisplayPort*); 1 x HDMI port*; 1 x RJ-45 port; 2 x USB 3.2 Gen 2 Type-A ports (red); 2 x antenna connectors (2T2R); 2 x audio jacks; 1 x optical S/PDIF Out connector
Warranty Information — Manufacturing Warranty: 3 Year Warranty
Connector & Ports — Wireless Communication module: Intel Wi-Fi 6E AX211 (PCB rev. 1.0); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; ; Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; (Actual data rate may vary depending on environment and equipment.)
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard	GIGABYTEGIGABYTE B850M AORUS ELITE WIFI6E ICE AMD AM5 DDR5 Micro ATX Motherboard	GIGABYTEGigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard	ASRockASRock B850 STEEL LEGEND WIFI AM5 DDR5 ATX Motherboard
Price	৳33,900	৳33,800	৳33,900	৳34,000
Availability	In stock	In stock	In stock	Out of stock
Brand	GIGABYTE	GIGABYTE	GIGABYTE	ASRock
M.2 slots	1	1	1	1
RAM type	Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module	- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form factor	Micro ATX Form Factor; 24.4cm x 24.4cm	Micro ATX Form Factor; 24.4cm x 24.4cm	ATX Form Factor; 30.5cm x 24.4cm	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 8 Layer PCB
Chipset	Intel B860 Express Chipset	AMD B650	Intel Z890 Express Chipset	AMD B850
