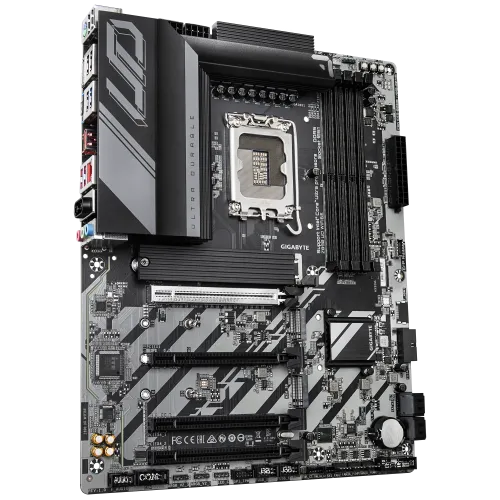

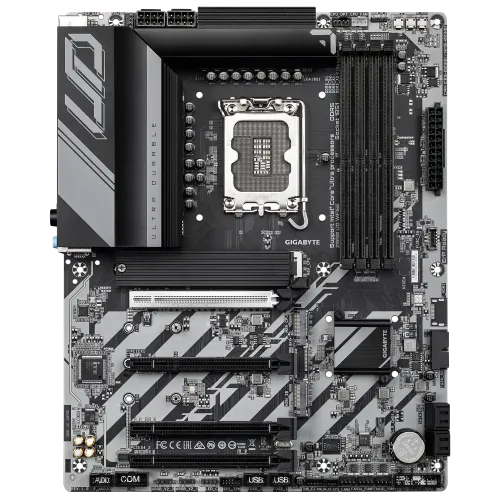

Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard
Model: Z890 UD WIFI6EItem #: gigabyte-z890-ud-wifi6e-lga-1851-motherboard
৳33,900৳36,350Save 7%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel Z890 Express Chipset
- 1 M.2 slots
- Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module RAM type
- ATX Form Factor; 30.5cm x 24.4cm
Overview
The Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard supports Intel Core Ultra CPUs (Series 2), providing great performance and dependability for gaming and professional applications. This motherboard supports up to 256 GB of DDR5 memory across four DIMM slots with XMP compatibility, and it boasts a digital twin 12+1+2 phases VRM system and D5 Bionic Corsa for unmatched memory performance. Advanced features include AI Perfdrive for BIOS preset optimization and an intuitive interface with multi-theme, AIO fan control, and Q-Flash auto scan capabilities. With three M.2 slots, including one PCIe 5.0 x4 slot, the Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard offers incredibly quick storage options. USB4 Type-C, DisplayPort, and effective networking features such as Wi-Fi 6E 802.11ax and 2.5GbE LAN improve connectivity. For better cooling, the effective thermal design incorporates M.2 Thermal Guard and VRM Thermal Armor Advanced. Strong expansion capabilities include a variety of internal I/O connectors, such as RGB headers and fan headers, and several PCIe slots that support different configurations. Intel HD Graphics with USB4 and DisplayPort outputs are supported by the onboard graphics. The Realtek Audio CODEC manages audio and produces multi-channel, high-definition sound. For high-performance setups, the Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard is a great option because it is dependable and supports both ECC and non-ECC memory modules. Usability is further improved by extra features such as the new power monitor in HWinfo for real-time CPU power phase monitoring and the EZ-Latch PCIe x16 slot for simple GPU installation. A complete and potent base for any sophisticated PC design, the Gigabyte Z890 UD WIFI6E LGA 1851 ATX motherboard is compatible with Windows 11 64-bit and includes pre-installed applications such as Norton Internet Security.
Specifications
- Chipset
- Intel Z890 Express Chipset
- M.2 slots
- 1
- RAM type
- Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module
- Form factor
- ATX Form Factor; 30.5cm x 24.4cm
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- Z890 UD WIFI6E
- Graphics — Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
- Highlights — Features
- 3x M.2 slots, Wi-Fi 6E, Bluetooth 5.3
- Memory — Maximum Memory
- up to 256 GB (64 GB single DIMM capacity) of system memory
- Basic Information — BIOS
- 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Connector & Ports — Audio
- 3 x audio jacks
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
- Highlights — Supported RAM
- 4x DDR5, Max 256GB, Supports Up to 9200 (O.C)
- Highlights — Graphics Output
- 1x USB4 USB Type-C, 1x DisplayPort
- Connector & Ports — LAN Port (s)
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Basic Information — Supported CPU
- LGA1851 socket: Support for Intel Core Ultra Processors; L3 cache varies with CPU
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- CPU:; - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU); - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB); - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB); - 4 x SATA 6Gb/s connectors
- Connector & Ports — Internal I/O Ports
- 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 2 x system fan headers; 2 x system fan/water cooling pump headers; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt™ add-in card connectors; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x power button; 1 x reset button; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; 4 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x DisplayPort (Note); 4 x USB 3.2 Gen 1 ports; 1 x USB4® USB Type-C® port (DisplayPort (Note)); 1 x USB 3.2 Gen 2 Type-A port (red); 1 x RJ-45 port; 2 x SMA antenna connectors (2T2R); 3 x audio jacks
- Warranty Information — Manufacturing Warranty
- 3 Year
- Connector & Ports — Wireless Communication module
- Intel® Wi-Fi 6E AX211 (PCB rev. 1.0); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; (Actual data rate may vary depending on environment and equipment.)
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
Compare with similar products
 This itemGigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard |  GIGABYTEGIGABYTE B850M AORUS ELITE WIFI6E ICE AMD AM5 DDR5 Micro ATX Motherboard |  GIGABYTEGIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard |  ASRockASRock B850 STEEL LEGEND WIFI AM5 DDR5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳33,900 | ৳33,800 | ৳33,900 | ৳34,000 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | GIGABYTE | GIGABYTE | GIGABYTE | ASRock |
| M.2 slots | 1 | 1 | 1 | 1 |
| RAM type | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules | - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Form factor | ATX Form Factor; 30.5cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 8 Layer PCB |
| Chipset | Intel Z890 Express Chipset | AMD B650 | Intel B860 Express Chipset | AMD B850 |
