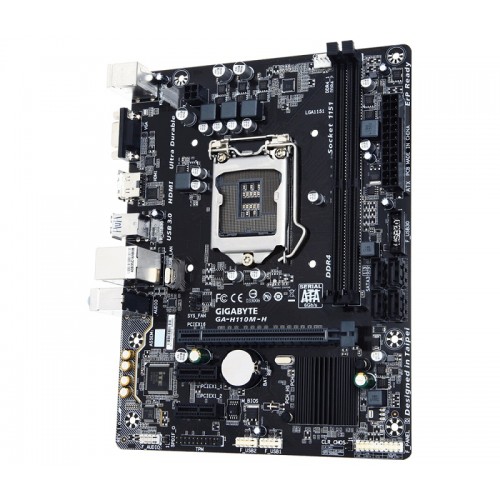

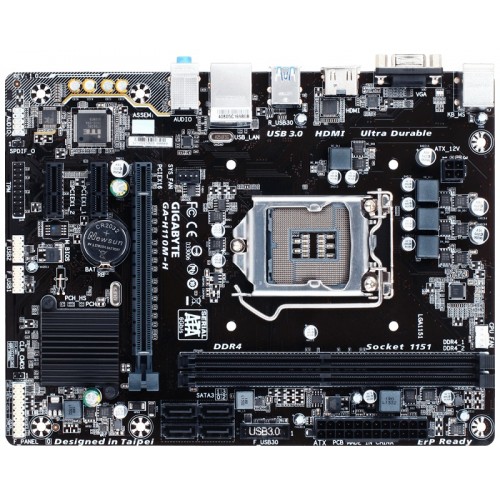

Gigabyte GA-H110M-H Micro ATX Motherboard
Model: GA-H110M-HItem #: gigabyte-ga-h110m-h-motherboard
৳9,300৳10,230Save 9%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel® H110 Express Chipset
- Support for DDR4 2400/2133 MHz memory modules; Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules RAM type
- Micro ATX Form Factor; 22.6cm x 17.4cm
Overview
Gigabyte GA-H110M-H Micro ATX ultra durable motherboard has the compatibility with 7th/6th i3, i5 & i7 processors. This board also supports dual channel DDR4 maximum 32GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920x1200@60 Hz for D-Sub and 4096x2160@24 Hz for HDMI port. This basic motherboard has the facility of Audio Noise Guard with High Quality Audio Capacitors and Realtek® GbE LAN with cFosSpeed Internet Accelerator Software. This board also contain All new GIGABYTE™ APP Center for simple and easy use and support Intel® Small Business Basics.Buy quality Gigabyte boards within the budget available at best price at Star Tech. We provide the best quality service for online shopping and spot purchase to have your desired item to build your dream PC being anywhere in Bangladesh.
Specifications
- Chipset
- Intel® H110 Express Chipset
- RAM type
- Support for DDR4 2400/2133 MHz memory modules; Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
- Form factor
- Micro ATX Form Factor; 22.6cm x 17.4cm
- Memory — Type
- Dual channel DDR4 memory architecture
- Memory — Slots
- 2 x DIMM
- Highlights — CPU
- 7th/ 6th Generation Intel Processors
- Highlights — Model
- GA-H110M-H
- Graphics — Graphics

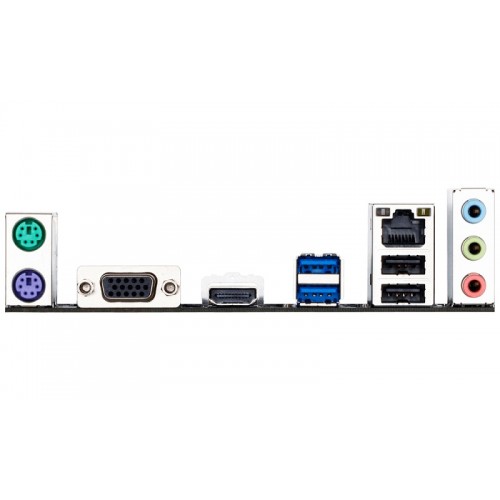

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz; * Support for HDMI 1.4 version.
Show all 22 specificationsShow fewer
- Expansion Slots — PCI
- 1 x PCI Express x16 slot, running at x16; (The PCI Express x16 slot conform to PCI Express 3.0 standard.); 2 x PCI Express x1 slots; (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
- Memory — Maximum Memory
- 32 GB
- Basic Information — BIOS
- 1 x 64 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — Audio
- Realtek® ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel; * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.; Support for S/PDIF Out
- Connector & Ports — USB (s)
- Chipset:; 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header); 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- Graphics — Max Shared Memory
- 1024 MB
- Connector & Ports — D-Sub (s)
- 1 x D-Sub
- Connector & Ports — LAN Port (s)
- Realtek® GbE LAN chip (10/100/1000 Mbit)
- Basic Information — Supported CPU
- Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package; * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.; L3 cache varies with CPU
- Connector & Ports — Supported Storage
- Chipset:; 4 x SATA 6Gb/s connectors
- Connector & Ports — Internal I/O Ports
- 1 x 24-pin ATX main power connector; 1 x 4-pin ATX 12V power connector; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 1 x system fan header; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.0/2.0 header; 2 x USB 2.0/1.1 headers; 1 x Clear CMOS jumper
- Warranty Information — Manufacturing Warranty
- 03 Years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module (TPM) header;
Compare with similar products

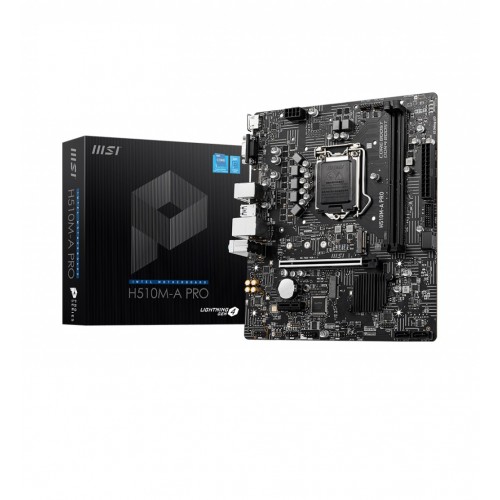

 This itemGigabyte GA-H110M-H Micro ATX Motherboard |  ASRockASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR5 Motherboard |  GIGABYTEGigabyte H410M H 10th Gen Micro ATX Motherboard |  MSIMSI H510M-A PRO Intel 10th Gen and 11th Gen Micro-ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳9,300 | ৳9,100 | ৳9,200 | ৳9,200 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | GIGABYTE | ASRock | GIGABYTE | MSI |
| RAM type | Support for DDR4 2400/2133 MHz memory modules; Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules | 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600; 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800; Supports Intel Extreme Memory Profile (XMP) 3.0 | Intel® Core™ i9/i7 processors:; Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules; Intel Core i5/ i3/ Pentium /Celeron processors:; Support for DDR4 2666/ 2400/ 2133 MHz memory modules | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR); Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP |
| Form factor | Micro ATX Form Factor; 22.6cm x 17.4cm | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm | Micro ATX Form Factor; 22.6cm x 17.4cm | mATX Form Factor; |
| Chipset | Intel® H110 Express Chipset | Intel H610 | Intel H410 Express Chipset | Intel H510 Chipset; ; |
| M.2 slots | — | 1 | 1 | 1 |
