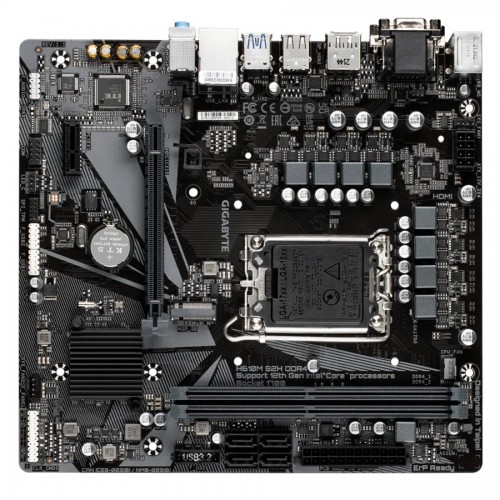

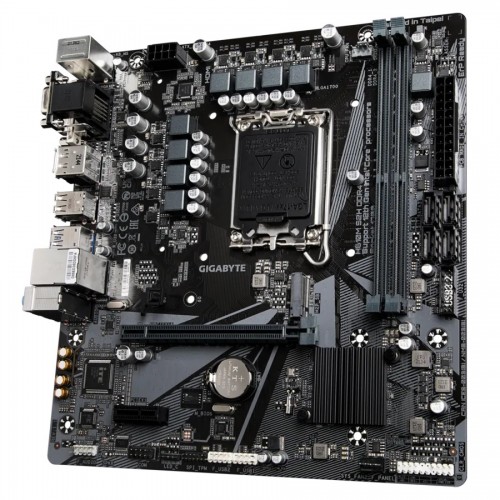

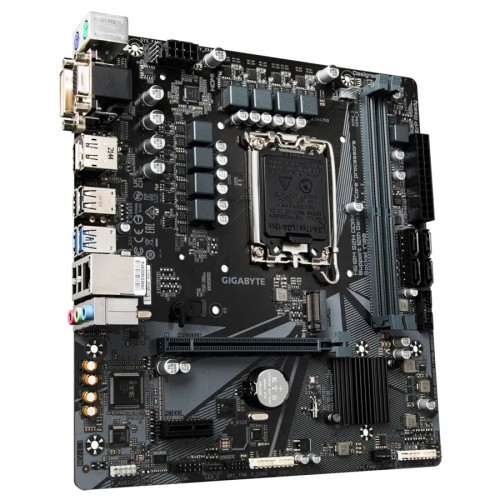

GIGABYTE H610M S2H DDR4 Micro ATX Motherboard

Name: GIGABYTE H610M S2H DDR4 Micro ATX Motherboard
Brand: GIGABYTE
Price: 10500 BDT
Availability: OutOfStock

Model: H610M S2H DDR4Item #: gigabyte-h610m-s2h-ddr4-motherboard

৳10,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel H610 Express Chipset
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 23.0cm x 21.5cm

Overview

The GIGABYTE H610M S2H DDR4 features LGA1700 socket Support for 14th, 13th, & 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. It is equipped with Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / DVI-D / D-Sub Ports for Multiple Displays. The GIGABYTE H610M S2H DDR4 motherboard comes with 3 years of warranty.

Specifications

Chipset: Intel H610 Express Chipset
RAM type: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 23.0cm x 21.5cm
Memory — Type: DDR4
Memory — Slots: 2 x DDR DIMM sockets
Highlights — Model: H610M S2H DDR4
Graphics — Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz; * The DVI-D port does not support D-Sub connection by adapter.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; (Graphics specifications may vary depending on CPU support.)
Expansion Slots — PCI: 1 x PCI Express x16 slot, running at x16; * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; (The PCI Express x16 slot conforms to PCI Express 4.0 standard.); 1 x PCI Express x1 slot; (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Show all 25 specifications

Memory — Maximum Memory: supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for APP Center; * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; @BIOS; Ambient LED; EasyTune; Smart Backup; System Information Viewer; Support for Q-Flash; Support for Xpress Install
Connector & Ports — USB (s): Chipset:; 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); 4 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; 4 x USB 2.0/1.1 ports available through the internal USB headers
Connector & Ports — D-Sub (s): 1 x D-Sub port
Connector & Ports — DVI-D (s): 1 x DVI-D port
Connector & Ports — LAN Port (s): Intel GbE LAN chip (1 Gbps/100 Mbps)
Basic Information — Supported CPU: Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package; L3 cache varies with CPU
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support); 4 x SATA 6Gb/s connectors

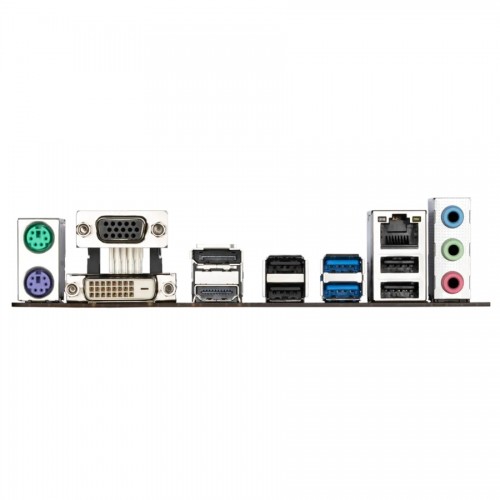

Connector & Ports — Internal I/O Ports: Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 2 x system fan headers; 1 x RGB LED strip header; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x Clear CMOS jumper; ; Back Panel Connectors; 1 x PS/2 keyboard port; 1 x PS/2 mouse port; 1 x D-Sub port; 1 x DVI-D port; 1 x DisplayPort; 1 x HDMI 2.0 port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
