MSI PRO H610M-E mATX Motherboard
Model: PRO H610M-EItem #: msi-pro-h610m-e-motherboard
৳10,500৳10,800Save 3%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H610 Chipset
- Memory Support DDR5 5600 MHz (by JEDEC & POR); Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory RAM type
- mATX; 200mmx236.16mm Form factor
Overview

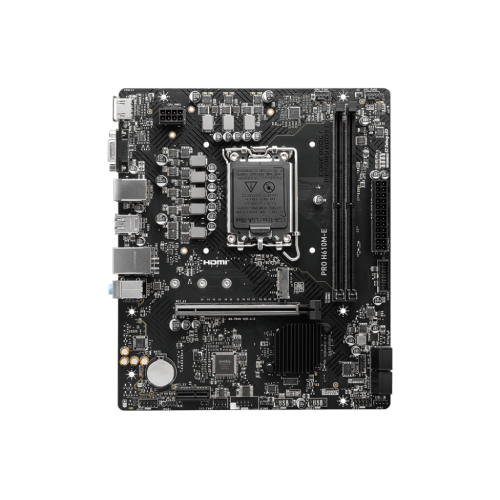

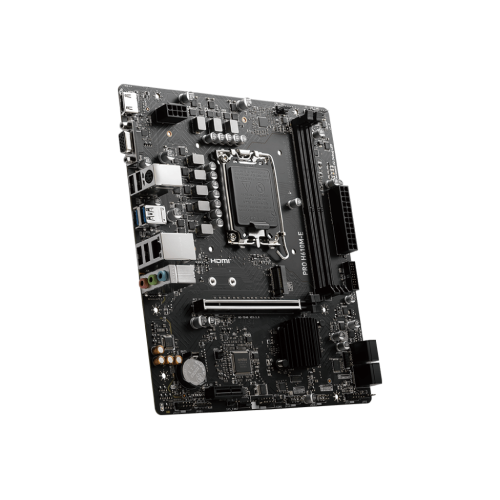

The MSI PRO H610M-E mATX Motherboard is a solid and adaptable foundation for Intel-based systems. This motherboard is compatible with Intel Core 14th, 13th, and 12th Generation CPUs, as well as Intel Pentium Gold and Celeron CPUs on the LGA 1700 socket. It incorporates the most recent memory technology, supporting DDR5 Memory with a maximum frequency of up to 5600MHz, allowing for quicker and more efficient data handling. Core Boost technology improves performance by offering strong support for many cores, thanks to its superior layout and digital power architecture. Memory Boost technology assures the delivery of clean data signals, which contributes to excellent performance, stability, and compatibility. Users may enjoy lightning-fast data transfer speeds with PCIe 4.0 compatibility, providing high-speed connection for current peripherals and storage devices. The motherboard has Audio Boost technology, which delivers studio-grade sound quality for immersive gaming and multimedia. Steel Armor protects VGA cards from bending and electromagnetic interference (EMI), improving overall performance, stability, and strength. In conclusion, the MSI PRO H610M-E mATX Motherboard combines cutting-edge technology, a sturdy design, and premium features to provide a dependable and high-performance foundation for a wide range of computing operations, appealing to gamers, content creators, and power users alike.
Buy MSI PRO H610M-E mATX Motherboard best Motherboard Shop in BD
Specifications
- Chipset
- Intel H610 Chipset
- RAM type
- Memory Support DDR5 5600 MHz (by JEDEC & POR); Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
- Form factor
- mATX; 200mmx236.16mm
- Memory — Type
- DDR5
- Memory — Slots
- 2
- Highlights — Model
- PRO H610M-E
- Graphics — Graphics
- Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz; Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Expansion Slots — PCI
- 1x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to (From CPU); PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Show all 24 specificationsShow fewer
- Highlights — Features
- 1x M.2 slot, Realtek RTL8111H Gigabit LAN
- Memory — Maximum Memory
- 96GB
- Connector & Ports — HDMI
- 1x HDMI 1.4 with HDR port
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio
- Connector & Ports — Audio
- 1x Front panel audio connector
- Others — Special Features
- 1x 4-pin RGB LED connector; 4x EZ Debug LED
- Highlights — Supported RAM
- 2x DDR5, Max 96GB
- Connector & Ports — USB (s)
- 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 3.2 Gen1 Type A (Rear); 2x USB 3.2 Gen1 Type A (Front)
- Connector & Ports — VGA (s)
- 1x VGA
- Highlights — Graphics Output
- 1x HDMI, 1x VGA
- Connector & Ports — LAN Port (s)
- Realtek RTL8111H Gigabit LAN
- Basic Information — Supported CPU
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
- Connector & Ports — Supported Storage
- 1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G; SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
- Connector & Ports — Internal I/O Ports

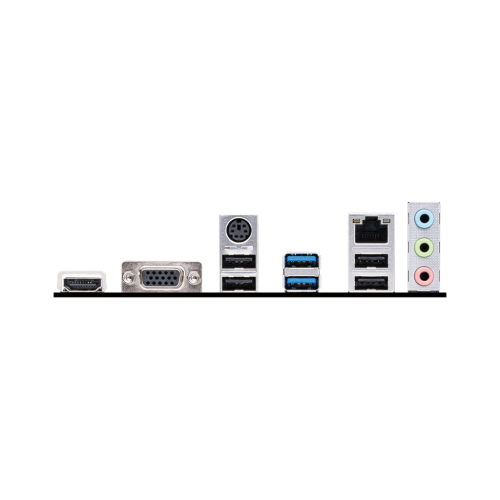

- 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x RGB LED connector(JRGB); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI PRO H610M-E mATX Motherboard |  GIGABYTEGIGABYTE H610M K DDR4 Micro ATX Motherboard |  GIGABYTEGigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard |  GIGABYTEGIGABYTE H610M S2H DDR4 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳10,500 | ৳10,500 | ৳10,500 | ৳10,500 |
| Availability | In stock | In stock | Upcoming | Out of stock |
| Brand | MSI | GIGABYTE | GIGABYTE | GIGABYTE |
| RAM type | Memory Support DDR5 5600 MHz (by JEDEC & POR); Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory | Support for 3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | 3rd Gen AMD Ryzen Processors:; Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; 3rd Gen AMD Ryzen with Radeon Graphics processors:; Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | mATX; 200mmx236.16mm | Micro ATX Form Factor; 22.6cm x 18.5cm | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Chipset | Intel H610 Chipset | Intel H610 Express Chipset | AMD A520 | Intel H610 Express Chipset |
| M.2 slots | — | — | 1 | — |
