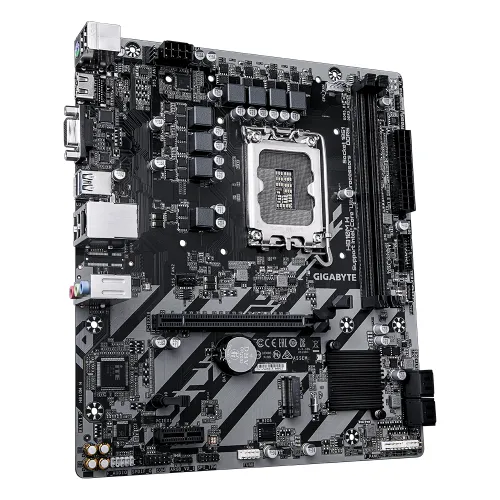

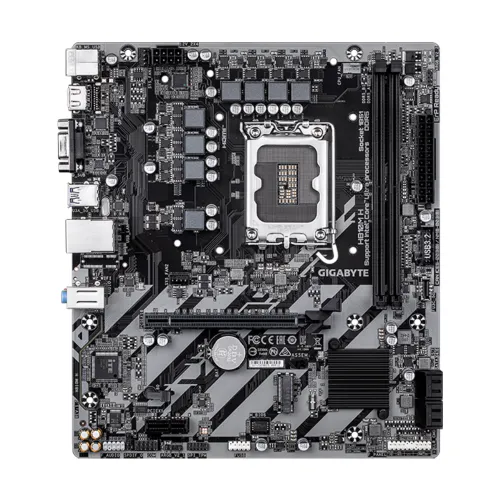

Gigabyte H810M H LGA1851 mATX Motherboard

Name: Gigabyte H810M H LGA1851 mATX Motherboard
Brand: GIGABYTE
Price: 12200 BDT
Availability: InStock

Model: H810M HItem #: gigabyte-h810m-h-motherboard

৳12,200~~৳12,500~~Save 2%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel H810 Express Chipset;
1 M.2 slots
Support for DDR5 6400/5600 MT/s memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) RAM type
Micro ATX Form Factor; 24.4cm x 21.5cm

Overview

The Gigabyte H810M H LGA1851 mATX Motherboard is a dependable and efficient micro-ATX board built on the Intel H810 Express Chipset, engineered to support the latest Intel Core Ultra processors through the LGA1851 socket, making it a strong foundation for modern computing builds. Designed with dual DDR5 DIMM slots, it supports up to 128GB of high-speed memory with dual-channel architecture, delivering enhanced bandwidth and performance for multitasking, productivity, and entry-level gaming. With DDR5 speeds up to 6400 MT/s and XMP support, users can easily optimize memory performance, while compatibility with both ECC and non-ECC memory (operating in non-ECC mode) ensures flexibility across different system requirements. The motherboard integrates a 256 Mbit flash AMI UEFI BIOS, offering stable system management and compliance with ACPI 5.0 and SMBIOS 2.7 standards for smooth operation. Compact yet versatile, the Gigabyte H810M H provides essential connectivity and expansion options in the mATX form factor, making it an excellent choice for users seeking a reliable Gigabyte Motherboard, Gigabyte 810 Motherboard, Gigabyte H810M H Motherboard, or Gigabyte Intel Motherboard for everyday computing, office builds, and cost-effective system setups. Its combination of durability, scalability, and affordability makes the Gigabyte H810M H LGA1851 mATX Motherboard a practical solution for building efficient and future-ready PCs.

Specifications

Chipset: Intel H810 Express Chipset;
M.2 slots: 1
RAM type: Support for DDR5 6400/5600 MT/s memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Form factor: Micro ATX Form Factor; 24.4cm x 21.5cm
Memory — Type: DDR5
Memory — Slots: 2 x DDR5
Highlights — Model: H810M H
Graphics — Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ; ; - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; (Graphics specifications may vary depending on CPU support.)

Show all 27 specifications

Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD.; Chipset:; - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Highlights — Features: 1x M.2 slots, Realtek GbE LAN chip
Memory — Maximum Memory: up to 128 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Smart Backup
Highlights — Supported RAM: 2x DDR5, Max 128GB, Supports Up to 6400 MT/s
Connector & Ports — USB (s): Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header); - 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header); Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back panel
Highlights — Graphics Output: 1x HDMI port, 1 x D-Sub
Connector & Ports — D-Sub (s): 1 x D-Sub
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Basic Information — Supported CPU: LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU
Connector & Ports — Supported Storage: Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support); - 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 2 x addressable RGB Gen2 LED strip headers; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper; ; Back Panel Connectors; 1 x PS/2 keyboard/mouse port; 1 x HDMI port (Note); 1 x D-Sub port; 1 x USB 3.2 Gen 1 port; 5 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 Year
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGigabyte H810M H LGA1851 mATX Motherboard	GIGABYTEGIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard	AsusAsus PRIME B550M-K ARGB AMD AM4 mATX Motherboard	AsusASUS PRIME H610M-K D4 mATX Motherboard
Price	৳12,200	৳12,000	৳12,200	৳12,200
Availability	In stock	Out of stock	In stock	Out of stock
Brand	GIGABYTE	GIGABYTE	Asus	Asus
M.2 slots	1	1	2	—
RAM type	Support for DDR5 6400/5600 MT/s memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)	Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (Please refer "Memory Support List" for more information.)	5100(OC)/4866(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory; Dual Channel Memory Architecture; ECC memory (ECC mode) support varies by CPU.	3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP)
Form factor	Micro ATX Form Factor; 24.4cm x 21.5cm	Micro ATX Form Factor; 24.4cm x 21.5cm	micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )	mATX Form Factor; 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
Chipset	Intel H810 Express Chipset;	AMD B450	AMD B550 Chipset	Intel H610 Chipset
