GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard

Name: GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard
Brand: GIGABYTE
Price: 45000 BDT
Availability: OutOfStock

Model: X870 AORUS ELITE WIFI7Item #: gigabyte-x870-aorus-elite-wifi7-atx-motherboard

৳45,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870 Chipset
Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; 4 x DDR5 DIMM sockets ; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) RAM type
ATX Form Factor; 30.5cm x 24.4cm

Overview

The GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard is a high-performance motherboard designed to support AMD Ryzen 9000, 8000, and 7000 Series processors, leveraging the power of the AMD Socket AM5 and advanced DDR5 memory technology. With four DIMM slots supporting dual-channel DDR5 memory and AMD EXPO Memory Module Support, it offers overclocking capabilities up to 8600MT/s, ensuring top-tier performance and compatibility. The motherboard features a robust digital twin 16+2+2 phases VRM solution, providing consistent and high-powered performance, ideal for overclocking and demanding applications. Efficient cooling solutions, such as the DDR Wind Blade for active cooling of memory modules and VRM Thermal Armor Advanced with I/O ZONE, keep your system cool under pressure. It also offers ultra-fast storage options with four M.2 slots, including three PCIe 5.0 x4 slots, for quick data access and transfer. Enhanced connectivity features such as 2.5GbE LAN, Wi-Fi 7, dual USB4 Type-C with DP-Alt, and HDMI provide versatile and high-speed networking options. The user-friendly design includes M.2 EZ-Match magnetic alignment, EZ-Latch Plus for PCIe and M.2 slots, and a friendly UI with multi-theme support, making installation and management a breeze. Additionally, the motherboard delivers superior audio quality with Realtek ALC1220 HD Audio and WIMA audiophile-grade capacitors, ensuring an immersive audio experience. Overall, the GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard is the ultimate choice for those seeking to unleash the full potential of their system with advanced memory support, robust power delivery, efficient cooling solutions, and extensive connectivity options

Specifications

Chipset: AMD X870
RAM type: Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; 4 x DDR5 DIMM sockets ; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Form factor: ATX Form Factor; 30.5cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 DIMMs
Highlights — Model: X870 AORUS ELITE WIFI7
Graphics — Graphics: Integrated Graphics Processor:; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports.
Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode; * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.; ; When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.); ; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1); - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Show all 27 specifications

Highlights — Features: Realtek 2.5GbE LAN, MediaTek Wi-Fi 7 MT7925
Memory — Maximum Memory: up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek ALC1220 CODEC; * The back panel line out jack supports DSD audio.; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
Connector & Ports — Audio: Realtek ALC1220 CODEC; * The back panel line out jack supports DSD audio.; ; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support Smart Backup
Highlights — Supported RAM: 4x DDR5, Max 256GB
Connector & Ports — USB (s): CPU+ASMedia USB4® controller:; - 2 x USB4® USB Type-C® ports on the back panel; CPU:; - 1 x USB 3.2 Gen 1 port on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; - 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers); - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Highlights — Graphics Output: 2 x USB4 (Type-C), 1 x HDMI
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for:; AMD Ryzen 9000, 8000, 7000 Series Processors
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; ; 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:; AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.; ; ; 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors

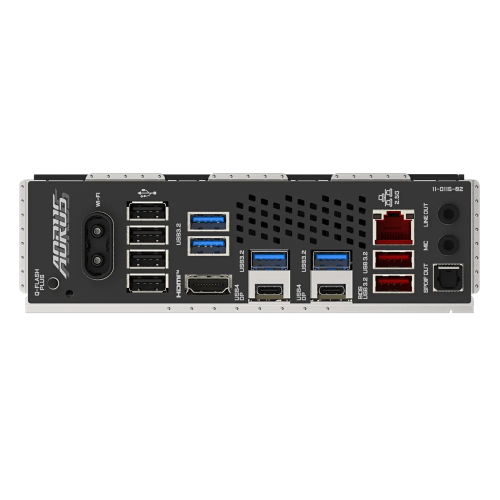

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 4 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; 2 x USB 3.2 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x HDMI port (Note); 1 x power button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors; 1 x Q-Flash Plus button; 4 x USB 2.0/1.1 ports; 4 x USB 3.2 Gen 1 ports; 1 x HDMI port (Note); 2 x USB4® USB Type-C® ports (DisplayPort (Note)); 1 x RJ-45 port; 2 x USB 3.2 Gen 2 Type-A ports (red); 2 x antenna connectors (2T2R); 2 x audio jacks; 1 x optical S/PDIF Out connector
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.4; - Support for 11be 160MHz wireless standard; ; Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.4; - Support for 11be 160MHz wireless standard
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
