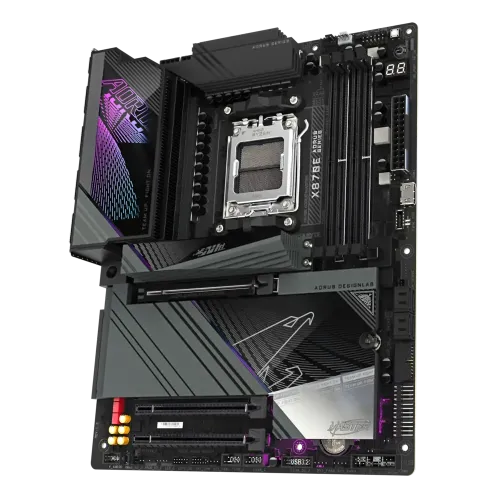

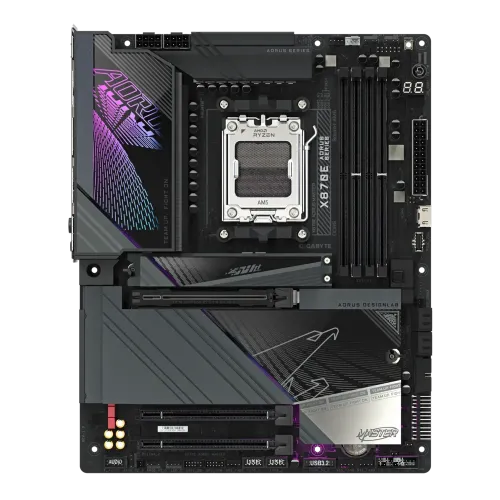

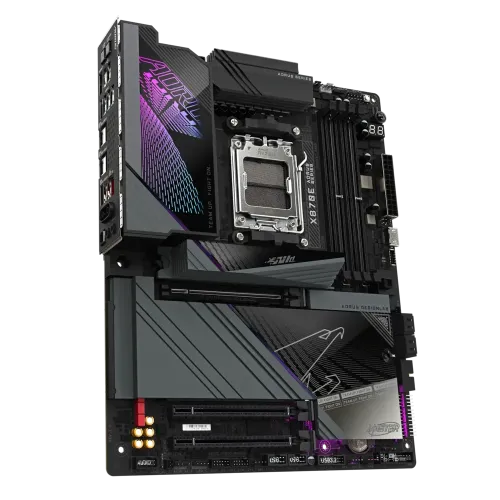

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard

Name: GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard
Brand: GIGABYTE
Price: 74500 BDT
Availability: OutOfStock

Model: X870E AORUS MASTERItem #: gigabyte-x870e-aorus-master-atx-motherboard

৳74,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870E Chipset
Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules RAM type
ATX Form Factor; 30.5cm x 24.4cm

Overview

The GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard is a top-tier choice for gamers, content creators, and professionals seeking to maximize their system's performance and reliability. Designed to support AMD Ryzen™ 9000, 8000, and 7000 Series processors, this motherboard leverages the power of the AMD Socket AM5 and advanced DDR5 memory technology, offering overclocking capabilities up to 8600MT/s. It features a robust digital twin 16+2+2 phases VRM solution, ensuring consistent and high-powered performance, ideal for overclocking and demanding applications. The motherboard's efficient cooling solutions, including the DDR Wind Blade for active cooling of memory modules and VRM Thermal Armor Advanced with I/O ZONE, keep your system cool under pressure. With four DIMM slots supporting dual-channel DDR5 memory and AMD EXPO™ Memory Module Support, the X870E AORUS MASTER ensures top-tier performance and compatibility. It also offers ultra-fast storage options with four M.2 slots, including three PCIe 5.0 x4 slots, for quick data access and transfer. Enhanced connectivity features such as 5GbE LAN, Wi-Fi 7, dual USB4 Type-C with DP-Alt, and HDMI provide versatile and high-speed networking options. The user-friendly design includes M.2 EZ-Match magnetic alignment, EZ-Latch Plus for PCIe and M.2 slots, and a friendly UI with multi-theme support, making installation and management a breeze. Additionally, the motherboard delivers superior audio quality with Realtek ALC1220 HD Audio and WIMA audiophile-grade capacitors, ensuring an immersive audio experience. Overall, the GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard is the ultimate choice for those seeking to unleash the full potential of their system with advanced memory support, robust power delivery, efficient cooling solutions, and extensive connectivity options

Specifications

Chipset: AMD X870E
RAM type: Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Form factor: ATX Form Factor; 30.5cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 DIMMs
Highlights — Model: X870E AORUS MASTER
Graphics — Graphics: Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:; - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; * Support for DisplayPort 1.4 version and HDR
Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.; The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.; ; ; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; ; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1); - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Show all 27 specifications

Highlights — Features: Realtek 5GbE LAN, Qualcomm Wi-Fi 7 QCNCM865
Memory — Maximum Memory: Up to 256GB (64GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; * RAID 5 is only available on AMD Ryzen 9000 Series Processors.; ; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek ALC1220 CODEC; * The back panel line out jack supports DSD audio.; Support for DTS:X Ultra; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
Connector & Ports — Audio: 2 x audio jacks
Others — Bundled Software: Norton® Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Highlights — Supported RAM: 4x DDR5, Max 256GB
Connector & Ports — USB (s): CPU+ASMedia USB4 controller:; - 2 x USB4 USB Type-C ports on the back panel; CPU:; - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub:; - 4 x USB 3.2 Gen 1 ports on the back panel; Chipset:; - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header; - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; - 4 x USB 3.2 Gen 1 ports available through the internal USB headers; - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Highlights — Graphics Output: 2 x USB4 (USB Type-C), 1 x HDMI
Connector & Ports — LAN Port (s): Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for : AMD Ryzen 9000, 8000 & 7000 Series Processors
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; ; 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:; AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.; ; 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors

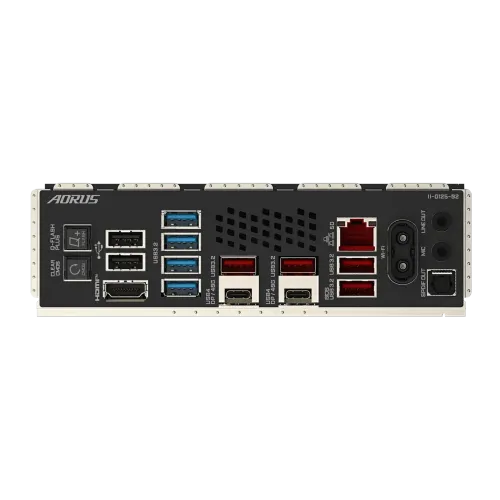

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 4 x system fan headers; 2 x system fan/water cooling pump headers; 4 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 4 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; 2 x USB 3.2 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x noise detection header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x HDMI port (Note); 1 x power button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper; 2 x temperature sensor headers; Voltage Measurement Points; (Note) Actual support may vary by CPU.; ; Back Panel Connectors; 1 x Q-Flash Plus button; 1 x Clear CMOS button; 1 x HDMI port (Note); 2 x USB4 USB Type-C ports (DisplayPorts (Note)); 4 x USB 3.2 Gen 2 Type-A ports (red); 4 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 2 x antenna connectors (2T2R); 2 x audio jacks; 1 x optical S/PDIF Out connector; (Note) Actual support may vary by CPU.
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Qualcomm Wi-Fi 7 QCNCM865; - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11be 320MHz wireless standard; (Actual data rate may vary depending on environment and equipment.); * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.); ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Compare with similar products

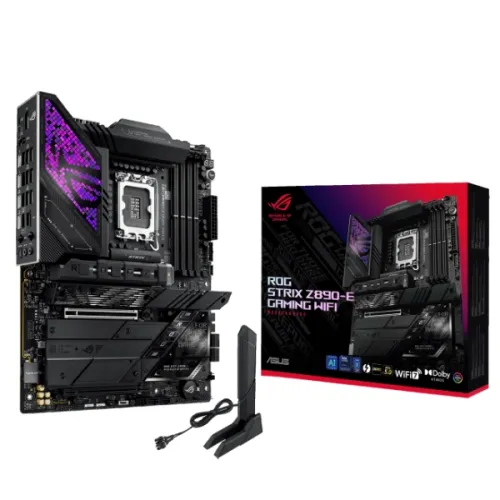

	This itemGIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard	AsusAsus ProArt Z790-CREATOR WIFI ATX Motherboard	AsusASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard	AsusASUS ROG STRIX Z890-E GAMING WIFI LGA1851 ATX Motherboard
Price	৳74,500	৳73,000	৳73,000	৳77,000
Availability	Out of stock	Out of stock	Out of stock	In stock
Brand	GIGABYTE	Asus	Asus	Asus
RAM type	Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules	7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC); / 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II	8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; OptiMem II; ASUS Enhanced Memory Profile II (AEMP II)	Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*; Dual Channel Memory Architecture ; Supports Intel® Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; NitroPath DRAM Technology ; DIMM Fit; ASUS Enhanced Memory Profile III (AEMP III)
Form factor	ATX Form Factor; 30.5cm x 24.4cm	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Chipset	AMD X870E	Intel Z790 Chipset	Intel Z790 Chipset	Intel Z890 Chipset
M.2 slots	—	4	5	7
