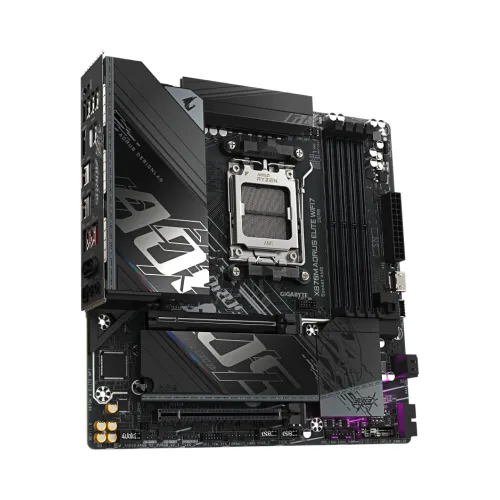

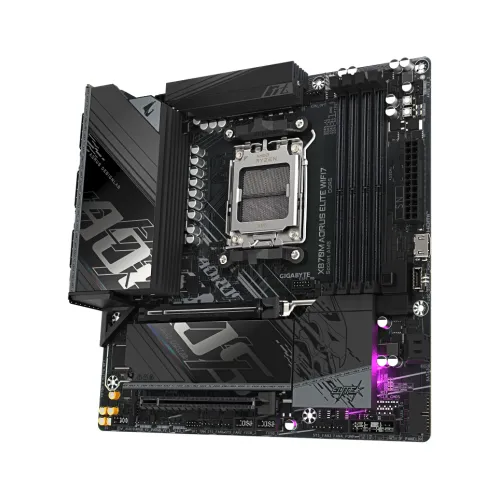

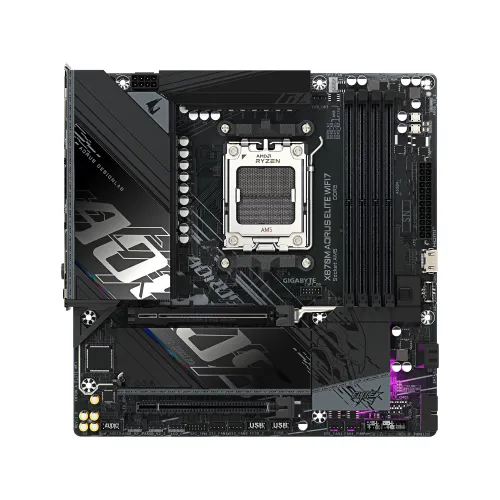

GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard

Name: GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard
Brand: GIGABYTE
Price: 38500 BDT
Availability: InStock

Model: X870M AORUS ELITE WIFI7Item #: gigabyte-x870m-aorus-elite-wifi7-motherboard

৳38,500~~৳39,500~~Save 3%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870 Chipset
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; 4 x DDR5 DIMM sockets ; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard is a next‑generation Gigabyte motherboard engineered for gamers, creators, and PC enthusiasts. Supporting AMD Ryzen AM5 processors, this GIGABYTE X870M AORUS ELITE WIFI7 Motherboard delivers cutting‑edge performance with DDR5 memory, PCIe 5.0 expansion, and ultra‑fast WiFi 7 connectivity. Compact yet powerful, this Gigabyte WiFi motherboard combines advanced thermal design, high‑speed networking, and versatile expansion in a micro‑ATX form factor, making it one of the most reliable Gigabyte 870 motherboards for modern builds.

High‑Speed DDR5 & PCIe 5.0 Performance

The GIGABYTE X870M AORUS ELITE supports DDR5 memory for faster data transfer and improved efficiency, ideal for gaming and multitasking. PCIe 5.0 slots provide ultra‑fast bandwidth for next‑generation GPUs and NVMe SSDs, ensuring maximum performance for high‑end systems.

AMD AM5 Socket Compatibility

Designed for AMD Ryzen AM5 processors, this motherboard delivers robust computing power for gaming, streaming, and productivity. The X870M AORUS ELITE ensures multi‑core performance and advanced workload support in a compact design.

WiFi 7 & Gigabit Networking

Equipped with WiFi 7 and 2.5GbE LAN, this Gigabyte WiFi motherboard provides ultra‑fast and stable connectivity. Perfect for competitive gaming and high‑bandwidth tasks, it ensures seamless online experiences with reduced latency.

Advanced Thermal Design

Featuring enlarged heatsinks, optimized airflow, and reinforced thermal guards, the X870M AORUS ELITE maintains stability under heavy loads. The AORUS cooling system ensures consistent performance during extended gaming sessions.

Compact mATX Form Factor

The micro‑ATX design makes the GIGABYTE X870M AORUS ELITE WIFI7 Motherboard ideal for compact builds without sacrificing performance. It offers versatile expansion options, multiple USB 3.2 Gen2 ports, and high‑definition audio for a complete PC experience.

Specifications

Chipset: AMD X870
RAM type: Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; 4 x DDR5 DIMM sockets ; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 x DIMMs
Highlights — Model: X870M AORUS ELITE WIFI7
Graphics — Graphics: Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:; - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; * Support for DisplayPort 1.4 version and HDR.; Integrated Graphics Processor with AMD Radeon Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; ; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Show all 27 specifications

Highlights — Features: Realtek 2.5GbE LAN, Wi-Fi 7, Bluetooth 5.4
Memory — Maximum Memory: up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; * RAID 5 is only available on AMD Ryzen 9000 Series Processors.; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek ALC1220 CODEC; * The back panel line out jack supports DSD audio.; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
Connector & Ports — Audio: Realtek ALC1220 CODEC; * The back panel line out jack supports DSD audio.; ; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Others — Bundled Software: Norton Internet Security (OEM version)
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup;
Highlights — Supported RAM: 4x DDR5, Max 256GB

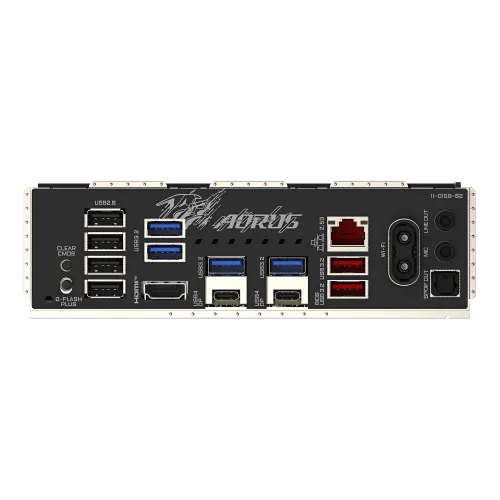

Connector & Ports — USB (s): CPU+ASMedia USB4® controller:; - 2 x USB4® USB Type-C® ports on the back panel; CPU:; - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; CPU+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back panel; Chipset+USB 3.2 Gen 1 Hub:; - 4 x USB 3.2 Gen 1 ports on the back panel; Chipset:; - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header; - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 2 x USB4 (Type-C), 1 x HDMI
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for:; AMD Ryzen 9000, 8000, 7000 Series Processors
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs; 2 x SATA 6Gb/s connectors;
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 2 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C header, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 1 x HDMI port*; 1 x power button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Realtek Wi-Fi 7 RTL8922AE; - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.4; - Support for 11be 160MHz wireless standard
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard	MSIMSI MAG Z790 TOMAHAWK WIFI DDR4 ATX Motherboard	AsusAsus TUF GAMING B850-PLUS WIFI ATX Motherboard	GIGABYTEGIGABYTE Z790 AORUS ELITE ATX Motherboard
Price	৳38,500	৳38,500	৳38,500	৳38,500
Availability	In stock	Out of stock	Out of stock	Out of stock
Brand	GIGABYTE	MSI	Asus	GIGABYTE
RAM type	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; 4 x DDR5 DIMM sockets ; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)	4x DDR4, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile	max. 256GB, DDR5; Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	Micro ATX Form Factor; 24.4cm x 24.4cm	ATX Form Factor; 243.84mmx304.8mm	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	ATX Form Factor; 30.5cm x 24.4cm
Chipset	AMD X870	Intel Z690 Chipset	AMD B850	Intel Z790 Express Chipset
M.2 slots	—	4	3	—

Compare all 4 side by side
