MSI MAG Z790 TOMAHAWK WIFI DDR4 ATX Motherboard

Name: MSI MAG Z790 TOMAHAWK WIFI DDR4 ATX Motherboard
Brand: MSI
Price: 38500 BDT
Availability: OutOfStock

Model: MAG Z790 TOMAHAWK WIFI DDR4Item #: msi-mag-z790-tomahawk-wifi-ddr4-atx-motherboard

৳38,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel Z690 Chipset
4 M.2 slots
4x DDR4, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile RAM type
ATX Form Factor; 243.84mmx304.8mm

Overview

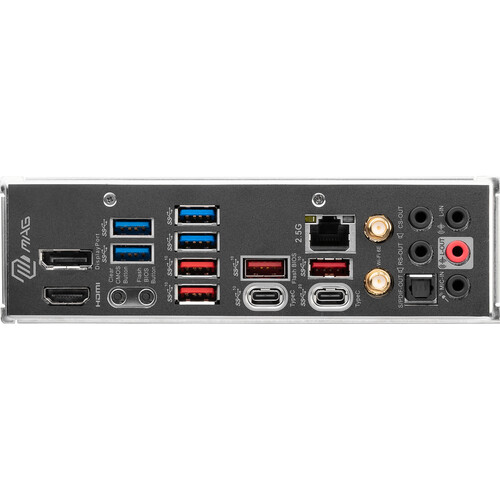

MSI's MAG Z790 TOMAHAWK WIFI DDR4 LGA 1700 ATX Motherboard provides seamless connectivity to your system. This 14th Gen ATX motherboard, which uses the Intel Z790 chipset and LGA 1700 socket, has four DDR4 RAM slots that allow twin-channel memory and speeds up to 5333 MHz when overclocked. Storage is abundant with seven SATA III and four M.2 connections that enable RAID 0, 1, 5, and 10. GPUs and other adaptor cards can be installed using PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 3.0 x1 slots. Benefit from quick networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; easily connect to wireless peripherals with Bluetooth 5.2. The Realtek ALC4080 audio codec offers 7.1 channel surround sound, and the rear ports can be used for analog or digital output. Connect connected peripherals to four USB 3.2 Gen 1 and four USB 3.2 Gen 2 Type-A ports, or to two USB 3.2 Gen 2 and two Type-C ports. DisplayPort and HDMI are used to output video. There are also Clear CMOS and Flash BIOS buttons on the back I/O panel. Front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features are supported through internal headers. The MSI MAG Z790 TOMAHAWK WIFI DDR4 ATX Motherboard comes with a 03-year warranty.

Specifications

Chipset: Intel Z690 Chipset
M.2 slots: 4
RAM type: 4x DDR4, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile
Form factor: ATX Form Factor; 243.84mmx304.8mm
Memory — Type: DDR4
Memory — Slots: 4 x DIMM
Highlights — Model: MAG Z790 TOMAHAWK WIFI DDR4
Graphics — Graphics: 1x HDMI; 1x DisplayPort; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz; Support DP 1.4, the maximum resolution of 8K 60Hz

Show all 26 specifications

Expansion Slots — PCI: 2x PCI-E x16 slot; Supports x16/x4; 1x PCI-E x1 slot; PCI_E1 PCIe 5.0 supports up to x16 (From CPU); PCI_E2 PCIe 3.0 supports up to x1 (From the Chipset); PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Highlights — Features: 2.5G LAN with Wi-Fi 6E Solution
Memory — Maximum Memory: 128GB
Connector & Ports — HDMI: 1x HDMI 2.1
Basic Information — Audio: Realtek ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on the front panel
Connector & Ports — Audio: 1x Front Audio (JAUD)
Others — Special Features: LED FEATURE: 4x EZ Debug LED
Highlights — Supported RAM: 4x DDR4, 5333+MHz (OC), Max 128GB
Connector & Ports — USB (s): 4x USB 2.0 (Front); 4x USB 3.2 Gen1 Type A (Rear); 2x USB 3.2 Gen1 Type A (Front); 4x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Intel 2.5Gbps LAN
Basic Information — Supported CPU: Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors; Processor socket LGA1700
Connector & Ports — Display Port (s): 1x DisplayPort 1.4
Connector & Ports — Supported Storage: 4x M.2 slot; M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices; M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices; M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; M.2_4 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices; 7x SATA 6G port
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0; 2x USB 3.2 Gen1 Type A; 1x USB 3.2 Gen2 Type C
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2, FIPS, FISMA
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)

Compare with similar products

	This itemMSI MAG Z790 TOMAHAWK WIFI DDR4 ATX Motherboard	GIGABYTEGIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard	AsusAsus TUF GAMING B850-PLUS WIFI ATX Motherboard	GIGABYTEGIGABYTE Z790 AORUS ELITE ATX Motherboard
Price	৳38,500	৳38,500	৳38,500	৳38,500
Availability	Out of stock	In stock	Out of stock	Out of stock
Brand	MSI	GIGABYTE	Asus	GIGABYTE
M.2 slots	4	—	3	—
RAM type	4x DDR4, Maximum Memory Capacity 128GB; Max. overclocking frequency:; 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; 4 x DDR5 DIMM sockets ; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)	max. 256GB, DDR5; Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	ATX Form Factor; 243.84mmx304.8mm	Micro ATX Form Factor; 24.4cm x 24.4cm	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	ATX Form Factor; 30.5cm x 24.4cm
Chipset	Intel Z690 Chipset	AMD X870	AMD B850	Intel Z790 Express Chipset
