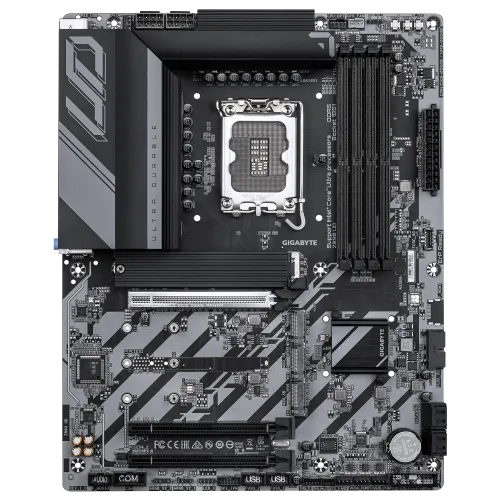

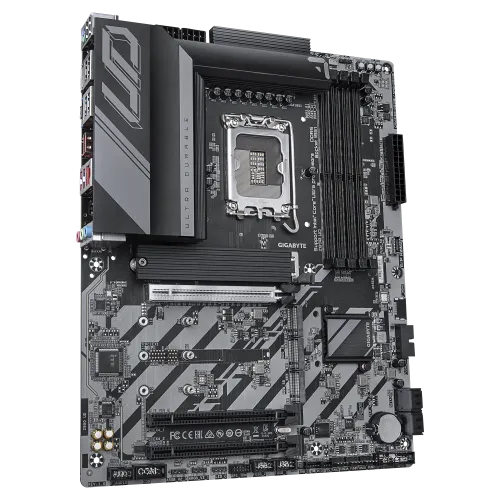

Gigabyte Z890 UD LGA 1851 ATX Motherboard
Model: Z890 UDItem #: gigabyte-z890-ud-lga-1851-atx-motherboard
৳29,900৳32,000Save 7%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel Z890 Express Chipset
- 1 M.2 slots
- Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module RAM type
- ATX Form Factor; 30.5cm x 24.4cm
Overview
The Gigabyte Z890 UD LGA 1851 ATX motherboard is optimized for the latest Intel Core Ultra processors. Its sturdy digital dual 12+1+2 phase VRM architecture guarantees steady power delivery for demanding workloads and overclocking. With support for XMP and ECC un-buffered DIMMs, it can hold up to 256 GB of DDR5 memory over four DIMM slots at up to 9200 MT/s. For extremely quick storage configurations, the Gigabyte Z890 UD mobo offers four M.2 slots, one with PCIe 5.0 x4 compatibility, and four SATA 6Gb/s connectors. With PCIe 5.0 and PCIe 4.0 slots made for graphics cards or NVMe SSDs, expansion is easy. The Gigabyte Z890 UD LGA 1851 ATX motherboard offers improved cooling options with VRM Thermal Armor Advanced and M.2 Thermal Guard, and incorporates AI Perfdrive for customized BIOS presets. AIO fan control, Q-Flash Auto Scan for simple updates, and multi-theme customization are all features of the BIOS's user-friendly interface. A 2.5GbE LAN port allows for quick networking, and USB4 Type-C with DisplayPort Alt Mode and USB 3.2 connectors provide longer communication. DisplayPort 2.1 and USB4 integrated graphics support resolutions of up to 3840x2160 @ 144 Hz. The Realtek High Definition Audio on the Gigabyte Z890 UD LGA 1851 ATX motherboard supports up to 7.1-channel configurations and may be adjusted via audio software. Voltage, temperature, and fan speed monitoring are among the onboard diagnostics that guarantee peak performance. Software like Norton Internet Security and LAN bandwidth control tools are pre-installed on this ATX form factor board, which is compatible with Windows 11. With cutting-edge features like RGB lighting management, PCIe EZ-Latch, Thunderbolt add-in card support, and an extensive array of internal ports, the Gigabyte Z890 UD ATX motherboard redefines performance and versatility for both professionals and enthusiasts.
Specifications
- Chipset
- Intel Z890 Express Chipset
- M.2 slots
- 1
- RAM type
- Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module
- Form factor
- ATX Form Factor; 30.5cm x 24.4cm
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- Z890 UD
- Graphics — Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
- Highlights — Features
- 4x M.2 slots, 2.5GbE LAN, USB4 Type-C with DP-Alt, DisplayPort
- Memory — Maximum Memory
- up to 256 GB (64 GB single DIMM capacity) of system memory
- Basic Information — BIOS
- 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Connector & Ports — Audio
- 3 x audio jacks
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
- Highlights — Supported RAM
- 4x DDR5, Max 256GB, Supports Up to 9200 (O.C)
- Highlights — Graphics Output
- 1x USB4 USB Type-C, 1x DisplayPort
- Connector & Ports — LAN Port (s)
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Basic Information — Supported CPU
- LGA1851 socket: Support for Intel Core Ultra Processors; L3 cache varies with CPU
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- CPU:; - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU); - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB); - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB); - 4 x SATA 6Gb/s connectors
- Connector & Ports — Internal I/O Ports

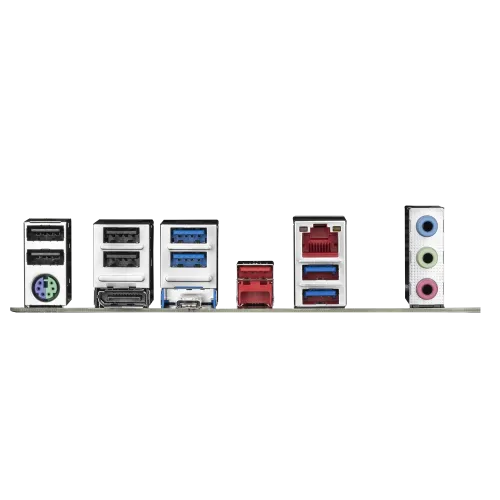

- 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 2 x system fan headers; 2 x system fan/water cooling pump headers; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 4 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt™ add-in card connectors; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x power button; 1 x reset button; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; 4 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x DisplayPort (Note); 4 x USB 3.2 Gen 1 ports; 1 x USB4 USB Type-C port (DisplayPort (Note)); 1 x USB 3.2 Gen 2 Type-A port (red); 1 x RJ-45 port; 3 x audio jacks
- Warranty Information — Manufacturing Warranty
- 3 Year
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
Compare with similar products
 This itemGigabyte Z890 UD LGA 1851 ATX Motherboard |  GIGABYTEGIGABYTE Z790 UD AX ATX Motherboard |  MSIMSI PRO B850M-A WIFI PZ AM5 mATX Motherboard |  GIGABYTEGIGABYTE Z790 D AC DDR5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳29,900 | ৳29,900 | ৳30,000 | ৳30,000 |
| Availability | In stock | Out of stock | In stock | Out of stock |
| Brand | GIGABYTE | GIGABYTE | MSI | GIGABYTE |
| M.2 slots | 1 | — | 2 | — |
| RAM type | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module | 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only* | 14th and 13th Generation Intel Core i9/i7 Processors:; - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules; 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:; - Support for DDR5 4800/4400 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Form factor | ATX Form Factor; 30.5cm x 24.4cm | ATX Form Factor; 30.5cm x 24.4cm | mATX; 243.84mmx243.84mm | ATX Form Factor; 30.5cm x 24.4cm |
| Chipset | Intel Z890 Express Chipset | Intel Z790 Express Chipset | AMD B850 | Intel Z790 Express Chipset |
