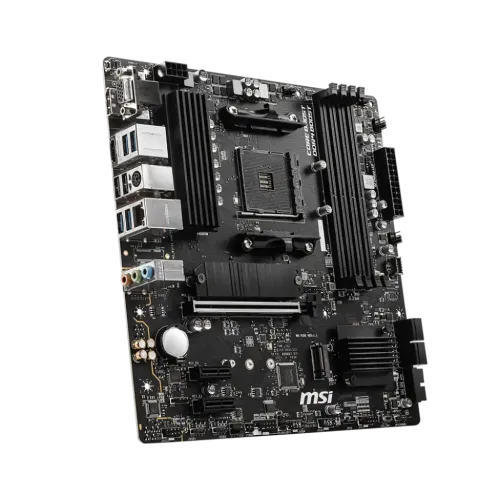

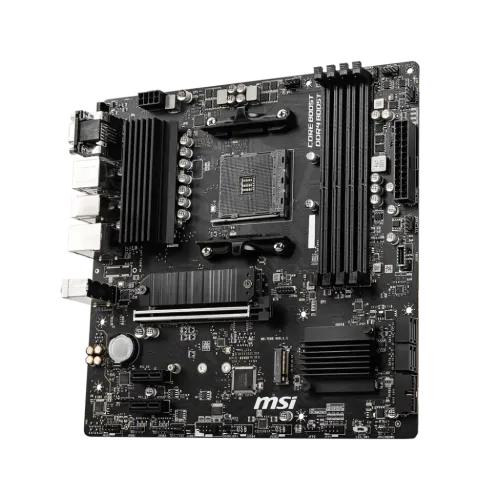

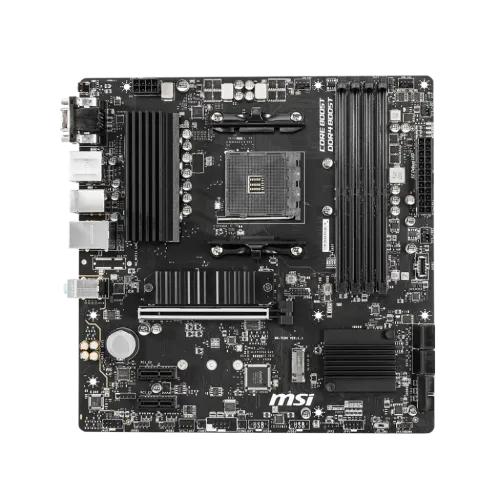

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

Name: MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
Brand: MSI
Price: 14200 BDT
Availability: OutOfStock

Model: B550M Pro-VDHItem #: msi-b550m-pro-vdh-am4-motherboard

৳14,200

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B550 Chipset
2 M.2 slots
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHZ; 1DPC 2R max speed 3733 MHZ; 2DPC 1R max speed 3866 MHZ; 2DPC 2R max speed 3466 MHZ; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory; Supports un-buffered memory RAM type
Micro-ATX Form Factor; 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Overview

The MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard is a powerful and adaptable option for anyone wishing to build a small but high-performance PC. It uses the AMD B550 chipset and supports AMD Ryzen processors with the AM4 socket, assuring compatibility with the most recent generation CPUs. The MSI AM4 Motherboard supports dual-channel DDR4 memory with a maximum capacity of 128GB, providing superior performance for multitasking and demanding workloads. Its excellent multi-display functionality allows for smooth connection to several monitors, with HDMI, VGA, DVI-D, and DisplayPort outputs to accommodate a wide range of display setups. The MSI B550M Pro-VDH features a number of slots and ports for expansion and high-speed connectivity. It has two M.2 slots for fast SSDs and supports PCI-Express Gen 4, 3, and 2, ensuring compatibility with latest graphics cards and storage devices. It has one PCI-Ex16 slot and two PCI-Ex1 slots for more expansion possibilities. The MSI B550M Pro-VDH AM4 Motherboard's front and rear USB ports offer comprehensive connectivity, with one USB 3.2 Gen 1 Type-C port, two USB 3.2 Gen 1 Type-A ports on the front, four USB 3.2 Gen 1 Type-A ports on the back, and six USB 2.0 ports on both sides. This Micro-ATX board is built to last and is equipped with a Gigabit LAN port for high-speed networking and several fan connectors to keep system temperatures at an ideal level. Its small form size makes it excellent for space-saving designs without sacrificing functionality. With its extensive feature set and dependable performance, the MSI B550M Pro-VDH AM4 DDR4 Micro-ATX Motherboard is an excellent choice for gamers, professionals, and DIY enthusiasts aiming to maximize their system's potential.

Specifications

Chipset: AMD B550
M.2 slots: 2
RAM type: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHZ; 1DPC 2R max speed 3733 MHZ; 2DPC 1R max speed 3866 MHZ; 2DPC 2R max speed 3466 MHZ; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory; Supports un-buffered memory
Form factor: Micro-ATX Form Factor; 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Memory — Type: Dual-channel memory architecture
Memory — Slots: 4x DDR4 memory slots
Highlights — Model: B550M Pro-VDH
Graphics — Graphics: 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz ; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz; 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz

Show all 21 specifications

Expansion Slots — PCI: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1); 2x PCIe 3.0 x1 slots
Memory — Maximum Memory: 128GB
Connector & Ports — HDMI: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Connector & Ports — Audio: Realtek ALC892 Codec; 7.1-Channel High Definition Audio

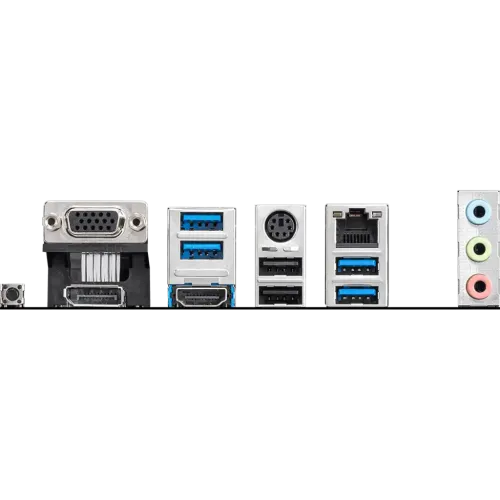

Connector & Ports — USB (s): AMD B550 Chipset; 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors); AMD Processor; 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Graphics — Max Shared Memory: 16GB
Connector & Ports — LAN Port (s): 1x Realtek 8111HN Gigabit LAN controller
Basic Information — Supported CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Connector & Ports — Display Port (s): 1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
Connector & Ports — Supported Storage: AMD B550 Chipset; 4x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices
Connector & Ports — Internal I/O Ports: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 3x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Serial port connector; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 03 Years Warranty
Connector & Ports — TPM (Trusted Platform Module ): 1 x TPM module connector;

Compare with similar products

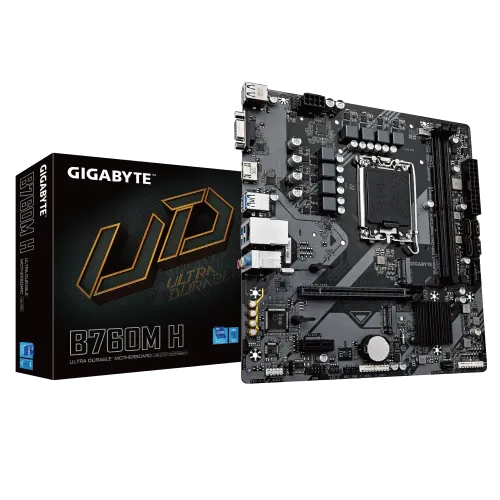

	This itemMSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard	MSIMSI PRO B550M-P AMD AM4 mATX Motherboard	ColorfulColorful CVN B550M GAMING FROZEN V15 AM4 mATX Motherboard	GIGABYTEGIGABYTE B760M H DDR5 Micro ATX Motherboard
Price	৳14,200	৳14,100	৳14,100	৳14,100
Availability	Out of stock	In stock	Out of stock	Out of stock
Brand	MSI	MSI	Colorful	GIGABYTE
M.2 slots	2	2	—	—
RAM type	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHZ; 1DPC 2R max speed 3733 MHZ; 2DPC 1R max speed 3866 MHZ; 2DPC 2R max speed 3466 MHZ; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory; Supports un-buffered memory	Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4400+ MT/s; • 1DPC 2R Max speed up to 3733+ MT/s; • 2DPC 1R Max speed up to 3866+ MT/s; • 2DPC 2R Max speed up to 3466+ MT/s; Supports JEDEC Speed; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Memory Overclocking by A-XMP OC mode	DDR4-4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133 MHz	Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	Micro-ATX Form Factor; 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)	mATX; 243.84mmx243.84mm	M-ATX; 245 x 245 mm	Micro ATX Form Factor; 23.0cm x 21.5cm
Chipset	AMD B550	AMD B550	AMD B550	Intel B760 Express Chipset
