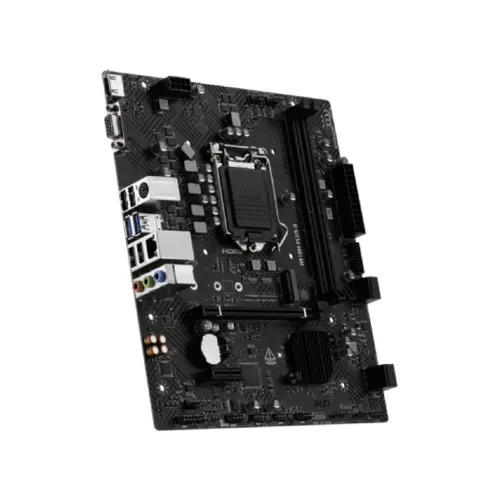

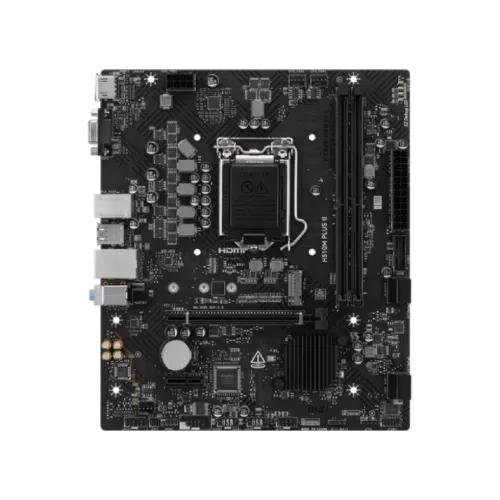

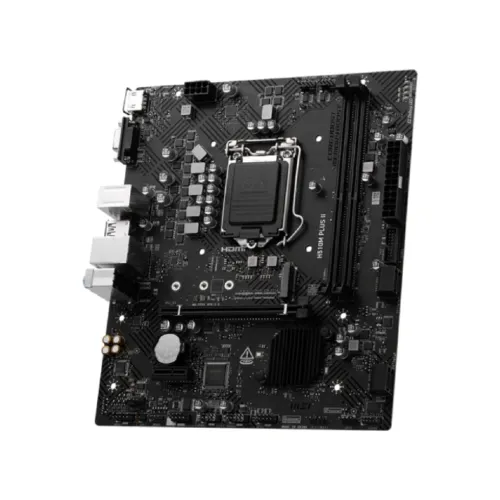

MSI H510M PLUS II 10th/11th Gen mATX Motherboard
Model: H510M PLUS IIItem #: msi-h510m-plus-ii-motherboard
৳9,700
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL H510 Chipset
- 1 M.2 slots
- Memory Support 2933/ 2666/ 2400/ 2133 MHz; Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU; Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) RAM type
- mATX; 202mmx236mm Form factor
Overview
The MSI H510M PLUS II Motherboard is a dependable and cost-effective alternative for building a compact yet powerful desktop computer, providing the key capabilities required for smooth gaming, productivity, and everyday use. It is powered by the Intel H510 chipset and supports 10th and 11th-generation Intel Core processors, as well as Pentium Gold and Celeron CPUs, allowing consumers flexibility across various system designs. Memory compatibility includes two DDR4 slots with dual-channel capabilities, allowing for a maximum capacity of 64GB. Depending on the CPU installed, the MSI H510M PLUS II Motherboard supports speeds of up to 2933MHz for Intel Core i9 and Core i7 processors and up to 2666MHz for Core i5, Core i3, Pentium Gold, and Celeron CPUs, with Intel Extreme Memory Profile (XMP) support for easy overclocking. Onboard graphics include HDMI 1.4, which supports 4K resolution at 30Hz, and a VGA output with resolutions up to 2048x1536, though availability varies depending on the CPU used. For expansion, the board has one PCIe 3.0 x16 slot for a dedicated graphics card and one PCIe 3.0 x1 slot for other devices. Storage is handled by a fast M.2 slot that supports PCIe 3.0 x4 and SATA modes, as well as four SATA 6Gb/s connectors. The MSI H510M PLUS II Motherboard supports both SSDs and traditional hard drives. The audio system uses the Realtek ALC897 codec to provide 7.1-channel high-definition sound, which improves entertainment and gaming experiences. Connectivity is practical, with four USB 2.0 connections on the back and four on the front, as well as two USB 3.2 Gen1 Type-A connectors on both the front and back for fast transfers. MSI H510M PLUS II Motherboard's networking is powered by Realtek 8111H Gigabit LAN for reliable wired connectivity. Additional internal I/O includes CPU and system fan headers, RGB lighting, chassis intrusion detection, COM port, TPM 2.0, and front audio. EZ Debug LEDs are a useful feature that makes troubleshooting easier. The MSI H510M PLUS II, with a tiny micro-ATX form factor of 202mm x 236mm, is compatible with Windows 10 and Windows 11, making it a reliable motherboard that balances performance, expandability, and value for budget-conscious consumers.
Specifications
- Chipset
- INTEL H510
- M.2 slots
- 1
- RAM type
- Memory Support 2933/ 2666/ 2400/ 2133 MHz; Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU; Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP)
- Form factor
- mATX; 202mmx236mm
- Memory — Type
- DDR4
- Memory — Slots
- 2
- Highlights — Model
- H510M PLUS II
- Graphics — Graphics
- 1x HDMI; Support HDMI 1.4, maximum resolution of 4K 30Hz; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
Show all 24 specificationsShow fewer
- Expansion Slots — PCI
- 1x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- Highlights — Features
- 1x M.2, Realtek 8111H Gigabit LAN
- Memory — Maximum Memory
- 64GB
- Connector & Ports — HDMI
- 1x HDMI
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 2x DDR4, Max 2933 MHz, Up to 64GB
- Connector & Ports — USB (s)
- 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front)
- Highlights — Graphics Output
- 1x HDMI, 1x VGA
- Connector & Ports — LAN Port (s)
- Realtek 8111H Gigabit LAN
- Basic Information — Supported CPU
- Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA 1200 Socket
- Connector & Ports — Display Port (s)
- 1x VGA
- Connector & Ports — Supported Storage
- 1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports
- Warranty Information — Manufacturing Warranty
- 3 years Warranty
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI H510M PLUS II 10th/11th Gen mATX Motherboard |  AsusAsus Prime H510M-E/CSM Intel 11th and 10th Gen Micro ATX Motherboard |  MSIMSI PRO H610M-S DDR4 m-ATX Motherboard |  GIGABYTEGigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard | |
|---|---|---|---|---|
| Price | ৳9,700 | ৳9,600 | ৳9,700 | ৳9,800 |
| Availability | Out of stock | Out of stock | In stock | In stock |
| Brand | MSI | Asus | MSI | GIGABYTE |
| M.2 slots | 1 | — | 1 | 1 |
| RAM type | Memory Support 2933/ 2666/ 2400/ 2133 MHz; Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU; Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) | DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) | 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory | DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | mATX; 202mmx236mm | microATX; 22.6cm x 21.1cm | mATX; 200mmx236.16mm | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset | INTEL H510 | H510 | Intel H610 Chipset | AMD A520 |
