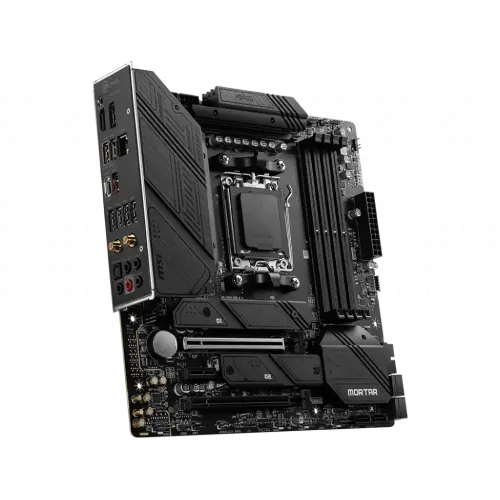

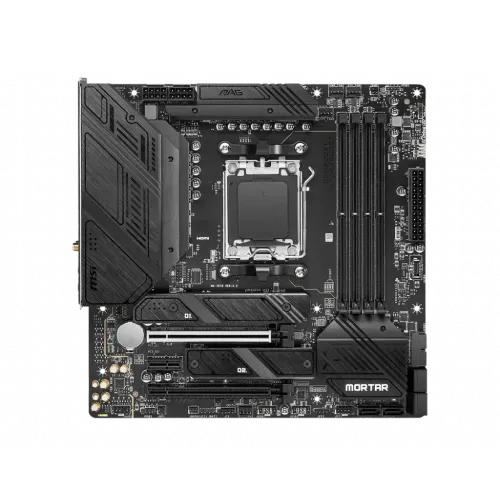

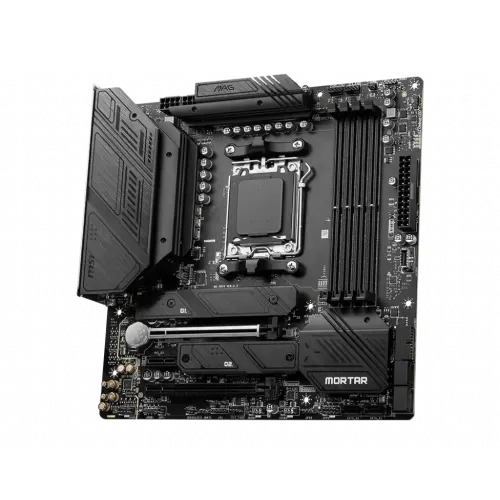

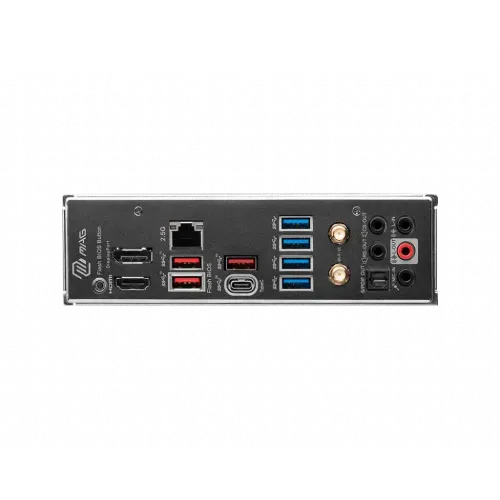

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard
Model: MAG B650M MORTAR WIFIItem #: msi-mag-b650m-mortar-wifi-motherboard
৳28,600৳29,500Save 3%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B650 Chipset
- Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz RAM type
- mATX; 243.84mmx243.84mm Form factor
Overview
The MSI MAG B650M MORTAR WIFI Motherboard supports AMD's Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz. It features a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of an 8-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MAG B650M MORTAR WIFI offers Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The MSI MAG B650M MORTAR WIFI Motherboard comes with 3 years of warranty.
Specifications
- Chipset
- AMD B650
- RAM type
- Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Form factor
- mATX; 243.84mmx243.84mm
- Memory — Type
- DDR5
- Memory — Slots
- 4 DIMMs
- Highlights — Model
- MAG B650M MORTAR WIFI
- Graphics — Graphics
- 1x HDMI; 1x DisplayPort; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz; Support DP 1.4, maximum resolution of 8K 60Hz
- Expansion Slots — PCI
- 2x PCI-E x16 slot; Support x16/ x4; 1x PCI-E x1 slot; PCI_E1 PCIe 4.0 supports up to x16 (From CPU); PCI_E2 PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Show all 25 specificationsShow fewer
- Highlights — Features
- 2.5G LAN and Intel Wi-Fi 6E Solution
- Memory — Maximum Memory
- 128GB
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- Basic Information — Audio
- Realtek ALC4080 Codec; 7.1-Channel High Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel
- Connector & Ports — Audio
- HD Audio Connectors
- Highlights — Supported RAM
- 4x DDR5, up to 6400+(OC) MHz
- Connector & Ports — USB (s)
- 4x USB 2.0 (Front); 4x USB 3.2 Gen1 Type A (Rear); 2x USB 3.2 Gen1 Type A (Front); 3x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
- Highlights — Graphics Output
- 1x HDMI, 1x Display Port
- Connector & Ports — LAN Port (s)
- Realtek RTL8125B 2.5Gbps LAN
- Basic Information — Supported CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
- Connector & Ports — Display Port (s)
- 1x Display Port
- Connector & Ports — Supported Storage
- 2x M.2 slot; M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 6x SATA 6G port
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 4x USB 2.0; 2x USB 3.2 Gen1 Type A; 1x USB 3.2 Gen2 Type C
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth 5.2
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard |  GIGABYTEGIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard |  GIGABYTEGIGABYTE Z790 D DDR5 ATX Motherboard |  ASRockASRock Z790 Pro RS/D4 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳28,600 | ৳28,500 | ৳28,500 | ৳28,500 |
| Availability | In stock | Out of stock | Out of stock | Out of stock |
| Brand | MSI | GIGABYTE | GIGABYTE | ASRock |
| RAM type | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | 14th and 13th Generation Intel Core i9/i7 Pocessors:; - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules; 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:; - Support for DDR5 4800/4400 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC); - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Form factor | mATX; 243.84mmx243.84mm | ATX Form Factor; 30.5cm x 24.4cm | ATX Form Factor; 30.5cm x 24.4cm | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 2oz Copper PCB |
| Chipset | AMD B650 | AMD B650 | Intel Z790 Express Chipset | Intel Z790 |
