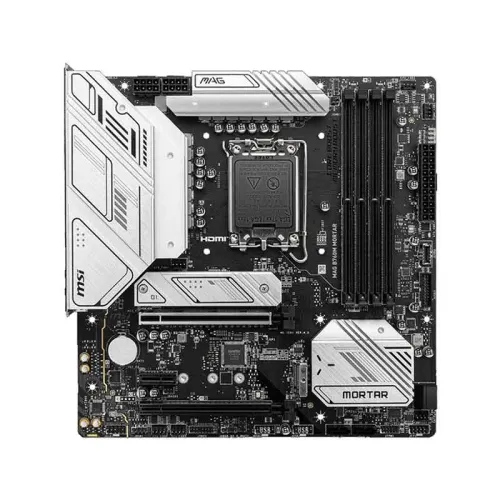

MSI MAG B760M MORTAR DDR5 mATX Motherboard
Model: MAG B760M MORTARItem #: msi-mag-b760m-mortar-ddr5-motherboard
৳21,500
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL B760 Chipset
- Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) RAM type
- mATX; 243.84mmx243.84mm Form factor
Overview
The MSI MAG B760M MORTAR DDR5 motherboard is an excellent choice for both gamers and power users. It supports Intel Core processors from the 12th and 13th generations, as well as Pentium Gold and Celeron CPUs for the LGA 1700 socket. This motherboard also supports DDR5 memory, which can be overclocked to rates of up to 7000+ MHz. This 14th Gen motherboard's upgraded power architecture is a crucial feature, with a 12+1+1 duet rail power system, two 8-pin CPU power connections, Core Boost, and Memory Boost. These characteristics guarantee that the motherboard can easily manage high-performance processing needs. The MSI MAG B760M MORTAR DDR5 motherboard delivers a lightning-fast gaming experience for gamers. It has a PCIe 5.0 slot, a Lightning Gen 4 x 4 M.2 slot, and a USB 3.2 Gen 2x2 port for quick data transmission and connection. This motherboard has a premium thermal solution, which incorporates an expanded heatsink design and M.2 Shield Frozr to avoid overheating. Its design assures that the system can operate at peak performance for extended periods without failure. The MSI MAG B760M MORTAR DDR5 motherboard also has an audio boost for studio-quality sound and a high-quality PCB constructed with 2oz thicker copper and server-grade level material. These qualities ensure that the motherboard is long-lasting and sturdy. This MSI MAG B760M MORTAR DDR5 motherboard is a strong and efficient choice for individuals looking for a high-performance system with quick connectivity and excellent audio quality.
Buy MSI MAG B760M MORTAR DDR5 mATX Motherboard from best Motherboard Shop in BD
Specifications
- Chipset
- INTEL B760
- RAM type
- Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP)
- Form factor
- mATX; 243.84mmx243.84mm
- Memory — Type
- DDR5
- Memory — Slots
- 4
- Highlights — Model
- MAG B760M MORTAR
- Graphics — Graphics
- Support HDMITM 2.1 with HDR, the maximum resolution of 4K 60Hz; Support DP 1.4, the maximum resolution of 4K 60Hz
- Expansion Slots — PCI
- 2x PCI-E x16 slot; Supports x16/x4; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Show all 25 specificationsShow fewer
- Highlights — Features
- 2x M.2 slot, Intel Wi-Fi 6E
- Memory — Maximum Memory
- 192GB
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High-Definition Audio
- Connector & Ports — Audio
- 1x Front Audio (JAUD)
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 4x DDR5, Max 192GB 7000+(OC)

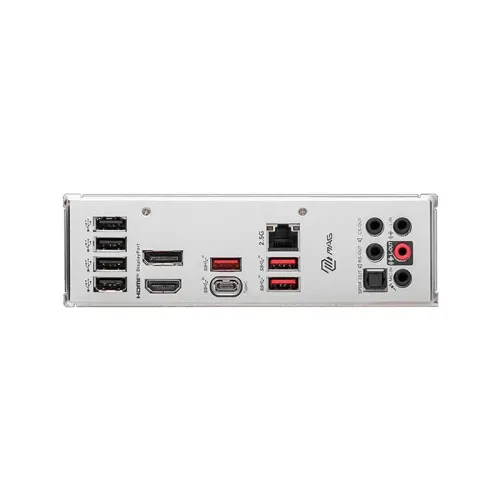

- Connector & Ports — USB (s)
- 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 3.2 Gen1 Type A (Front); 3x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
- Highlights — Graphics Output
- 1x HDMI, 1x DisplayPort
- Connector & Ports — LAN Port (s)
- Realtek 2.5Gbps LAN
- Basic Information — Supported CPU
- Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA 1700
- Connector & Ports — Display Port (s)
- 2x DisplayPort
- Connector & Ports — Supported Storage
- 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI MAG B760M MORTAR DDR5 mATX Motherboard |  GIGABYTEGIGABYTE B850M FORCE WIFI6E AMD AM5 DDR5 mATX Motherboard |  MSIMSI PRO B650-P WIFI DDR5 AMD AM5 ATX Motherboard |  ColorfulColorful CVN B760M FROZEN WIFI V20 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳21,500 | ৳21,400 | ৳21,500 | ৳21,500 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | MSI | GIGABYTE | MSI | Colorful |
| RAM type | Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MHz; • 1DPC 2R Max speed up to 5800+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO | - DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory; - Intel is supported ® Extreme Memory Profile (XMP) memory technology; - supports dual channel memory technology |
| Form factor | mATX; 243.84mmx243.84mm | Micro ATX Form Factor; 24.4cm x 24.4cm | ATX; 243.84mmx304.8mm | M-ATX; 245mm x 245mm |
| Chipset | INTEL B760 | AMD B650 | AMD B650 | Intel B760 |
| M.2 slots | — | 1 | — | — |
