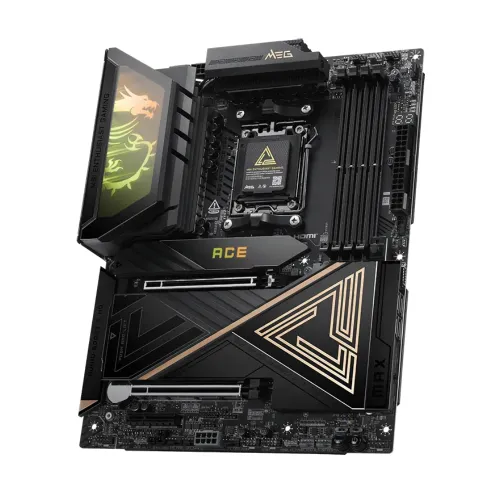

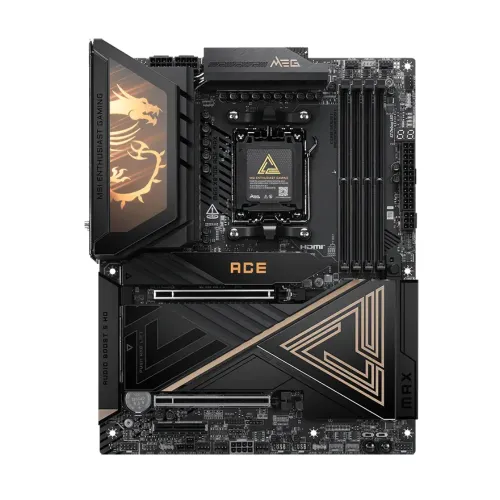

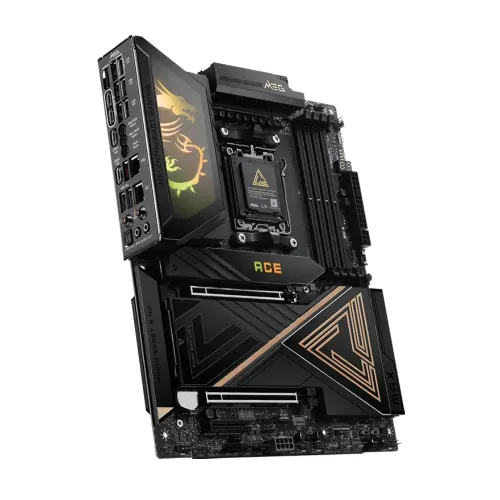

MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard
Model: MEG X870E ACE MAXItem #: msi-meg-x870e-ace-max-motherboard
৳95,000৳97,000Save 2%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD X870E Chipset
- 5 M.2 slots
- Maximum Memory Capacity 256GB; Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only* RAM type
- ATX; 243.84mmx304.8mm Form factor
Overview
The MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard is a flagship MSI Motherboard built for enthusiasts who demand extreme performance, future-ready connectivity, and uncompromising stability. Powered by the advanced AMD X870E chipset with support for the latest AM5 socket, it is fully compatible with AMD Ryzen 9000, 8000, and 7000 series processors, making it a future-proof platform for gaming and professional workloads. The MSI MEG X870E ACE MAX Motherboard supports up to 256GB DDR5 memory with speeds reaching 8400+ MT/s via AMD EXPO™, ensuring lightning-fast responsiveness for gaming, AI, and content creation. Storage expansion is unmatched with five M.2 slots, including two PCIe 5.0 NVMe SSD slots, alongside reinforced PCIe 5.0 GPU support for next-gen graphics cards. Connectivity is cutting-edge with 13 rear USB ports including USB4, Wi-Fi 7, and 10G LAN, making this MSI 870 Motherboard one of the most advanced networking-ready boards available. Premium features like a 110A SPS VRM design, 64MB BIOS ROM, and robust heatsinks guarantee stable overclocking and long-term durability, while integrated AMP/DAC audio delivers studio-quality sound. Sleekly designed with MSI’s signature aesthetics, the MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard is the ultimate choice for gamers, creators, and professionals seeking a high-end MSI gaming motherboard that blends performance, reliability, and future-proof technology into one powerhouse platform.
Specifications
- Chipset
- AMD X870E
- M.2 slots
- 5
- RAM type
- Maximum Memory Capacity 256GB; Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*
- Form factor
- ATX; 243.84mmx304.8mm
- Memory — Type
- DDR5
- Memory — Slots
- 4x UDIMM
- Highlights — Model
- MEG X870E ACE MAX
- Graphics — Graphics
- 1x HDMI; Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*; 2x Type-C DisplayPort; USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz*
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- 2x PCI-E x16 slot; 1x PCI-E x4 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU); PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU); ; PCI_E1 & PCI_E2 slots; • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
- Highlights — Features
- 5 x M.2 Slot, 1x 10Gbps LAN, 1x 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
- Memory — Maximum Memory
- 256GB
- Connector & Ports — HDMI
- 1x HDMI; Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
- Connector & Ports — RAID
- Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices; Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
- Basic Information — Audio
- Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA; 7.1-Channel USB High-Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel
- Others — Special Features
- 1x EZ Digi-Debug LED; 4x EZ Debug LED; 1x EZ Memory Detection LED; 1x EZ LED Control switch
- Highlights — Supported RAM
- 4x DDR5 UDIMM, 8400+MT/s (OC), Max 256GB

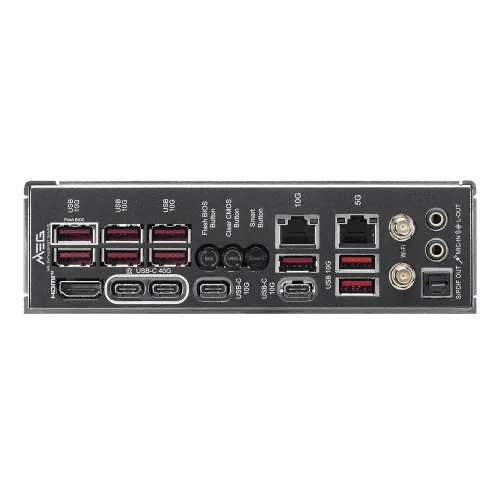

- Connector & Ports — USB (s)
- 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 9x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); 2x USB 40Gbps Type C (Rear)
- Highlights — Graphics Output
- 2x Type-C, 1 x HDMI
- Connector & Ports — LAN Port (s)
- 1x Marvell AQC113CS 10Gbps LAN; 1x Realtek 8126 5Gbps LAN
- Basic Information — Supported CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
- Connector & Ports — Display Port (s)
- 2x Type-C DisplayPort; USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz*
- Connector & Ports — Supported Storage
- 5x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices; 4x SATA 6G; ; M.2_1:; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); M.2_2:; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors); ; * The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
- Connector & Ports — Internal I/O Ports
- Internal IO:; 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x CPU Fan; 2x Combo Fan (Pump_Sys Fan); 5x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Front Audio (JAUD); 2x Thermal Sensor connectors(T_SEN); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); V-check point; 2x Direct OC Jumper (JBCLK); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth 5.4**, MLO, 4KQAM
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI MEG X870E ACE MAX AMD AM5 ATX Motherboard |  MSIMSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard |  AsusAsus ROG MAXIMUS Z790 HERO DDR5 ATX Motherboard |  AsusASUS ROG MAXIMUS Z790 DARK HERO ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳95,000 | ৳86,500 | ৳97,000 | ৳99,000 |
| Availability | In stock | In stock | Out of stock | Out of stock |
| Brand | MSI | MSI | Asus | Asus |
| M.2 slots | 5 | 6 | 5 | 5 |
| RAM type | Maximum Memory Capacity 256GB; Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only* | Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9600+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s | 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) | 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile II (AEMP II); Supports DIMM Flex |
| Form factor | ATX; 243.84mmx304.8mm | ATX (243.84mmx304.8mm) | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Chipset | AMD X870E | INTEL Z890 | Intel Z790 Chipset | Intel Z790 Chipset |
