MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard

Name: MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
Brand: MSI
Price: 86500 BDT
Availability: InStock

Model: MEG Z890 UNIFY-XItem #: msi-meg-z890-unify-x-motherboard

৳86,500~~৳87,000~~Save 1%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

INTEL Z890 Chipset
6 M.2 slots
Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9600+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s RAM type
ATX (243.84mmx304.8mm) Form factor

Overview

The MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard is a high-performance motherboard that supports Intel Core Ultra CPUs (Series 2) and features an Intel Z890 chipset. As one of the most powerful MSI MEG Z890 UNIFY-X ATX Motherboards, it supports DDR5 memory with a maximum capacity of 128GB and boasts memory speeds ranging from 9600 MT/s (OC) to 6400 MT/s (JEDEC). The MSI MEG Z890 UNIFY-X Motherboard features dual-channel, non-ECC, unbuffered memory and supports Intel XMP 3.0 and memory overclocking. This MSI MEG Z890 UNIFY-X motherboard has several PCIe slots, including three PCIe x16 slots (Gen 5.0 and Gen 4.0), one PCIe x1, and six M.2 slots that enable PCIe 5.0 x4 for lightning-fast storage choices. Furthermore, the MSI MEG Z890 UNIFY-X motherboard has six SATA 6G ports, providing enough storage space. It has two Type-C DisplayPort with Thunderbolt 4 connectors, which allow 8K monitors and high-resolution output at up to 120Hz. The connectivity choices are extensive, with two Thunderbolt 4 connections capable of transferring data at up to 40Gbps and various USB interfaces, including 10Gbps Type-A and Type-C. The MSI Motherboard also has an Intel Killer E5000B 5G LAN and a pre-installed Intel Killer BE1750x Wi-Fi 7 module, which can offer rates of up to 5.8 Gbps. The Realtek ALC4080 Codec supports 7.1-channel USB High-Performance Audio at 32-bit/384 kHz. With RAID support for both SATA and M.2 NVMe devices, this motherboard is ideal for high-end gaming, multimedia production, and professional applications. The MSI MEG Z890 UNIFY-X Motherboard is compatible with Windows 11 64-bit, making it an excellent choice for power users.

Specifications

Chipset: INTEL Z890
M.2 slots: 6
RAM type: Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9600+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s
Form factor: ATX (243.84mmx304.8mm)
Memory — Type: DDR5
Memory — Slots: 2x DDR5 UDIMM, Maximum Memory
Highlights — Model: MEG Z890 UNIFY-X
Graphics — Graphics: 2x Type-C DisplayPort; Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*; ; * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Show all 26 specifications

Expansion Slots — PCI: 3x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset); PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU); PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset); ; * PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot.; ** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot.
Highlights — Features: 6x M.2, Intel Wi-Fi 7
Memory — Maximum Memory: 128GB
Connector & Ports — RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Basic Information — Audio: Realtek ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel
Connector & Ports — Audio: 1x Front Audio (JAUD)
Others — Special Features: LED FEATURE; 4x EZ Debug LED; 1x EZ Digit Debug LED
Highlights — Supported RAM: 2x DDR5, Max 128GB 9600 - 6400 (OC) MT/s

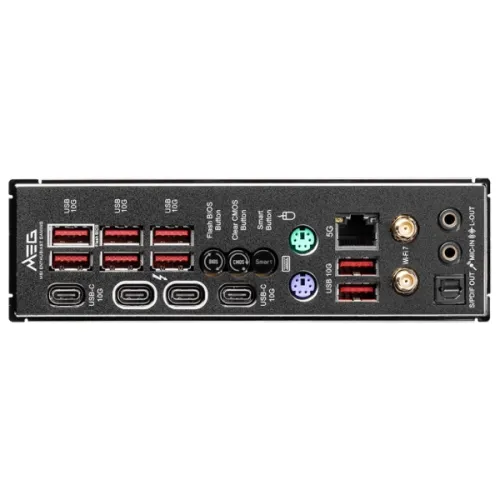

Connector & Ports — USB (s): 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 8x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
Highlights — Graphics Output: 2x Type-C DisplayPort
Connector & Ports — LAN Port (s): 1x Intel® Killer E5000B 5G LAN
Basic Information — Supported CPU: Supports Intel Core Ultra Processors (Series 2)
Connector & Ports — Display Port (s): 2x Type-C DisplayPort; Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Connector & Ports — Supported Storage: 6x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices; M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices; M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; 6x SATA 6G; ; * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.; ** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.; *** Please refer to the manual for M.2 SSD heatsink restrictions.
Connector & Ports — Internal I/O Ports: 1x Thunderbolt5 card connector(JTBT5, support RTD3); 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x CPU Fan; 2x Combo Fan (Pump_Sys Fan); 4x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Slow Mode Booting Jumper(JSLOW); 1x Front Audio (JAUD); 2x Thermal Sensor connectors(T_SEN); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); V-check point; 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports
Warranty Information — Manufacturing Warranty: 3 year warranty
Connector & Ports — Wireless Communication module: Intel® Killer™ BE1750x Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4**, MLO, 4KQAM; ; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.;
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)

Compare with similar products

	This itemMSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard	AsusAsus ROG STRIX X870E-E GAMING WIFI DDR5 AMD AM5 ATX Motherboard	AsusASUS ProArt Z890-CREATOR WIFI LGA1851 ATX Motherboard	GIGABYTEGigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard
Price	৳86,500	৳81,800	৳82,000	৳83,000
Availability	In stock	Out of stock	In stock	Out of stock
Brand	MSI	Asus	Asus	GIGABYTE
M.2 slots	6	4	5	1
RAM type	Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9600+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s	Supports up to 8000+MT/s(OC) with Ryzen™; 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered; Memory*"; Dual channel memory architecture; Supports AMD Extended Profiles for; Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)	Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMP III); Support DIMM Fit; Support DIMM Flex	Support for DDR5 9500(O.C)/ 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module
Form factor	ATX (243.84mmx304.8mm)	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )	E-ATX Form Factor; 30.5cm x 28.5cm
Chipset	INTEL Z890	AMD X870	Intel Z890 Chipset	Intel Z890 Chipset
