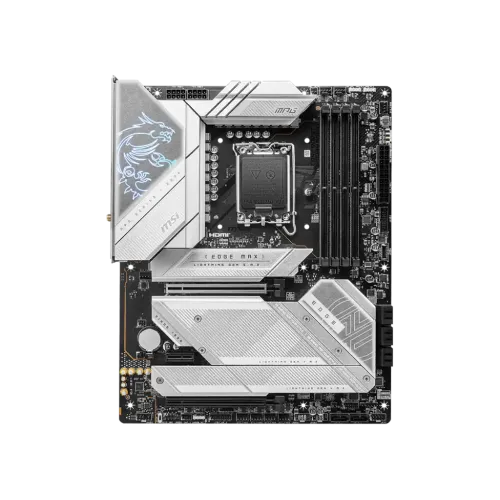

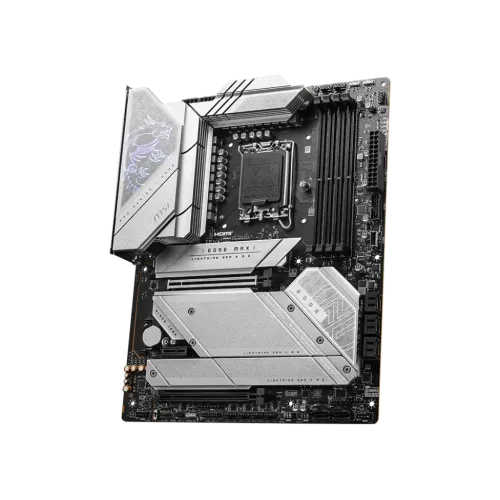

MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard

Name: MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard
Brand: MSI
Price: 43500 BDT
Availability: OutOfStock

Model: MPG Z790 EDGE TI MAX WIFIItem #: msi-mpg-z790-edge-ti-max-wifi-motherboard

৳43,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

INTEL Z790 Chipset
5 M.2 slots
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory RAM type
ATX; 243.84mmx304.8mm Form factor

Overview

The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard is a high-performance motherboard that supports Intel Core 14th/13th/12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors for the LGA 1700 socket. With its PCIe 5.0 slot, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2, it also supports DDR5 Memory at speeds of up to 7800+(OC) MHz, giving a lightning-fast gaming experience. With a 16+1+1 Mirrored Power Arrangement, two 8-pin CPU power connections, Core Boost, and Memory Boost, the motherboard has an increased power architecture. It also boasts a premium thermal solution, which includes a larger heatsink with heat-pipe, MOSFET thermal pads certified for 7W/mk, extra choke thermal pads, and M.2 Shield Frozr, which ensures great performance and a non-stop gaming experience. The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard also has a 2.5G LAN and Wi-Fi 7 Solution, giving a secure, reliable, and fast network connection. It also boasts AUDIO BOOST 5, which provides studio-grade sound quality for the most immersive gaming experience. The motherboard is constructed with a high-quality PCB, a 6-layer PCB composed of server-grade level material, and has a pre-installed I/O Shield, which provides greater EMI protection and ease of installation. The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard is a high-end motherboard with great performance and features for both gamers and professionals.

Buy MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard Shop in BD

Specifications

Chipset: INTEL Z790
M.2 slots: 5
RAM type: Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
Form factor: ATX; 243.84mmx304.8mm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: MPG Z790 EDGE TI MAX WIFI
Graphics — Graphics: 1x HDMI; Support HDMI 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz*

Show all 26 specifications

Expansion Slots — PCI: 2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Highlights — Features: 2.5G LAN with Wi-Fi 7 Solution
Memory — Maximum Memory: 192GB
Connector & Ports — HDMI: 1x HDMI 2.1
Connector & Ports — RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Basic Information — Audio: Realtek ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel
Others — Special Features: 4x EZ Debug LED; 1x EZ LED Control switch
Highlights — Supported RAM: 4x DDR5, 7800+MHz (OC), Max 192GB

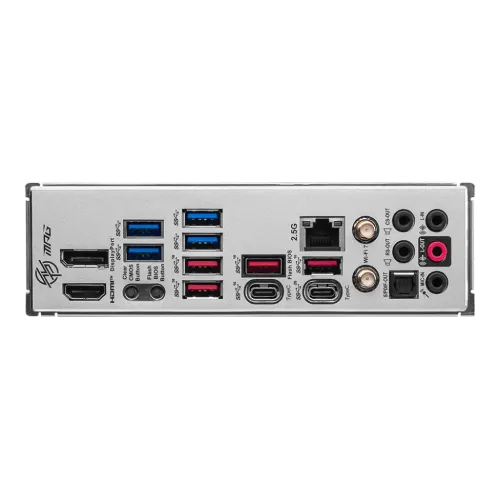

Connector & Ports — USB (s): 4x USB 2.0 (Front); 4x USB 3.2 Gen1 Type A (Rear); 2x USB 3.2 Gen1 Type A (Front); 4x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Intel 2.5Gbps LAN;
Basic Information — Supported CPU: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
Connector & Ports — Display Port (s): 1x DisplayPort 1.4
Connector & Ports — Supported Storage: 5x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 8x SATA 6G
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports; 1x ARGB+FAN Header (JAF_1); 1x USB4 card connector (JTBT_U4_1, supports RTD3)
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.4**, MLO, 4KQAM
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)
