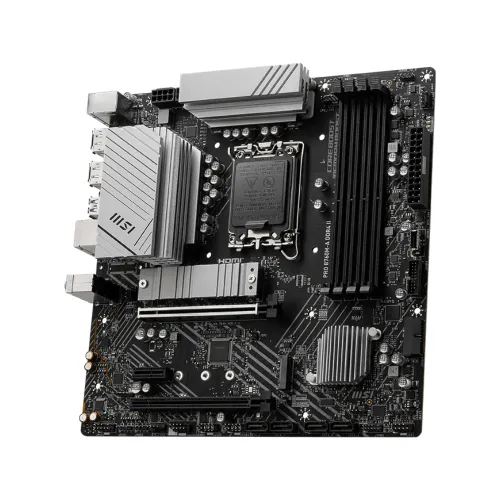

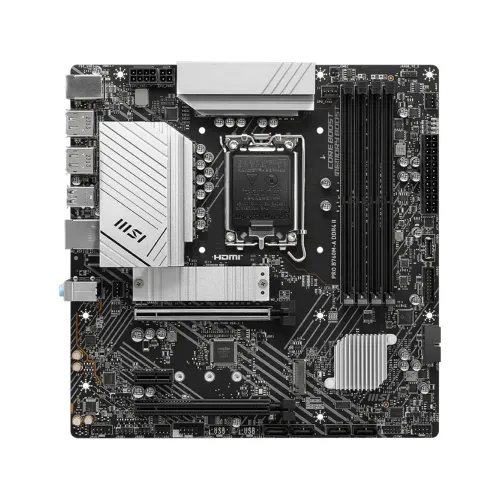

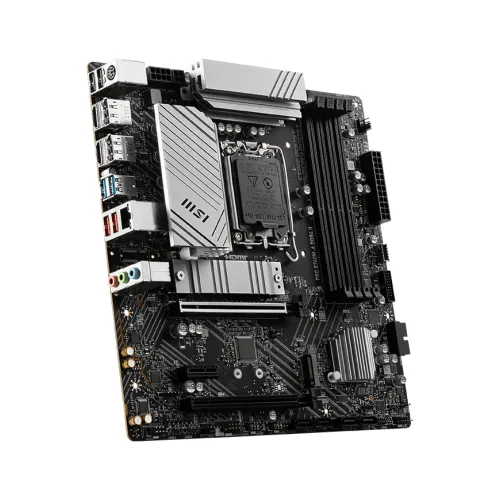

MSI PRO B760M-A DDR4 II mATX Motherboard

Name: MSI PRO B760M-A DDR4 II mATX Motherboard
Brand: MSI
Price: 19000 BDT
Availability: OutOfStock

Model: PRO B760M-A DDR4 IIItem #: msi-pro-b760m-a-ddr4-ii-matx-motherboard

৳19,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

INTEL B760 Chipset
2 M.2 slots
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP) RAM type
mATX; 243.84mmx243.84mm Form factor

Overview

MSI PRO B760M-A WIFI DDR4 mATX Motherboard

The MSI PRO B760M-A DDR4 II mATX Motherboard is built for Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. This Motherboard runs on the Intel B760 chipset and supports four DDR4 memory slots with a maximum capacity of 128GB. Dual-channel DDR4 memory runs at speeds up to 5333MHz via overclocking, with full XMP support and non-ECC unbuffered memory compatibility.

A robust 12+1 Duet Rail Power System with P-PAK, Core Boost, and an 8-pin plus 4-pin CPU power connector delivers stable power for demanding workloads. The MSI PRO B760M-A DDR4 II Motherboard features an extended heatsink, 7W/mK MOSFET thermal pads, choke thermal pads, and M.2 Shield Frozr for sustained thermal performance. A premium 6-layer PCB built with 2oz thickened copper ensures signal integrity and long-term structural durability.

The MSI DDR4 Motherboard offers two PCIe x16 slots and one PCIe x1 slot, with the primary slot running PCIe 4.0 at full x16 bandwidth from the CPU. Two M.2 slots both support PCIe 4.0 x4 speeds, with the second slot also offering SATA mode compatibility for flexible storage options. Four SATA 6G ports support RAID 0, 1, 5, and 10 configurations for versatile storage setups. Onboard graphics output includes two HDMI 2.1 and two DisplayPort 1.4 ports, each supporting up to 4K 60Hz resolution.

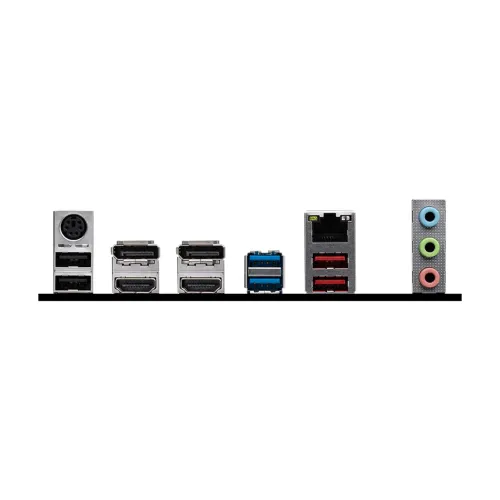

The MSI PRO B760M-A DDR4 II mATX Motherboard includes Realtek ALC897 7.1-channel HD audio for immersive sound quality. Rear USB ports include two USB 2.0, two USB 5Gbps Type-A, and two USB 10Gbps Type-A connections for broad peripheral support. A Realtek RTL8125BG 2.5G LAN controller delivers fast, stable network performance for gaming and multimedia use. Four EZ Debug LEDs simplify hardware troubleshooting during system builds significantly. The MSI Motherboard supports Windows 10 and Windows 11 64-bit operating systems on a compact 243.84×243.84mm mATX form factor.

Buy MSI PRO B760M-A WIFI DDR4 mATX Motherboard from best Motherboard Shop in BD

Specifications

Chipset: INTEL B760
M.2 slots: 2
RAM type: Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)
Form factor: mATX; 243.84mmx243.84mm
Memory — Type: DDR4
Memory — Slots: 4
Highlights — Model: PRO B760M-A DDR4 II
Graphics — Graphics: 2x HDMI; Support HDMI 2.1, maximum resolution of 4K 60Hz; 2x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz

Show all 26 specifications

Expansion Slots — PCI: 2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Highlights — Features: 2x M.2, Realtek RTL8125BG 2.5G LAN
Memory — Maximum Memory: 128GB
Connector & Ports — HDMI: 2x HDMI 2.1
Connector & Ports — RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Basic Information — Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Connector & Ports — Audio: 1x Front Audio (JAUD)
Others — Special Features: 4x EZ Debug LED; Support for Windows 11 64-bit, Windows 10 64-bit
Highlights — Supported RAM: 4x DDR4, Max 128GB 5333(OC)
Connector & Ports — USB (s): 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 2x USB 10Gbps Type A (Rear)
Highlights — Graphics Output: 2x HDMI 2.1, 2x DisplayPort 1.4
Connector & Ports — LAN Port (s): Realtek RTL8125BG 2.5G LAN
Basic Information — Supported CPU: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
Connector & Ports — Display Port (s): 2x DisplayPort 1.4
Connector & Ports — Supported Storage: 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G; * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)
