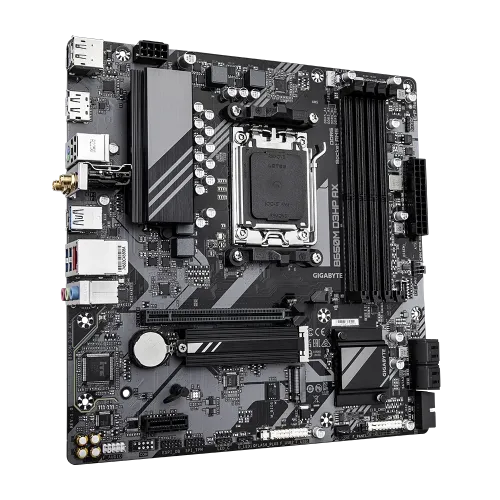

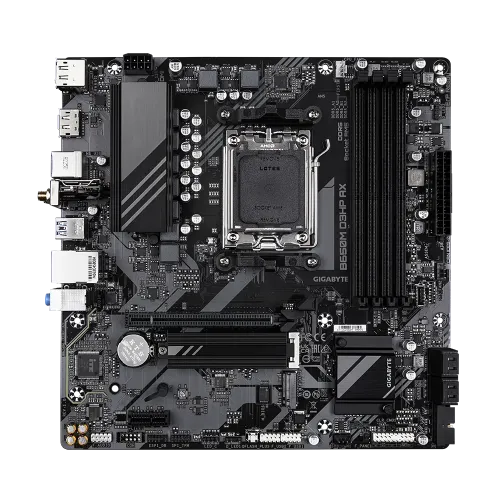

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard

Name: GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
Brand: GIGABYTE
Price: 18900 BDT
Availability: InStock

Model: B650M D3HP AXItem #: gigabyte-b650m-d3hp-ax-motherboard

৳18,900~~৳19,300~~Save 2%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard is the latest platform that will elevate your computer experience. This motherboard's robust design ensures seamless performance for a wide range of applications, and it works with Ryzen 8000 and 7000 Series Processors for Socket AM5. The GIGABYTE B650M D3HP AX, equipped with the newest DDR5 memory technology, can overclock to 7600MHz and accommodate up to 192GB of RAM distributed across 4 DDR5 slots. This ensures smooth multitasking and lightning-fast response. This motherboard provides flexible graphics output choices for improved display setups, whether you're gaming, streaming, or working on multimedia projects. It is equipped with two Display Ports and one HDMI connector. Packed with features designed to maximize performance and connection is the GIGABYTE B650M D3HP AX. Fast and dependable network connections are ensured by its Realtek 2.5GbE LAN for high-speed wired networking and Realtek Wi-Fi 6E RTL8852CE for wireless connectivity. The 5+2+2 Phases Digital VRM Solution delivers unmatched performance and dependable power supply to your components—even when they are under severe loads. Memory speed and bandwidth are further improved by the Dual Channel DDR5 support, which includes 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support. The PCIe 4.0 x4 M.2 Connector raises the bar for storage capacity by providing SuperSpeed storage options for fast data transmission speeds. For even more convenience, the EZ-Latch PCIe x16 Slot with Quick Release Design makes hardware installation and removal simpler. Maintain connectivity and take advantage of swift network speeds with 2.5GbE LAN and Wi-Fi 6E 802.11ax. A large variety of devices and peripherals are compatible with the extended connectivity choices, which include two Display connectors and HDMI connectors. With its various temperature sensors and hybrid fan headers with FAN STOP technology, Smart Fan 6 offers intelligent cooling that maximizes thermal performance while reducing noise. Without requiring the installation of the CPU, RAM, or graphics card, the Q-Flash Plus function makes it easy to update the BIOS, simplifying the procedure for more comfort and assurance. Designed to satisfy the needs of modern computing, the GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard is a powerful solution that provides unmatched performance, connection, and simplicity for both enthusiasts and professionals.

Specifications

Chipset: AMD B650
RAM type: 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 DIMMs
Highlights — Model: B650M D3HP AX
Graphics — Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support; - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; ; ; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.; ; ; Support for up to triple-display at the same time; (Graphics specifications may vary depending on CPU support.)
Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Show all 28 specifications

Highlights — Features: Realtek 2.5GbE LAN & Realtek Wi-Fi 6E RTL8852CE
Memory — Maximum Memory: 192GB
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Connector & Ports — Audio: 3 x Audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
Connector & Ports — USB (s): CPU:; - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support; - 1 x USB 3.2 Gen 1 port on the back panel; - 1 x USB 2.0/1.1 port on the back panel; Chipset:; - 2 x USB 3.2 Gen 1 ports on the back panel; - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Highlights — Graphics Output: 2x Display Port, 1 x HDMI
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Connector & Ports — Display Port (s): 2 x DisplayPorts
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:; - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors;

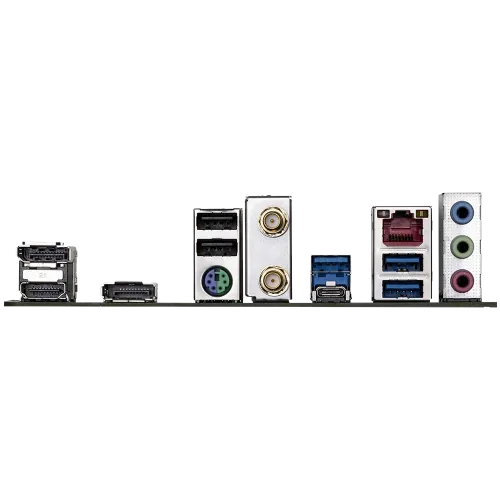

Connector & Ports — Internal I/O Ports: Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 2 x addressable LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors; 1 x PS/2 keyboard/mouse port; 1 x USB Type-C port, with USB 3.2 Gen 1 support; 3 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x HDMI port; 2 x DisplayPorts; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Realtek Wi-Fi 6E RTL8852CE; - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless; (Actual data rate may vary depending on environment and equipment.)
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
