GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard

Name: GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard
Brand: GIGABYTE
Price: 18900 BDT
Availability: InStock

Model: B760M D3HP WIFI6Item #: gigabyte-b760m-d3hp-wifi6-motherboard

৳18,900~~৳19,300~~Save 2%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
Support for DDR5 4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

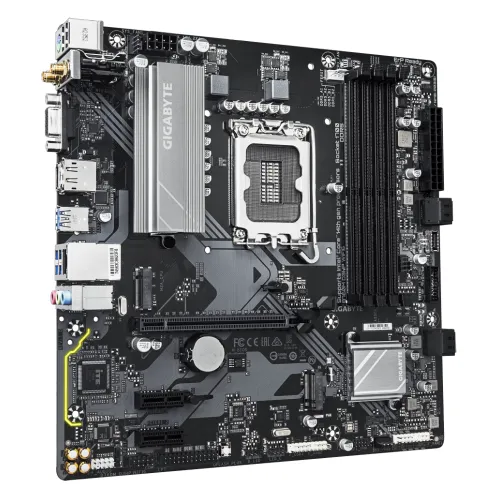

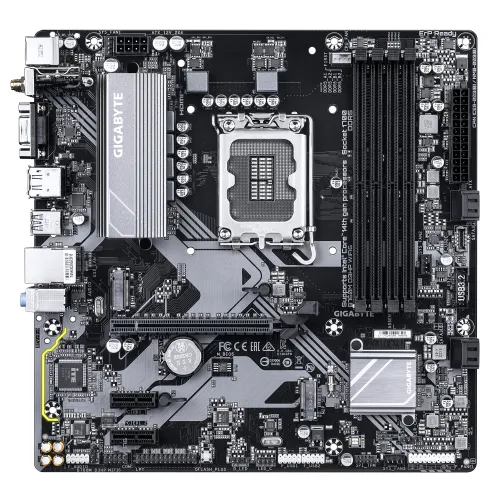

The GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard is a high-performance GIGABYTE WiFi Motherboard built on the Intel B760 chipset, offering full support for 12th, 13th, and 14th Gen Intel Core processors with the LGA1700 socket. Designed in a compact micro-ATX form factor, it supports up to 256GB DDR5 memory with XMP profiles for high-speed tuning, ensuring smooth multitasking and gaming. Storage is future-ready with dual PCIe 4.0 M.2 slots, while connectivity is enhanced by Wi-Fi 6 wireless technology, Gigabit LAN, and versatile I/O including USB-C 5Gb/s, HDMI, DisplayPort, and D-Sub outputs. Its hybrid 4+1+1 phase digital VRM design ensures stable power delivery, while Smart Fan 6 cooling and Q-Flash Plus BIOS update support make system management effortless. Perfect for gamers, creators, and PC builders, the GIGABYTE B760M D3HP WIFI6 DDR5 Motherboard also known as the GIGABYTE 760 Motherboard delivers a balance of speed, reliability, and compact design, making it one of the best DDR5-ready solutions for modern builds.

Buy GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard from the best Motherboard Shop in BD

Specifications

Chipset: Intel B760 Express Chipset
RAM type: Support for DDR5 4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4
Highlights — Model: B760M D3HP WIFI6
Graphics — Graphics: ; Integrated Graphics Processor-Intel® HD Graphics support:; 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; Support for HDMI 2.1 version and HDCP 2.3.; Support for native HDMI 2.1 TMDS compatible ports.; ; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; Support for DisplayPort 1.2 version and HDCP 2.3
Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; * The PCIEX16 slot can only support a graphics card or an NVMe SSD.; ; ; Chipset:; - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Show all 29 specifications

Highlights — Features: Realtek GbE LAN, Wi-Fi 6, BLUETOOTH 5.3
Memory — Maximum Memory: Supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR5, Max 256GB 5600
Connector & Ports — USB (s): Chipset:; - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header; - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); - 2 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
Connector & Ports — D-Sub (s): 1 x D-Sub port
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with CPU
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); - 4 x SATA 6Gb/s connectors

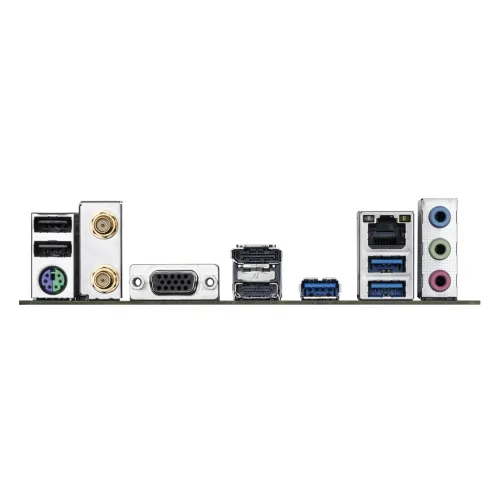

Connector & Ports — Internal I/O Ports: Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x parallel port header; 1 x S/PDIF Out header; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors; 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x DisplayPort; 1 x HDMI port; 3 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 years Warranty
Connector & Ports — Wireless Communication module: Realtek Wi-Fi 6 RTL8851BE; - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 80MHz wireless standard
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
