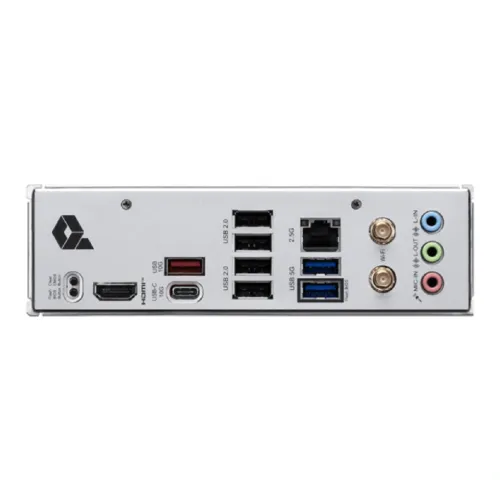

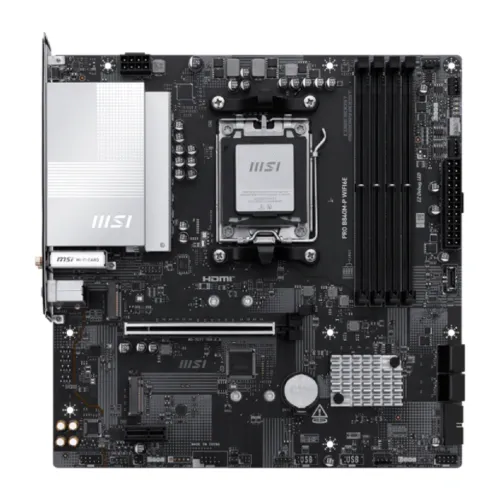

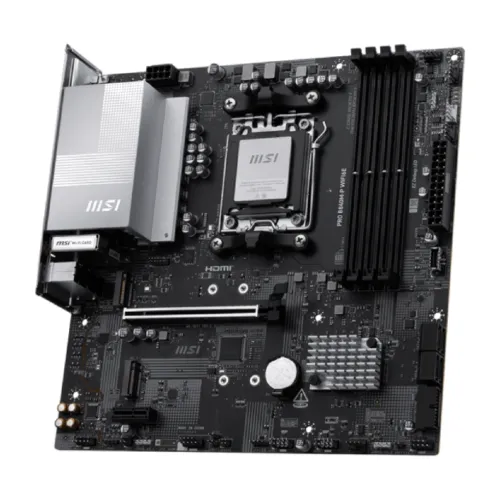

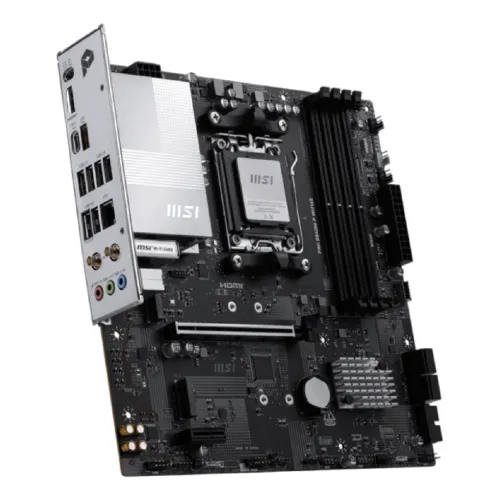

  • MSI PRO B840M-P WIFI6E AM5 mATX Motherboard — image 1 of 5
  • MSI PRO B840M-P WIFI6E AM5 mATX Motherboard — image 2 of 5
  • MSI PRO B840M-P WIFI6E AM5 mATX Motherboard — image 3 of 5
  • MSI PRO B840M-P WIFI6E AM5 mATX Motherboard — image 4 of 5
  • MSI PRO B840M-P WIFI6E AM5 mATX Motherboard — image 5 of 5
Shop all MSI products

MSI PRO B840M-P WIFI6E AM5 mATX Motherboard

Model: PRO B840M-P WIFI6EItem #: msi-pro-b840m-p-wifi6e-motherboard

৳18,900

Out of stockverified

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka
৳60 · 1–2 days
Outside Dhaka
৳120 · 2–4 days

Sold by Micro

Key highlights

  • AMD B840 Chipset
  • 2 M.2 slots
  • Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8000+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only RAM type
  • mATX; 243.84mmx243.84mm Form factor

Overview

The MSI PRO B840M-P WIFI6E motherboard is intended for modern PC builders who require performance, stability, and flexibility in a single compact micro-ATX board. It is based on the AMD B840 chipset and supports the latest AMD Ryzen 9000, 8000, and 7000 series desktop CPUs with socket AM5, making it a future-ready option for both gaming and professional applications. Memory performance is a notable highlight, as it supports up to 256GB of DDR5 across four UDIMM slots with dual-channel design. The MSI PRO B840M-P WIFI6E Motherboard can reach overclocked rates of 8000+ MT/s depending on the CPU and configuration. Support for AMD EXPO makes RAM overclocking easier and more stable. The board's design prioritizes durability and thermal performance, with features such as a 7+2+1 power phase system, expanded heatsinks, and MOSFET thermal pads rated at 7W/mK, which ensure consistent cooling for high-performance applications. The MSI PRO B840M-P WIFI6E Motherboard boasts equally amazing storage with two M.2 slots that enable PCIe 4.0 x4 NVMe SSDs and four SATA 6Gb/s connections, as well as RAID setups for both SATA and M.2 devices. A PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for additional peripherals are among the expansion choices. It has a Realtek 8125D 2.5G LAN and built-in Wi-Fi 6E with Bluetooth 5.3, ensuring high-speed, robust networking in gaming and professional environments. Onboard graphics are supported via HDMI 2.1 at 4K @ 60Hz, depending on the CPU. The MSI PRO B840M-P WIFI6E Motherboard's audio system is driven by the Realtek ALC897, which provides 7.1-channel high-definition audio for immersive entertainment. USB connectivity is diverse, with USB 2.0, USB 3.2 Gen1 5Gbps, and speedier 10Gbps Type-A and Type-C connectors on both the back and front panels. Additional features such as the EZ M.2 Clip, EZ PCIe Clip, and EZ Debug LEDs facilitate construction and debugging. The MSI PRO B840M-P WIFI6E, which supports Windows 11 64-bit, RGB headers, and durable thermal solutions, provides a balanced combination of performance, durability, and user-friendly design for a powerful desktop setup.
