MSI PRO B760M-E DDR4 mATX Motherboard
Model: PRO B760M-E DDR4Item #: msi-pro-b760m-e-ddr4-motherboard
৳13,600৳14,900Save 9%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL B760 Chipset
- 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 4600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) RAM type
- mATX; 200mmx236.16mm Form factor
Overview

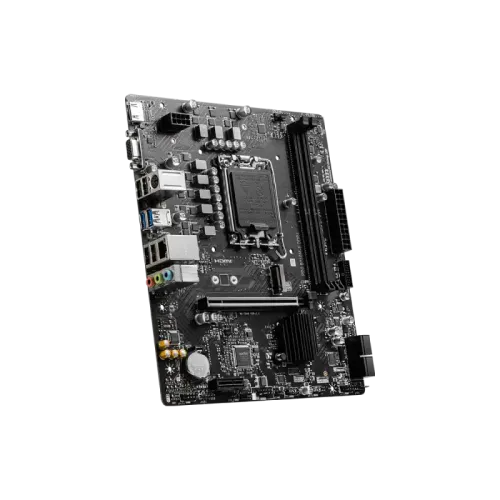

The MSI PRO B760M-E is a micro-ATX motherboard with an LGA 1700 socket that supports 14th, 13th, and 12th-generation Intel Processors. For quicker performance, it supports DDR4 memory and has dual-channel DDR4 4800+MHz (OC) capabilities. Core Boost, a premium layout, and a digital power architecture enable the motherboard to accommodate more cores and give higher performance. Memory Boost, an innovative technology that produces pure data signals for the highest performance, stability, and compatibility, is also incorporated. The MSI PRO B760M-E has PCIe 4.0 and Lightning Gen4 x4 M.2 for a lightning-fast experience. This 14th Gen Motherboard enables faster data transmission rates and enhanced performance for gaming and other high-performance applications. The motherboard has AUDIO BOOST, which delivers studio-quality sound for the most immersive gaming experience. Steel Armor is also incorporated to prevent VGA cards from bending and EMI, resulting in improved performance, stability, and strength.
Buy MSI PRO B760M-E DDR4 mATX Motherboard best Motherboard Shop in BD
Specifications
- Chipset
- INTEL B760
- RAM type
- 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 4600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP)
- Form factor
- mATX; 200mmx236.16mm
- Memory — Type
- DDR4
- Memory — Slots
- 2
- Highlights — Model
- PRO B760M-E DDR4
- Graphics — Graphics
- 1x HDMI; Support HDMI 1.4 with HDR, the maximum resolution of 4K 30Hz; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
- Expansion Slots — PCI
- 1x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to (From CPU); PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Show all 25 specificationsShow fewer
- Highlights — Features
- 1x M.2 slot, Realtek RTL8111H Gigabit LAN
- Memory — Maximum Memory
- 64GB
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High-Definition Audio
- Connector & Ports — Audio
- Audio Connectors
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 2x DDR4, Max 128GB 4800(OC)
- Connector & Ports — USB (s)

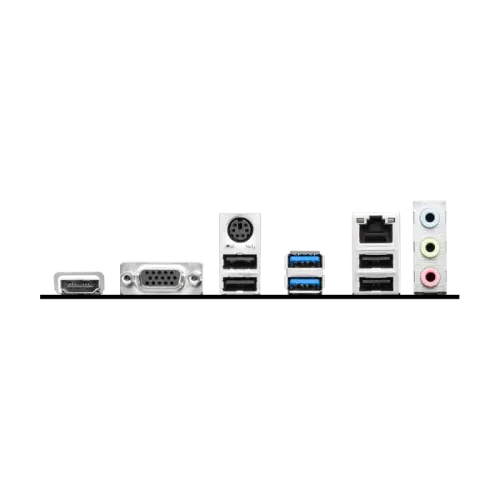

- 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 3.2 Gen1 Type A (Rear); 2x USB 3.2 Gen1 Type A (Front)
- Connector & Ports — VGA (s)
- 1x VGA
- Highlights — Graphics Output
- 1x HDMI, 1x VGA
- Connector & Ports — LAN Port (s)
- Realtek RTL8111H Gigabit LAN
- Basic Information — Supported CPU
- Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA 1700
- Connector & Ports — Supported Storage
- 1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x RGB LED connector(JRGB); 2x USB 2.0 ports; 1x USB 3.2 Gen1 Type A ports
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI PRO B760M-E DDR4 mATX Motherboard |  ASRockASRock B840M-HVS AMD AM5 mATX Motherboard |  GIGABYTEGigabyte B550M K WIFI6E AMD AM4 mATX Motherboard |  GIGABYTEGIGABYTE B550M DS3H R2 mATX AMD Motherboard | |
|---|---|---|---|---|
| Price | ৳13,600 | ৳13,500 | ৳13,500 | ৳13,600 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | MSI | ASRock | GIGABYTE | GIGABYTE |
| RAM type | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 4600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) | Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | mATX; 200mmx236.16mm | Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm; 2oz Copper PCB | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset | INTEL B760 | AMD B840 | AMD B550 | AMD B550 |
| M.2 slots | — | 1 | 1 | 1 |
