MSI PRO B840-P WIFI AMD AM5 ATX Motherboard
Model: PRO B840-P WIFIItem #: msi-pro-b840-p-wifi-motherboard
৳22,900
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B840 Chipset
- 2 M.2 slots
- Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8000+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only* RAM type
- ATX; 243.84mmx304.8mm Form factor
Overview

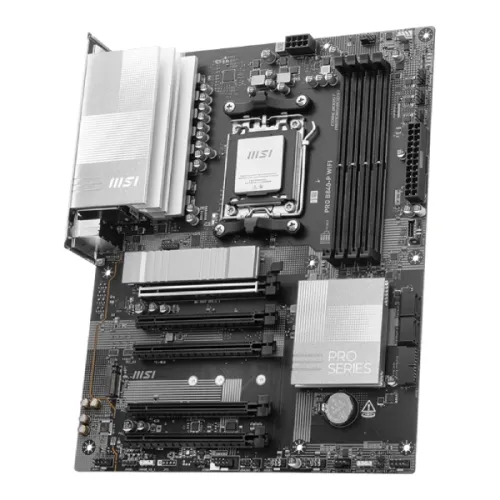

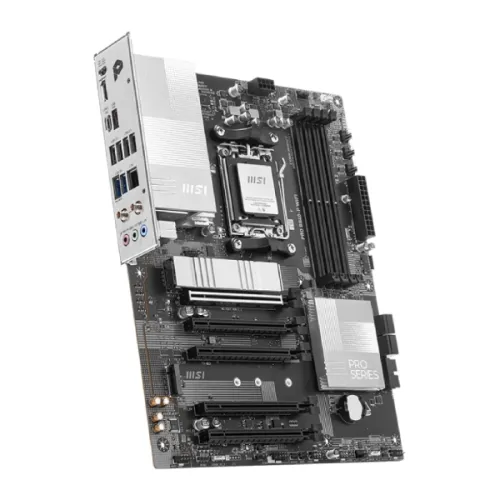

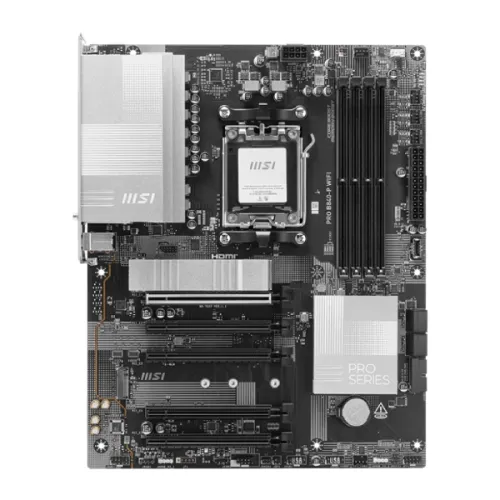

The MSI PRO B840-P WiFi is an AM5 ATX motherboard that supports AMD Ryzen 9000, 8000, and 7000 Series processors. It uses the AM5 socket and the AMD B840 chipset to provide high computing capabilities. It offers exceptional multitasking and responsiveness with support for up to 256GB of DDR5 memory in dual-channel mode and speeds of up to 8000+ MT/s (overclocked). The 6-layer PCB with thickened copper improves performance and durability, while the MSI PRO B840-P WIFI Motherboard's direct 7+2+1 phase power system, P-PAK, Core Boost, and Memory Boost guarantee stability under heavy loads. Extended heatsinks, MOSFET thermal pads, and EZ M.2 Shield Frozr II are all part of the MSI DDR5 motherboard's Frozr Guard cooling technology, which effectively dissipates heat under demanding workloads. The MSI PRO B840-P WIFI AM5 ATX Motherboard offers a variety of high-speed storage solutions with two PCIe 4.0 M.2 slots and four SATA 6G ports that support RAID 0, 1, and 10. A variety of components are compatible with the PCIe 3.0 slots, and the PCIe 4.0 x16 slot offers a lightning-fast gaming experience. Wi-Fi 7 offers lightning-fast networking at up to 5.8Gbps, while 2.5G LAN provides reliable, secure connectivity. Along with a number of USB ports, including USB 10Gbps Type-C and Type-A ports, the MSI PRO B840-P WIFI AM5 ATX Motherboard also has standard RGB LED connectors and Addressable V2 for RGB customization. The Realtek ALC897, which powers the audio, produces 7.1-channel HD audio. The ATX form factor, which was created for Windows 11 64-bit, guarantees compatibility with sophisticated PC configurations. The MSI PRO B840-P WiFi motherboard is enhanced with EZ DIY features like EZ M.2 and PCIe Clips, TPM 2.0 support for security, and HDMI 2.1 for 4K 60Hz displays.
Specifications
- Chipset
- AMD B840
- M.2 slots
- 2
- RAM type
- Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8000+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*
- Form factor
- ATX; 243.84mmx304.8mm
- Memory — Type
- DDR5
- Memory — Slots
- 4x DDR5 UDIMM
- Highlights — Model
- PRO B840-P WIFI
- Expansion Slots — PCI
- 5x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset); PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E1 slot; • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Show all 23 specificationsShow fewer
- Highlights — Features
- 2x M.2 Slot, Realtek 8125D 2.5G LAN, Wi-Fi 7
- Memory — Maximum Memory
- 256GB
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- Basic Information — Audio
- Realtek ALC897; 7.1-Channel High Definition Audio
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 4x DDR5, Dual Channel DDR5 8000+ MT/s (OC), Max 256GB
- Connector & Ports — USB (s)

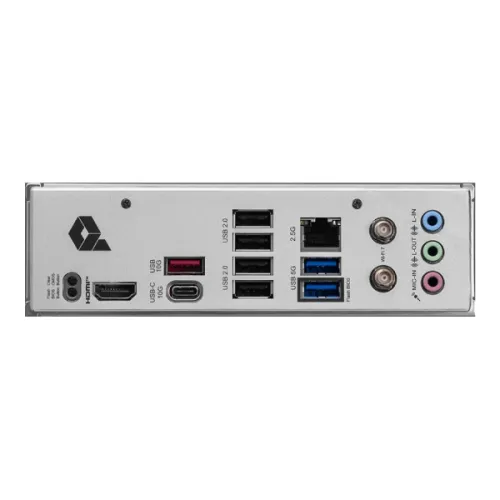

- 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear)
- Highlights — Graphics Output
- 1x HDMI 2.1, maximum resolution of 4K 60Hz
- Connector & Ports — LAN Port (s)
- Realtek 8125D 2.5G LAN
- Basic Information — Supported CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
- Connector & Ports — Supported Storage
- 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices; 4x SATA 6G; M2_2 slot; • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth® 5.4**, MLO, 4KQAM
Compare with similar products

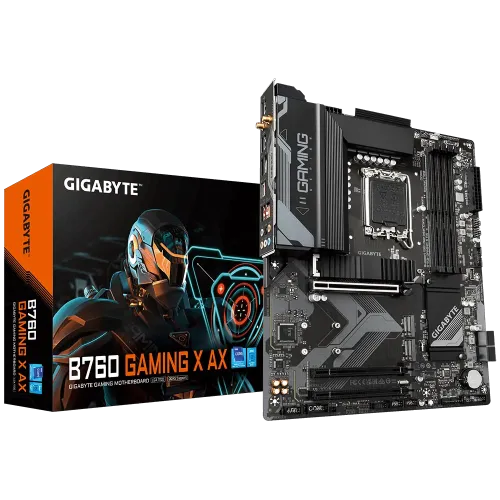

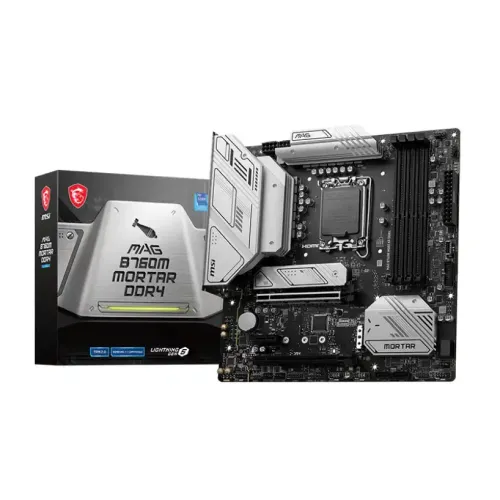

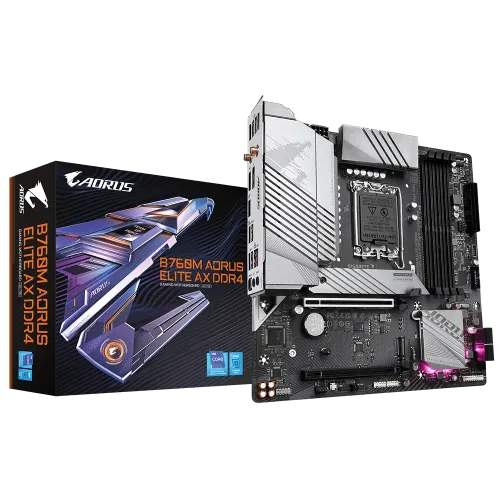

 This itemMSI PRO B840-P WIFI AMD AM5 ATX Motherboard |  MSIMSI MAG B760M MORTAR DDR4 mATX Motherboard |  GIGABYTEGIGABYTE B760M AORUS ELITE AX DDR4 14th & 13th Gen mATX Motherboard |  GIGABYTEGIGABYTE B760 GAMING X AX ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳22,900 | ৳22,900 | ৳23,000 | ৳23,000 |
| Availability | Out of stock | Out of stock | Out of stock | Out of stock |
| Brand | MSI | MSI | GIGABYTE | GIGABYTE |
| M.2 slots | 2 | — | 1 | — |
| RAM type | Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8000+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only* | Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | ATX; 243.84mmx304.8mm | mATX; 243.84mmx243.84mm | Micro ATX Form Factor; 24.4cm x 24.4cm | ATX Form Factor; 30.5cm x 24.4cm |
| Chipset | AMD B840 | INTEL B760 | Intel B760 Express Chipset | Intel B760 Express Chipset |
