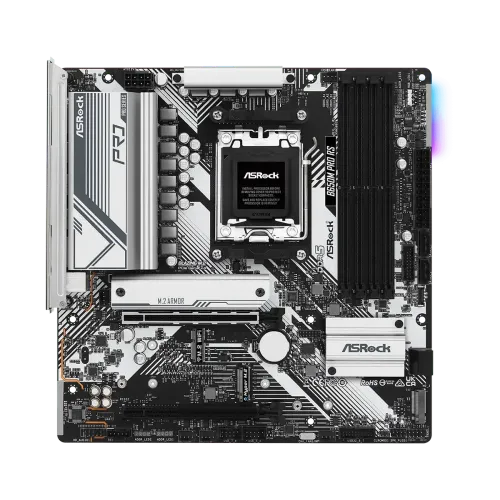

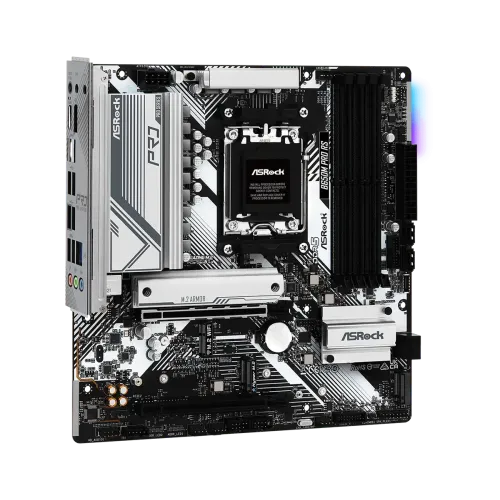

ASRock B650M Pro RS AM5 Micro ATX Motherboard

Name: ASRock B650M Pro RS AM5 Micro ATX Motherboard
Brand: ASRock
Price: 19900 BDT
Availability: OutOfStock

Model: B650M Pro RSItem #: asrock-b650m-pro-rs-am5-motherboard

৳19,900

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
- Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules RAM type
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - 2oz Copper PCB

Overview

The ASRock B650M Pro RS AM5 Micro ATX Motherboard is a powerful and versatile choice for those building a high-performance PC. Designed to support AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series processors, this motherboard delivers exceptional performance for both gaming and demanding computing tasks. It features a robust 8+2+1 power phase with Dr.MOS for stable power delivery, and accommodates up to 4 DDR5 DIMMs, supporting Dual Channel memory speeds up to 7200+ MHz (OC). For expansion, it includes 1 PCIe 4.0 x16 slot, 1 PCIe 3.0 x16 slot, and 1 M.2 Key E slot for WiFi, along with versatile graphics output options through HDMI and DisplayPort. Audio needs are met with the Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio for rich sound quality. Storage options are abundant with 4 SATA3 ports, 1 Blazing M.2 slot (PCIe Gen5 x4), 1 Hyper M.2 slot (PCIe Gen4 x4), and 1 M.2 slot (PCIe Gen4 x2). USB connectivity is extensive, featuring 1 USB 3.2 Gen2 Type-A, 1 USB 3.2 Gen2 Type-C (rear), 1 USB 3.2 Gen1 Type-C (front), and 6 USB 3.2 Gen1 Type-A ports (2 rear, 4 front). Additionally, the Dragon 2.5G LAN provides high-speed network connectivity. The ASRock B650M Pro RS offers a blend of cutting-edge features and reliable performance, making it an excellent choice for building a future-proof system.

Specifications

Chipset: AMD B650
RAM type: - Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form factor: - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - 2oz Copper PCB
Memory — Type: DDR5
Memory — Slots: - 4 x DDR5 DIMM Slots
Highlights — Model: B650M Pro RS
Graphics — Graphics: Integrated AMD RDNA graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Expansion Slots — PCI: CPU:; - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*; Chipset:; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; ; - Supports AMD CrossFire™; - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Show all 27 specifications

Highlights — Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Memory — Maximum Memory: Max. 256GB
Basic Information — BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Basic Information — Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
Connector & Ports — Audio: 3 x Audio jacks
Others — Bundled Software: Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Dragon 2.5G LAN Software; - ASRock Polychrome SYNC*; UEFI; - ASRock Full HD UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash
Others — Special Features: Superb Productivity; - PCIe Gen5 (M.2); - Dual Channel DDR5; Rock-Solid Durability; - 8+2+1 Power Phase, 50A Dr.MOS; - Pre-Installed I/O Shield; Ultrafast Connectivity; - 2.5G LAN; EZ Update; - BIOS Flashback Button; - ASRock Auto Driver Installer
Highlights — Supported RAM: 4x DDR5, up to 256GB, 7200+(OC)
Connector & Ports — USB (s): - 1 x USB 3.2 Gen2 Type-C (Rear); - 1 x USB 3.2 Gen2 Type-A (Rear); - 1 x USB 3.2 Gen1 Type-C (Front); - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front); - 8 x USB 2.0 (4 Rear, 4 Front)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
Basic Information — Supported CPU: Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Connector & Ports — Display Port (s): 1x DisplayPort 1.4
Connector & Ports — Supported Storage: CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*; Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors

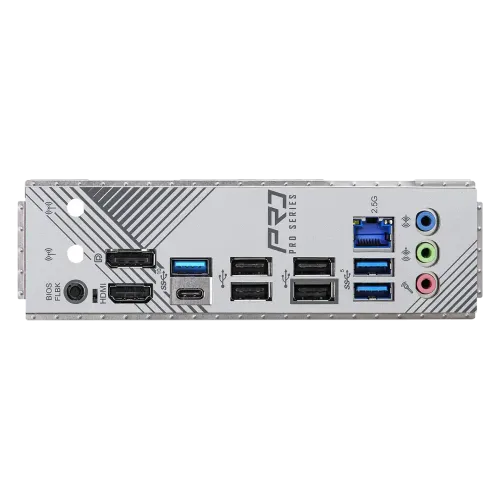

Connector & Ports — Internal I/O Ports: Rear Panel I/O; - 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 2 x USB 3.2 Gen1 Ports; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone; ; Connector; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen1 Header
Warranty Information — Manufacturing Warranty: 3 Years Warranty
Connector & Ports — TPM (Trusted Platform Module ): - 1 x SPI TPM Header

Compare with similar products

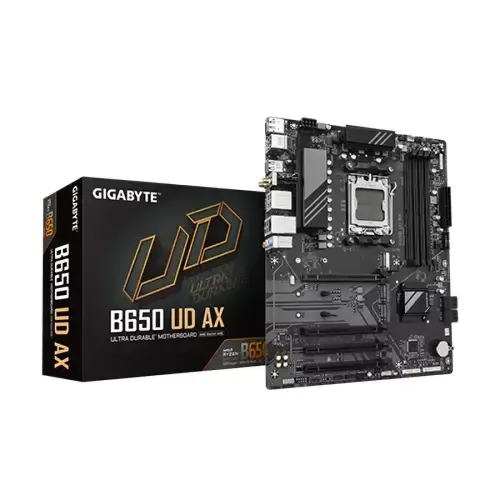

	This itemASRock B650M Pro RS AM5 Micro ATX Motherboard	AsusASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard	MSIMSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard	GIGABYTEGIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
Price	৳19,900	৳19,800	৳19,900	৳19,900
Availability	Out of stock	In stock	In stock	In stock
Brand	ASRock	Asus	MSI	GIGABYTE
RAM type	- Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules	p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II	Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; ; Dual channel memory architecture; ; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; ; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Form factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - 2oz Copper PCB	micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm );	mATX; 220mmx243.84mm	ATX Form Factor; 30.5cm x 24.4cm; ;
Chipset	AMD B650	AMD B650 Chipset	INTEL H810	AMD B650 Chipset; ;
M.2 slots	—	2	1	1
