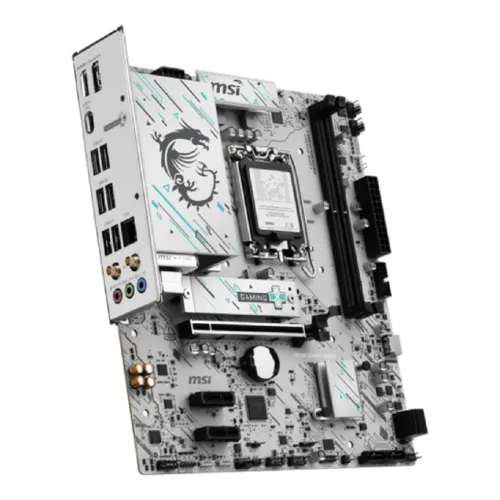

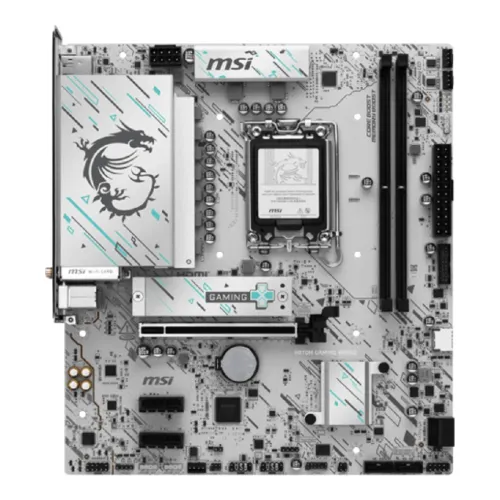

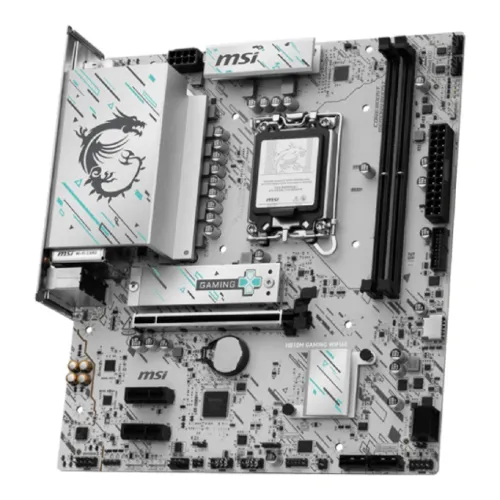

MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard

Name: MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard
Brand: MSI
Price: 19900 BDT
Availability: InStock

Model: H810M GAMING WIFI6EItem #: msi-h810m-gaming-wifi6e-motherboard

৳19,900~~৳20,500~~Save 3%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

INTEL H810 Chipset
1 M.2 slots
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM RAM type
mATX; 220mmx243.84mm Form factor

Overview

The MSI H810M Gaming WIFI6E motherboard is designed for gamers and professionals seeking power, speed, and stability in a small mATX form factor. This board, built with the Intel H810 chipset and supporting Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, provides dependable performance for next-generation computing. It supports dual-channel DDR5 memory up to 128GB, with overclocked rates exceeding 6400 MT/s, and Intel XMP 3.0 makes memory tuning simple. The MSI H810M Gaming WIFI6E motherboard has MSI's Core Boost and Memory Boost technologies, as well as a 6 P-PAK power system and a sturdy 6-layer server-grade PCB for superior power delivery and system reliability. To ensure maximal efficiency, the motherboard includes MSI's Frozr Guard cooling system, which includes an expanded heatsink, MOSFET thermal pads rated at 7W/mK, additional choke thermal pads, and an M.2 Shield Frozr. Gamers will like the PCIe 5.0 x16 slot for high-performance graphics cards and the PCIe 4.0 x4 M.2 slot for ultra-fast storage, which is supported by four SATA 6Gb/s ports. The MSI H810M Gaming WIFI6E motherboard features high-speed connectivity in the form of Realtek 8126 5Gbps LAN and Wi-Fi 6E with Bluetooth 5.3, ensuring seamless and secure networking for gaming, streaming, and professional applications. Onboard HDMI 2.1 and DisplayPort 1.4 can handle resolutions of up to 4K at 60Hz, depending on the CPU. Audio Boost, powered by the Realtek ALC897 codec, delivers immersive 7.1-channel sound quality. The MSI H810M Gaming WIFI6E motherboard's rear I/O features a USB 20Gbps Type-C, multiple USB 5Gbps, USB 2.0, and front-panel choices such as a 10Gbps Type-C. MSI simplifies DIY with EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna, while EZ Debug LEDs and EZ Memory Detection LEDs make troubleshooting a breeze. With RGB headers for customization, Windows 11 support, and a balanced design, the MSI H810M Gaming WIFI6E is a feature-rich motherboard designed for intense gaming and dependable everyday performance.

Specifications

Chipset: INTEL H810
M.2 slots: 1
RAM type: Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM
Form factor: mATX; 220mmx243.84mm
Memory — Type: DDR5
Memory — Slots: 2
Highlights — Model: H810M GAMING WIFI6E
Graphics — Graphics: 1x HDMI; Support HDMI 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Show all 26 specifications

Expansion Slots — PCI: 1x PCI-E x16 slot; 2x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Highlights — Features: 1x M.2, Realtek 8126 5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3
Memory — Maximum Memory: 128GB
Connector & Ports — HDMI: 1x HDMI 2.1
Basic Information — Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Connector & Ports — Audio: 1x Front Audio (JAUD)
Others — Special Features: 4x EZ Debug LED; 1x EZ Memory Detection LED
Highlights — Supported RAM: 2x DDR5 UDIMM, Up to 6400+(OC) MT/s, Max 128GB

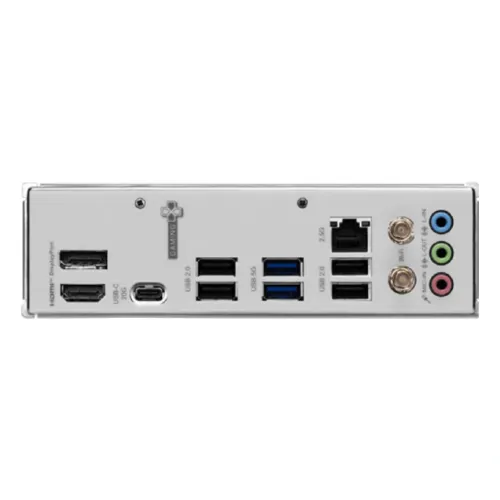

Connector & Ports — USB (s): 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear)
Highlights — Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
Connector & Ports — LAN Port (s): Realtek 8126 5Gbps LAN
Basic Information — Supported CPU: Supports Intel Core Ultra Processors (Series 2); LGA 1851
Connector & Ports — Display Port (s): 1x DisplayPort 1.4
Connector & Ports — Supported Storage: 1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; 4x SATA 6G
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
Warranty Information — Manufacturing Warranty: 3 Year warranty
Connector & Ports — Wireless Communication module: Wi-Fi 6E module; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3, FIPS, FISMA
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)

Compare with similar products

	This itemMSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard	AsusASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard	GIGABYTEGIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard	ASRockASRock B650M Pro RS AM5 Micro ATX Motherboard
Price	৳19,900	৳19,800	৳19,900	৳19,900
Availability	In stock	In stock	In stock	Out of stock
Brand	MSI	Asus	GIGABYTE	ASRock
M.2 slots	1	2	1	—
RAM type	Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM	p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; ; Dual channel memory architecture; ; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; ; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)	- Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form factor	mATX; 220mmx243.84mm	micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm );	ATX Form Factor; 30.5cm x 24.4cm; ;	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - 2oz Copper PCB
Chipset	INTEL H810	AMD B650 Chipset	AMD B650 Chipset; ;	AMD B650
