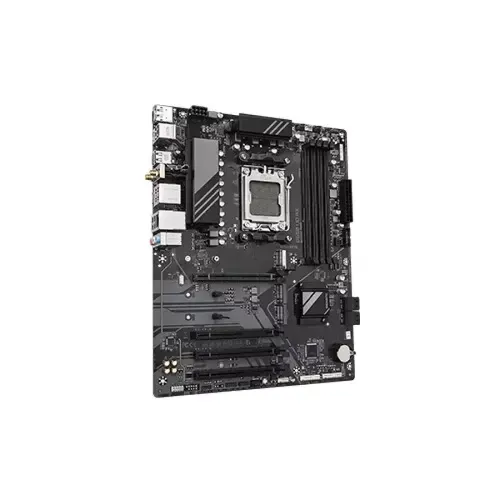

GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard

Name: GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
Brand: GIGABYTE
Price: 19900 BDT
Availability: InStock

Model: B650 UD AXItem #: gigabyte-b650-ud-ax-motherboard

৳19,900~~৳22,000~~Save 10%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset; ;
1 M.2 slots
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; ; Dual channel memory architecture; ; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; ; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) RAM type
ATX Form Factor; 30.5cm x 24.4cm; ;

Overview

The GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard is a high-performance platform designed to support the latest AMD Ryzen 7000, 8000, and 9000 Series processors using the advanced AM5 socket. Built on the AMD B650 chipset and ATX form factor, GIGABYTE AMD Motherboard delivers exceptional speed, connectivity, and expandability for gamers, content creators, and professionals. It supports up to 256 gigabytes of DDR5 memory across four DIMM slots, with speeds reaching up to 8000 megatransfers per second when overclocked. The dual-channel memory architecture is compatible with AMD EXPO and Intel XMP profiles, enabling seamless overclocking and optimized performance for demanding applications. For graphics and expansion, the GIGABYTE AMD ATX Motherboard includes one PCI Express 4.0 x16 slot integrated into the CPU, ideal for high-end graphics cards or NVMe solid-state drives. Additional PCI Express 3.0 x1 slots provide flexibility for add-on cards, although availability may vary depending on the installed processor. Integrated graphics support includes DisplayPort 1.4 and HDMI 2.1 outputs, capable of delivering 4K resolution at high refresh rates for immersive visual experiences. Connectivity is future-ready with Realtek RTL8851 WiFi 6 and Bluetooth 5.0, offering fast and stable wireless networking across dual 2.4 and 5 gigahertz bands. Wired networking is powered by the Realtek RTL8111H Gigabit LAN chip, ensuring reliable and high-speed Ethernet performance. The rear input and output panel features a wide range of ports, including USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-C, USB 2.0, RJ-45 LAN, audio jacks, and legacy PS2 support for keyboard and mouse. Storage options are extensive, with three M.2 connectors supporting PCI Express 5.0 and 4.0 SSDs, depending on CPU compatibility, and four SATA 6 gigabits per second connectors for traditional drives. The GIGABYTE B650 UD AX supports RAID 0, RAID 1, and RAID 10 configurations for both NVMe and SATA devices, offering flexibility in performance and data redundancy. Audio is powered by the Realtek ALC897 codec, delivering high-definition 7.1-channel surround sound. Users can customize audio jack functionality through bundled software, ensuring optimal sound configuration for gaming, media consumption, or professional audio tasks. Internally, the GIGABYTE B650 UD AX includes a comprehensive array of headers and connectors such as RGB and addressable RGB Gen2 LED strip headers, multiple fan and pump headers for advanced cooling setups, USB 3.2 Gen 1 and USB 2.0 headers, TPM support, and a Q-Flash Plus button for easy BIOS updates. The BIOS is a licensed AMI UEFI interface with support for ACPI 5.0, DMI 2.7, and other advanced standards. Software support includes Windows 10 and Windows 11 64-bit editions, bundled Norton Internet Security OEM version, and GIGABYTE Control Center for system monitoring, RGB control, and performance tuning. Hardware monitoring features include voltage, temperature, fan speed, and water cooling flow rate detection, with fail warnings and speed control options. Measuring 30.5 centimeters by 24.4 centimeters, the ATX form factor ensures compatibility with a wide range of cases and cooling solutions. Whether building a next-generation gaming PC, a content creation powerhouse, or a future-ready workstation, the GIGABYTE B650 UD AX delivers the reliability, speed, and flexibility needed for modern computing.

Specifications

Chipset: AMD B650 Chipset; ;
M.2 slots: 1
RAM type: Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; ; Dual channel memory architecture; ; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; ; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Form factor: ATX Form Factor; 30.5cm x 24.4cm; ;
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: B650 UD AX
Graphics — Graphics: Integrated Graphics Processor:; ; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; ; * Support for DisplayPort 1.4 version.; ; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; ; * Support for HDMI 2.1 version and HDCP 2.3.; ; ** Support for native HDMI 2.1 TMDS compatible ports.; ; (Graphics specifications may vary depending on CPU support.)

Show all 28 specifications

Highlights — Feature: BT 5.0, WIFI 6, Realtek RTL8111H GbE LAN
Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; ; - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode; ; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; ; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; ; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; ; 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1; ; * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used.; ; 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Memory — Maximum Memory: supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; ; Use of licensed AMI UEFI BIOS; ; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; ; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; ; ALC897; ; High Definition Audio; ; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; ; Support for Windows 11 64-bit; Support for Windows 10 64-bit; ; Support for Q-Flash; Support for Q-Flash Plus; ; I/O Controller: iTE I/O Controller Chip; ; H/W Monitoring; Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection; Fan fail warning; Fan speed control; * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install

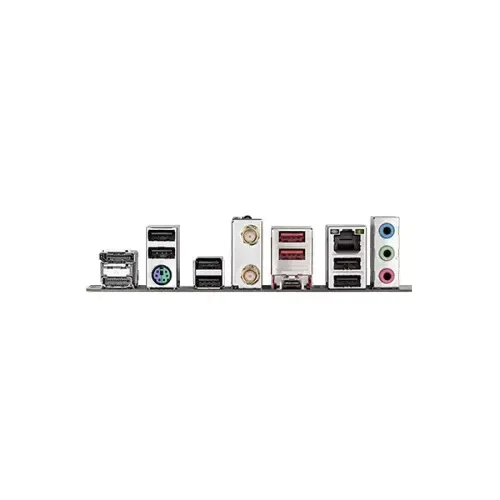

Connector & Ports — USB (s): CPU:; ; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; ; - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support; ; CPU+USB 2.0 Hub:; ; - 4 x USB 2.0/1.1 ports on the back panel; ; Chipset:; ; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; ; - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header; ; - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header); ; Chipset+USB 2.0 Hub:; ; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1 x DisplayPort, 1 x HDMI port
Connector & Ports — LAN Port (s): Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps); ;
Basic Information — Supported CPU: AMD Socket AM5, support for:; ; AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; ; - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 5.0 x4/x2 SSDs; ; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; ; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; ; 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:; ; - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x2 SSDs; ; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs; ; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs; ; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support); ; 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; ; 1 x 8-pin ATX 12V power connector; ; 1 x CPU fan header; ; 1 x CPU fan/water cooling pump header; ; 2 x system fan headers; ; 1 x system fan/water cooling pump header; ; 1 x addressable RGB Gen2 LED strip header; ; 1 x RGB LED strip header; ; 3 x M.2 Socket 3 connectors; ; 4 x SATA 6Gb/s connectors; ; 1 x front panel header; ; 1 x front panel audio header; ; 1 x USB Type-C header, with USB 3.2 Gen 1 support; ; 1 x USB 3.2 Gen 1 header; ; 3 x USB 2.0/1.1 headers; ; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); ; 1 x Q-Flash Plus button; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Realtek RTL8851 WIFI 6 module; ; - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band; ; - Support for 11ac wireless standard; ; BT 5.0
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard	AsusASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard	MSIMSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard	ASRockASRock B650M Pro RS AM5 Micro ATX Motherboard
Price	৳19,900	৳19,800	৳19,900	৳19,900
Availability	In stock	In stock	In stock	Out of stock
Brand	GIGABYTE	Asus	MSI	ASRock
M.2 slots	1	2	1	—
RAM type	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; ; Dual channel memory architecture; ; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; ; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)	p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II	Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM	- Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form factor	ATX Form Factor; 30.5cm x 24.4cm; ;	micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm );	mATX; 220mmx243.84mm	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - 2oz Copper PCB
Chipset	AMD B650 Chipset; ;	AMD B650 Chipset	INTEL H810	AMD B650
