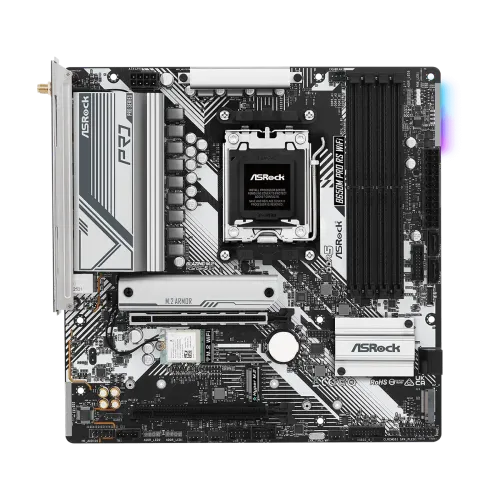

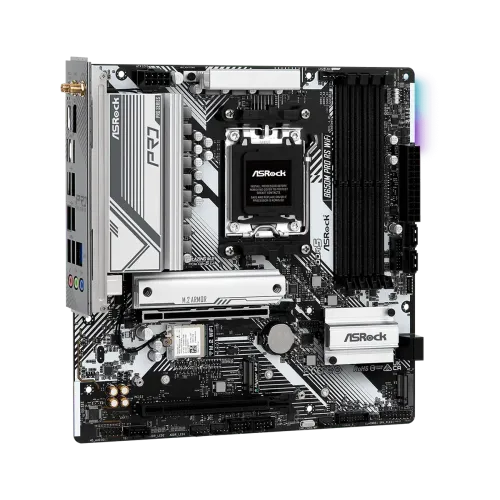

ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard

Name: ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard
Brand: ASRock
Price: 20000 BDT
Availability: OutOfStock

Model: B650M Pro RS WiFiItem #: asrock-b650m-pro-rs-wifi-am5-motherboard

৳20,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
- Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules RAM type
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - 2oz Copper PCB

Overview

The ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard is a high-performance motherboard that supports AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series processors. It is equipped with an 8+2+1 Power Phase VRM design, featuring Dr.MOS technology for stable and efficient power delivery, making it ideal for demanding tasks like gaming and content creation. The motherboard supports up to four DDR5 DIMMs in dual-channel mode, with speeds reaching up to 7200+ MHz when overclocked, ensuring exceptional memory performance. It offers 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x16 slot, allowing for flexible graphics cards and peripheral installations. The board also provides versatile display options through HDMI and DisplayPort outputs. On the audio front, it includes the Realtek ALC897 7.1 Channel HD Audio Codec and Nahimic Audio, delivering an immersive sound experience. Storage options are plentiful with 4 SATA3 ports, a Blazing M.2 slot (PCIe Gen5 x4), a Hyper M.2 slot (PCIe Gen4 x4), and an additional M.2 slot (PCIe Gen4 x2), catering to both high-speed NVMe SSDs and traditional SATA drives. Connectivity is robust with a Dragon 2.5G LAN for fast wired networking, along with 802.11ax Wi-Fi 6E and Bluetooth for seamless wireless connections. The motherboard also features a variety of USB ports, including 1 USB 3.2 Gen2 Type-A and Type-C port at the rear, a USB 3.2 Gen1 Type-C port at the front, and 6 USB 3.2 Gen1 Type-A ports (2 rear, 4 front), providing ample options for connecting peripherals. Overall, the ASRock B650M Pro RS WiFi is a feature-rich motherboard that delivers excellent performance, making it a strong choice for building a high-end PC.

Specifications

Chipset: AMD B650
RAM type: - Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form factor: - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - 2oz Copper PCB
Memory — Type: DDR5
Memory — Slots: - 4 x DDR5 DIMM Slots
Highlights — Model: B650M Pro RS WiFi
Graphics — Graphics: Integrated AMD RDNA graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Expansion Slots — PCI: CPU:; - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*; Chipset:; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; ; - Supports AMD CrossFire™; - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Show all 28 specifications

Highlights — Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Wi-Fi 6E
Memory — Maximum Memory: Max. 256GB
Basic Information — BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Basic Information — Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
Connector & Ports — Audio: 3 x Audio jacks
Others — Bundled Software: Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Dragon 2.5G LAN Software; - ASRock Polychrome SYNC*; UEFI; - ASRock Full HD UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash
Others — Special Features: Superb Productivity; - PCIe Gen5 (M.2); - Dual Channel DDR5; Rock-Solid Durability; - 8+2+1 Power Phase, 50A Dr.MOS; - Pre-Installed I/O Shield; Ultrafast Connectivity; - 2.5G LAN; EZ Update; - BIOS Flashback Button; - ASRock Auto Driver Installer
Highlights — Supported RAM: 4x DDR5, up to 256GB, 7200+(OC)
Connector & Ports — USB (s): - 1 x USB 3.2 Gen2 Type-C (Rear); - 1 x USB 3.2 Gen2 Type-A (Rear); - 1 x USB 3.2 Gen1 Type-C (Front); - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front); - 8 x USB 2.0 (4 Rear, 4 Front)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
Basic Information — Supported CPU: Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Connector & Ports — Display Port (s): 1x DisplayPort 1.4
Connector & Ports — Supported Storage: CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*; Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors

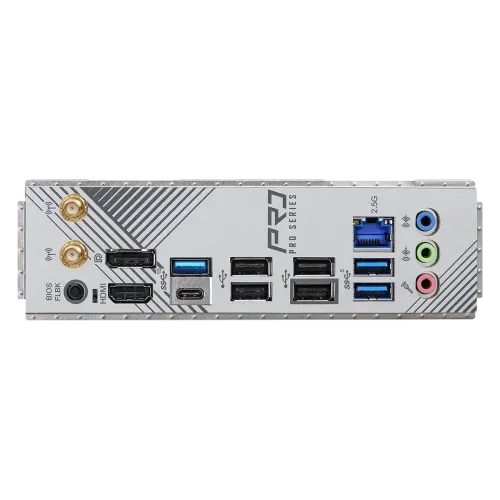

Connector & Ports — Internal I/O Ports: Rear Panel I/O; - 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 2 x USB 3.2 Gen1 Ports; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone; ; Connector; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen1 Header
Warranty Information — Manufacturing Warranty: 3 Years Warranty
Connector & Ports — Wireless Communication module: - 802.11ax Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax; - Supports Dual-Band 2x2 with extended 6GHz band* support; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.2 + High speed class II; - Supports MU-MIMO
Connector & Ports — TPM (Trusted Platform Module ): - 1 x SPI TPM Header

Compare with similar products

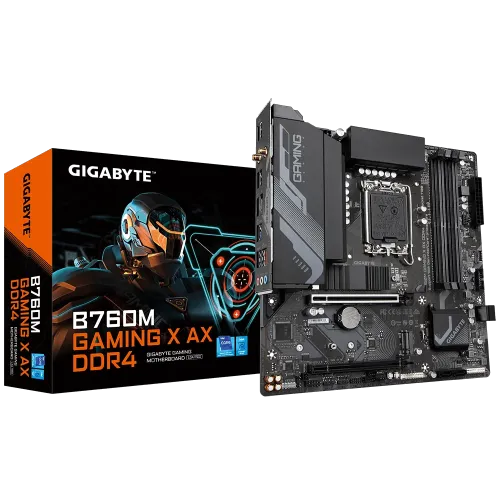

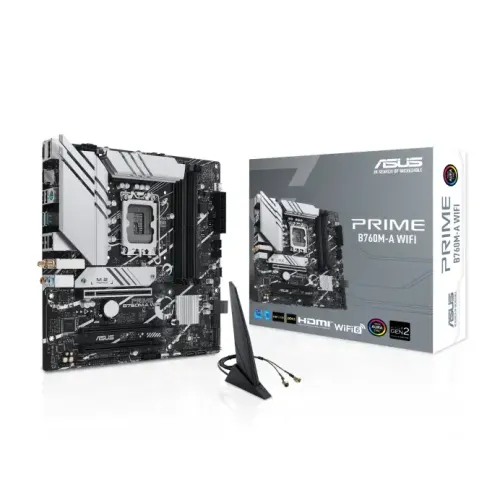

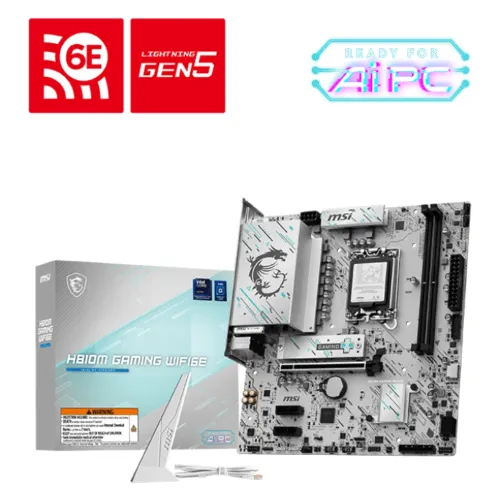

	This itemASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard	MSIMSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard	AsusAsus PRIME B760M-A WIFI mATX Motherboard	GIGABYTEGIGABYTE B760M GAMING X AX DDR4 mATX Motherboard
Price	৳20,000	৳19,900	৳20,000	৳20,000
Availability	Out of stock	In stock	Out of stock	Out of stock
Brand	ASRock	MSI	Asus	GIGABYTE
RAM type	- Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules	Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM	DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/4800MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II;	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - 2oz Copper PCB	mATX; 220mmx243.84mm	mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )	Micro ATX Form Factor; 24.4cm x 24.4cm
Chipset	AMD B650	INTEL H810	Intel B760 Chipset	Intel B760 Express Chipset
M.2 slots	—	1	—	1
